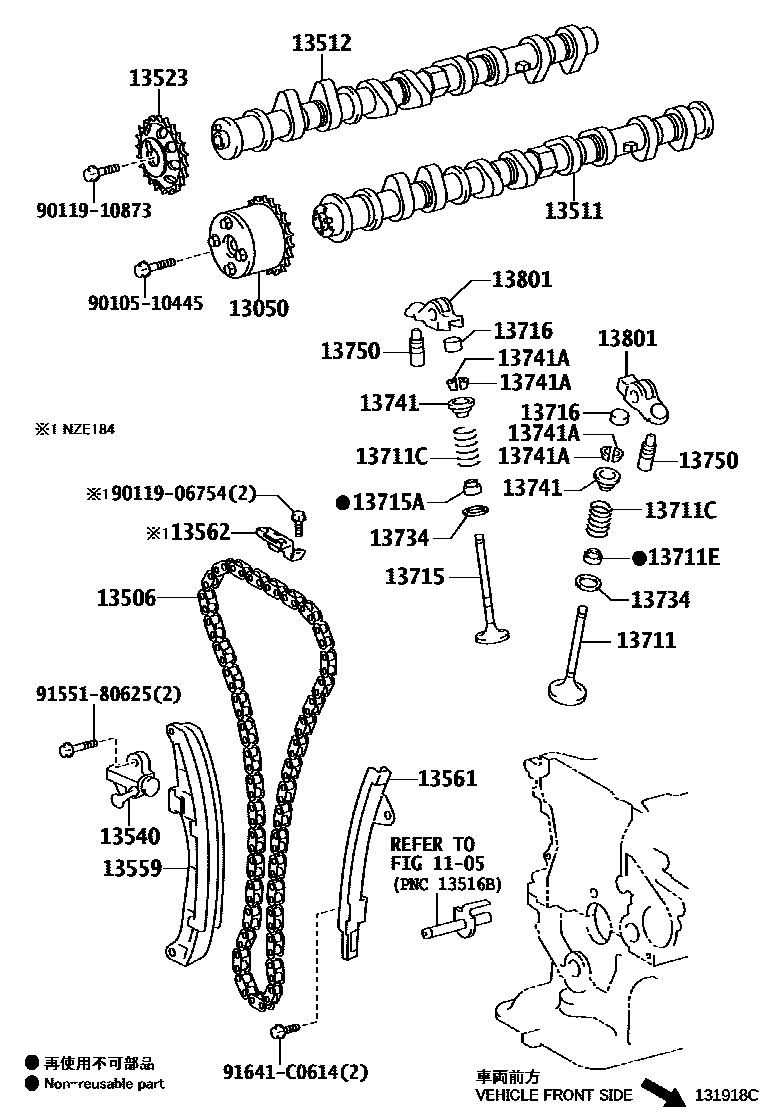

CAMSHAFT & VALVE

0001 1 0002 1 0003 1 0004 1

1105

13050GEAR ASSY, CAMSHAFT TIMING

main13050-21061i1NZFE..NZE18#¥16,700201208-201503

main13050-37020i2ZRFAE..ZRE186¥26,500201208-201302

sub13050-37050¥16,700

main13050-37040i2ZRFXE..ZWE186¥16,600201604

main13050-37050i2ZRFAE..ZRE186¥16,700201302-201503

main13050-47030i8NRFTS..NRE185¥18,400201503

13506CHAIN SUB-ASSY

main13506-21061i1NZFE..NZE18#¥10,000201208-201503

main13506-37050i2ZRFAE..ZRE186¥9,900201208-201503

main13506-37070i2ZRFXE..ZWE186¥10,400201604

main13506-47040i8NRFTS..NRE185¥11,500201503

13511CAMSHAFT

main13501-21052i1NZFE..NZE184¥19,700201208-201503

main13501-21080i1NZFE..NZE181¥19,700201208-201503

main13501-37030i2ZRFXE..ZWE186¥23,700201604

main13501-47070i8NRFTS..NRE185¥19,700201503

13512CAMSHAFT, NO.2

main13502-21042i1NZFE..NZE184¥19,700201208-201503

main13502-21050i1NZFE..NZE181¥19,700201208-201503

main13502-37080i2ZRFXE..ZWE186¥23,700201604

main13502-47060i8NRFTS..NRE185¥19,700201503

13523GEAR OR SPROCKET, CAMSHAFT TIMING

main13523-22020i1NZFE..NZE18#¥4,270201208-201503

13540TENSIONER ASSY, CHAIN, NO.1

main13540-21020i1NZFE..NZE18#¥3,220201208-201503

main13540-37030i2ZRFAE..ZRE186¥2,690201208-201503

main13540-47050i8NRFTS..NRE185¥5,100201503-201601

sub13540-47060¥3,550

main13540-47060i8NRFTS..NRE185¥3,550201602

13559SLIPPER, CHAIN TENSIONER

main13559-0Y010i8NRFTS..NRE185¥2,730201503

main13559-21010i1NZFE..NZE18#¥3,940201208-201311

sub13559-21030¥3,280

main13559-21030i1NZFE..NZE18#¥3,280201311-201809

sub13559-21031¥2,480

main13559-37010i2ZRFAE..ZRE186¥4,000201208-201501

sub13559-37050¥2,510

main13559-37050i2ZR#..ZRE186,ZWE186¥2,510201502-201503

13561DAMPER, CHAIN VIBRATION, NO.1

main13561-21020i1NZFE..NZE18#¥2,090201208-201503

main13561-37010i2ZRFAE..ZRE186¥2,070201208-201306

sub13561-37040¥1,720

main13561-37040i2ZRFAE..ZRE186¥1,720201306-201807

sub13561-37060¥1,300

main13561-37050i2ZRFXE..ZWE186¥2,090201604

13562DAMPER, CHAIN VIBRATION, NO.2

main13562-21010i1NZFE..NZE184¥1,060201208-201503

main13562-37020i2ZRFXE..ZWE186¥1,060201604

13711VALVE, INTAKE

main13711-21040i1NZFE..NZE18#¥1,420201208-201503

main13711-37020i2ZRFAE..ZRE186¥1,420201208-201503

main13711-47010i8NRFTS..NRE185¥1,410201503

13711CSPRING, COMPRESSION(FOR OUTER)

main90501-29060i1NZFE..NZE181¥200201208-201503

main90501-30035i8NRFTS..NRE185¥220201503

main90501-30036i8NRFTS..NRE185¥220201503

main90501-32053i1NZFE..NZE184¥200201208-201503

13711ESEAL, INTAKE VALVE STEM OIL

main90913-02101i1NZFE..NZE18#¥270201208-201503

main90913-02126i8NRFTS..NRE185¥270201503

13715VALVE, EXHAUST

main13715-21040i1NZFE..NZE18#¥1,980201208-201503

main13715-37030i2ZR#..ZRE186,ZWE186¥1,980201208-201503

main13715-47040i8NRFTS..NRE185¥2,170201503

13715ASEAL, EXHAUST VALVE STEM OIL

main90913-02112i1NZFE..NZE18#¥270201208-201503

main90913-02127i8NRFTS..NRE185¥270201503-201710

main90913-02131i8NRFTS..NRE185¥370201711

13716CAP, VALVE STEM

main13716-75020i1NZFE,8NRFTS..NRE185,NZE18#¥70201208-201503

13734SEAT, VALVE SPRING

main13734-62020i2ZR#..ZRE186,ZWE186¥60201208-201503

13741RETAINER, VALVE SPRING

main13741-20021i1NZFE..NZE18#¥220201208-201503

main13741-20021i2ZRFAE..ZRE186¥220201405-201408

main13741-36010i2ZR#..ZRE186,ZWE186¥160201408-201503

main13741-36010i2ZRFAE..ZRE186¥160201405-201408

13741ALOCK, VALVE SPRING RETAINER

main90913-03028i2ZRFAE..ZRE186¥270201208-201503

13750ADJUSTER ASSY, VALVE LASH

main13750-21010i1NZFE..NZE18#¥850201208-201703

main13750-36020i8NRFTS..NRE185¥850201503

main13750-75020i2ZRFAE..ZRE186¥930201208-201408

13801ARM SUB-ASSY, VALVE ROCKER, NO.1

main13801-23011i2ZRFAE..ZRE186¥1,990201208-201404

main13801-36020i2ZRFAE..ZRE186¥2,090201405-201503

main13801-47010i1NZFE..NZE18#¥2,510201208-201704

sub13801-36020¥2,090

9010510445

main90105-10445¥120

9011906754

main90119-06754¥90

9011910873

main90119-10873¥120

9155180625

main91551-80625¥60

91641C0614

main91641-C0614¥70

26 parts on this diagram · 4 diagrams in section
