CRANKSHAFT & PISTON

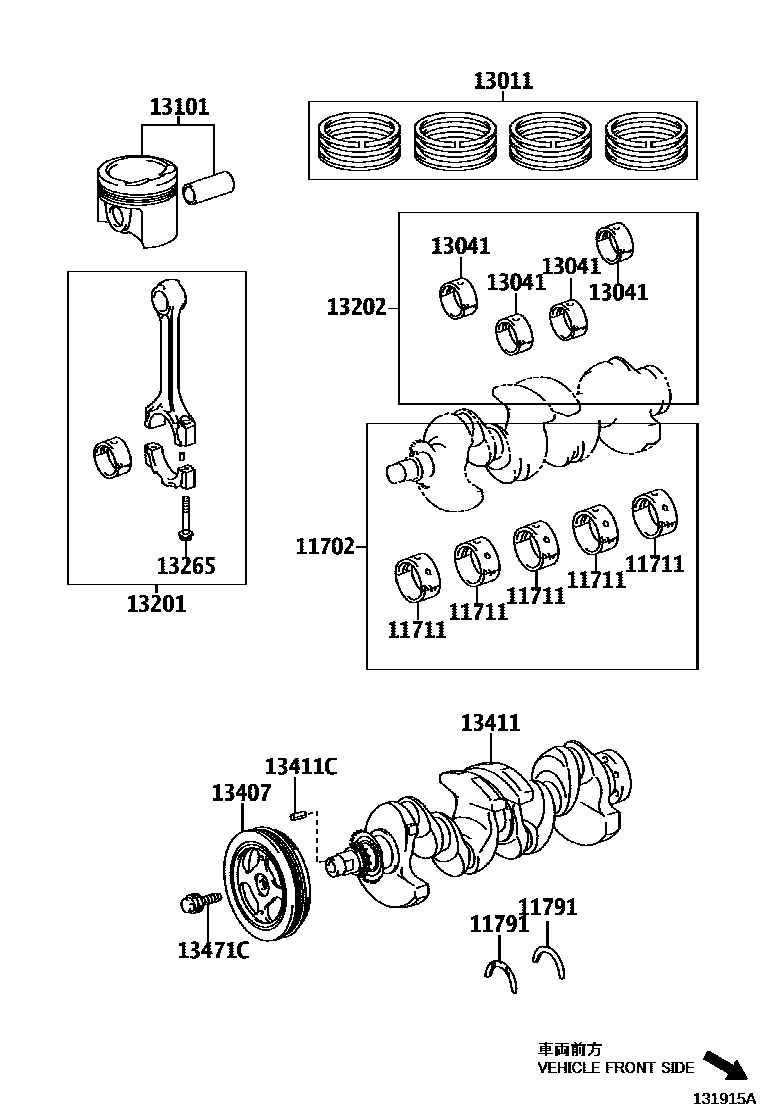

Parts diagram
11702BEARING SET, CRANKSHAFT
main11704-21031i201208-201308
main11704-21032i201308-201401
main11704-21033i201401-201503
11711BEARING, CRANKSHAFT
main11701-21031-01×5i201208-201308
main11701-21031-02×5i201208-201308
main11701-21031-03×5i201208-201308
main11701-21031-04×5i201208-201308
main11701-21032-01×5i201308-201312
main11701-21032-02×5i201308-201312
main11701-21032-03×5i201308-201312
main11701-21032-04×5i201308-201312
main11701-21033-01×5i201503
main11701-21033-02×5i201401-201503
main11701-21033-03×5i201401-201503
main11701-21033-04×5i201401-201503
main11701-37020-01×5i201208-201304
main11701-37020-02×5i201208-201304
main11701-37020-03×5i201208-201304
main11701-37020-04×5i201208-201304
main11701-37021-01×5i201503
main11701-37021-02×5i201304-201503
main11701-37021-03×5i201304-201503
main11701-37021-04×5i201304-201503
main11701-47012-01×5i201503-201612
main11701-47012-02×5i201503-201612
main11701-47012-03×5i201503-201612
main11701-47012-04×5i201503-201612
main11701-47013-01×5i201701-201801
main11701-47013-02×5i201701-201801
main11701-47013-03×5i201701-201801
main11701-47013-04×5i201701-201801
main11701-47032-01×5i201802
main11701-47032-02×5i201802
main11701-47032-03×5i201802
main11701-47032-04×5i201802
11791WASHER, CRANKSHAFT THRUST, UPPER
main11791-22020×2i201208-201310
main11791-37010×2i201503
main11791-47010×2i201503-201612
main11791-47011×2i201701
main11792-22020×2i201208-201310
main11792-37010×2i201310-201503
main11793-22020×2i201208-201310
main11793-37010×2i201503
13011RING SET, PISTON
main13011-21091i201208-201503
main13011-37180i201208-201409
main13011-37260i201604-201805
main13011-37300i201503-201805
main13011-47110i201503-201801
main13011-47130i201802
sub13011-47131
13041BEARING, CONNECTING ROD
main13041-21022-01×4i201208-201308
sub13041-21023
main13041-21022-02×4i201208-201308
sub13041-21023
main13041-21022-03×4i201208-201308
sub13041-21023
main13041-21033-01×4i201308-201503
main13041-21033-02×4i201308-201503
main13041-21033-03×4i201503
main13041-37010-01×4i201208-201503
main13041-37010-02×4i201503
main13041-37010-03×4i201503
main13041-47040-01×4i201503-201612
main13041-47040-02×4i201503-201612
main13041-47040-03×4i201503-201612
main13041-47041-01×4i201701
main13041-47041-02×4i201701
main13041-47041-03×4i201701
13101PISTON SUB-ASSY, W/PIN
main13101-21120×4i201503
main13101-21140×4i201208-201503
main13101-37110×4i201208-201409
main13101-37240×4i201604
main13101-37300×4i201409-201503
main13101-47150×4i201503
13201ROD SUB-ASSY, CONNECTING
main13201-09A30×4i201208-201503
main13201-29735×4i201208-201308
main13201-29736×4i201308-201401
main13201-29737×4i201401-201503
main13201-29757×4i201704
main13201-39185×4i201208-201503
main13201-49125×4i201503-201611
main13201-49126×4i201611
13202BEARING SET, CONNECTING ROD
main13204-21022i201208-201308
sub13204-21023
main13204-21033i201308-201503
13265BOLT, CONNECTING ROD
main13265-21020×8i201208-201503
main13265-22020×8i201503
sub13265-22040
main13265-47010×8i201503
13407DAMPER SUB-ASSY, CRANKSHAFT
main13407-21032i201503
13411CRANKSHAFT
main13401-0T061i201312-201503
main13401-21020i201503
main13401-37020i201208-201309
main13401-37021i201309-201503
main13401-47100i201503
main13401-21050i201208-201503
13411CPIN, STRAIGHT(FOR CRANKSHAFT)
main90250-03095i201605
main90254-03025i201208-201503
13471PULLEY, CRANKSHAFT
main13470-37041i201310-201503
main13470-37042i201709
main13470-37050i201208-201310
main13470-37060i201604
main13470-47100i201503
sub13470-0Y050
13471CBOLT(FOR CRANKSHAFT PULLEY SET)
main90119-12345i201208-201503
main90119-14106i201503-201504
main90119-14175i201505-201805

14 parts on this diagram · 4 diagrams in section
