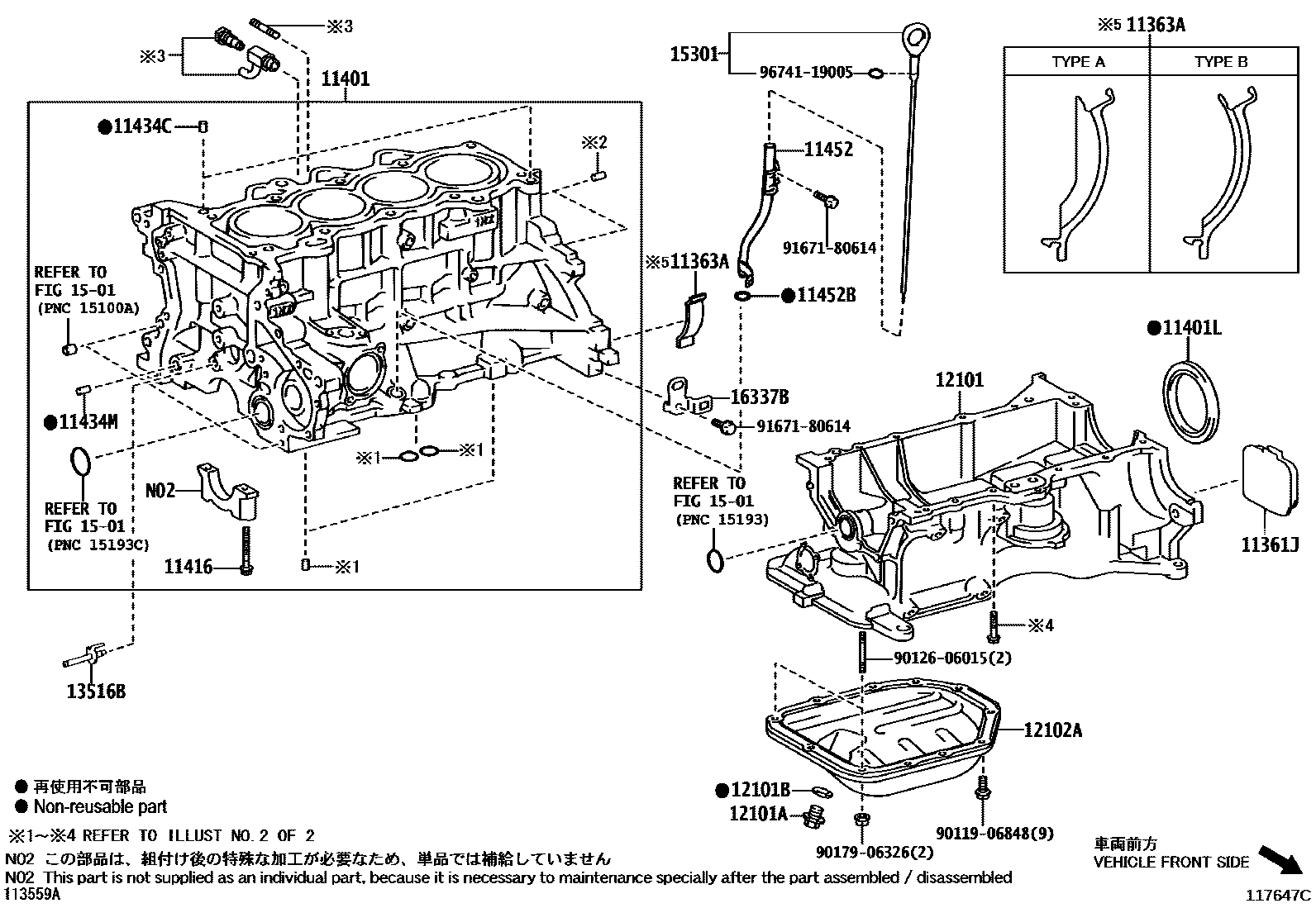

CYLINDER BLOCK

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1

11361JCOVER, FLYWHEEL HOUSING UNDER

main11361-21011i1NZFE,8NRFTS..NRE185,NZE18#¥490201208-201503

11363ACOVER, FLYWHEEL HOUSING SIDE

main11363-21010i1NZFE..NZE18#¥350201208-201503

main11363-33010i2ZR#..ZRE186,ZWE186¥200201208-201503

main11363-33010i2ZRFAE..ZRE186¥200201208-201503

11401BLOCK SUB-ASSY, CYLINDER

main11401-29868i1NZFE..NZE18#¥182,000201208-201512

sub11401-80882¥114,000

main11401-80882i1NZFE..NZE18#¥114,000201512

main11410-09455i2ZRFAE..ZRE186¥206,000201208-201503

sub11410-09456

main11410-39057i2ZRFAE..ZRE186¥206,000201208-201503

sub11410-39245¥142,000

main11410-39057i2ZR#..ZRE186,ZWE186¥206,000201503-201612

sub11410-39245¥142,000

main11410-39245i2ZR#..ZRE186,ZWE186¥142,000201612

sub11410-39246¥129,000

main11410-49065i8NRFTS..NRE185¥108,000201503

11401LSEAL, ENGINE REAR OIL

main90311-75019i1NZFE..NZE18#¥1,390201208-201603

sub90311-75022¥1,390

main90311-75022i1NZFE..NZE18#¥1,390201604

main90311-78002i2ZRFAE..ZRE186¥2,020201208-201407

main90311-78008i2ZR#..ZRE186,ZWE186¥1,510201408-201503

11416BOLT(FOR CRANKSHAFT BEARING CAP SET)

main90910-02125i1NZFE..NZE18#¥220201208-201503

sub90910-02207¥160

main90910-02163i2ZRFAE..ZRE186¥190201208-201503

11434CPIN, STRAIGHT (FOR CYLINDER HEAD SET)

main90250-04097i2ZRFAE..ZRE186¥50201208-201503

main90250-08120i1NZFE..NZE18#¥140201208-201503

11434MPIN, STRAIGHT(FOR CHAIN TENSIONER)

main90250-10030i1NZFE..NZE18#¥160201208-201503

11452GUIDE, OIL LEVEL GAGE

main11452-21030i1NZFE..NZE18#¥1,300201208-201503

main11452-37011i2ZRFAE..ZRE186¥1,360201208-201503

main11452-47030i8NRFTS..NRE185¥740201503

11452BRING, O(FOR OIL LEVEL GAGE GUIDE)

main96721-19010i8NRFTS..NRE185¥190201208-201503

main96741-19010i8NRFTS..NRE185¥250201503-201602

12101PAN SUB-ASSY, OIL

main12111-21033i1NZFE..NZE184¥42,200201208-201503

main12111-21080i1NZFE..NZE181¥55,700201208-201704

sub12111-21100¥42,200

main12111-21100i1NZFE..NZE181¥42,200201704

12101APLUG(FOR OIL PAN DRAIN)

main90341-12012i2ZR#..ZRE186,ZWE186¥160201208-201503

12101BGASKET(FOR OIL PAN DRAIN PLUG)

main90430-12031i2ZRFAE..ZRE186¥90201208-201503

12102APAN SUB-ASSY, OIL, NO.2

main12102-21010i1NZFE..NZE18#¥3,780201208-201503

main12102-37010i2ZRFAE..ZRE186¥3,780201208-201503

main12102-47030i8NRFTS..NRE185¥4,160201503

13516BJET, OIL

main13516-21010i1NZFE..NZE18#¥590201208-201312

sub13516-21011¥360

main13516-21011i1NZFE..NZE18#¥360201401-201503

main13516-40010i8NRFTS..NRE185¥360201503

1501

15301GAGE SUB-ASSY, OIL LEVEL

main15301-21060i1NZFE..NZE18#¥1,000201208-201703

sub15301-21061¥1,000

main15301-21061i1NZFE..NZE18#¥1,000201704-201705

sub15301-21062¥750

main15301-21062i1NZFE..NZE18#¥750201706

main15301-37010i2ZR#..ZRE186,ZWE186¥750201308-201503

main15301-37030i2ZRFAE..ZRE186¥1,200201208-201308

sub15301-37010¥750

main15301-47070i8NRFTS..NRE185¥830201503

16337BSTAY, WATER OUTLET, NO.1

main16337-21010i1NZFE..NZE18#¥240201208-201503

9011906848

main90119-06848¥60

9012606015

main90126-06015¥110

9017906326

main90179-06326¥60

9167180614

main91671-80614¥60

9674119005

main96741-19005¥140

22 parts on this diagram · 8 diagrams in section
