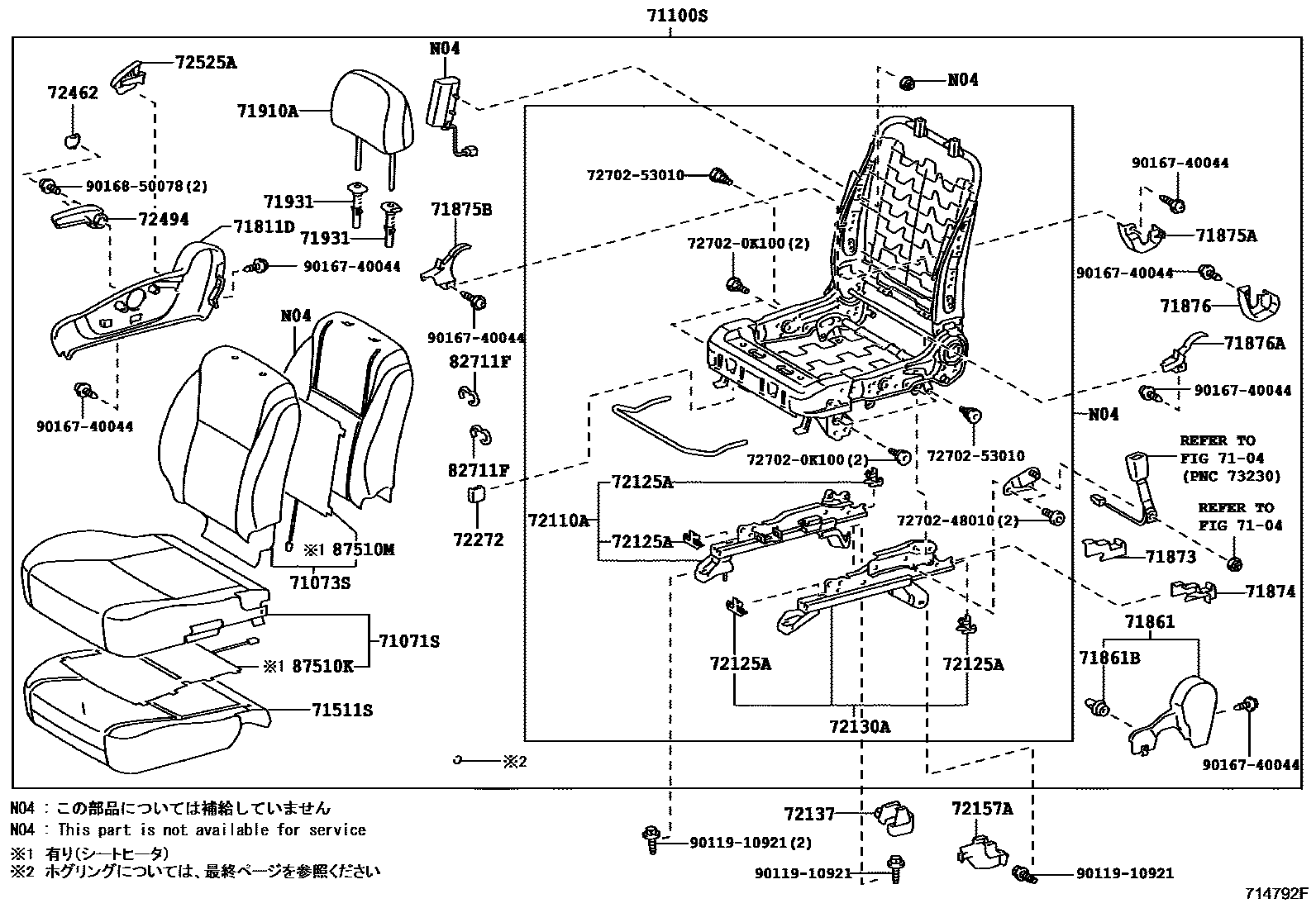

FRONT SEAT & SEAT TRACK
7104
71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
DK.GRAY,TRIM1#
71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
DK.GRAY,TRIM1#
DK.GRAY,TRIM1#
GREGE,TRIM4#
DK.GRAY,TRIM1#
DARK GRAY,TRIM1#
71100SSEAT ASSY, FRONT RH
71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71811DSHIELD, FRONT SEAT CUSHION, RH
71861SHIELD, FRONT SEAT CUSHION, INNER RH
DK.GRAY,TRIM1#
71861BCLIP(FOR FRONT SEAT SHIELD, RH)
71873SHIELD, FRONT SEAT CUSHION, LOWER RH
71874SHIELD, FRONT SEAT CUSHION, LOWER LH
71875ACOVER, RECLINING ADJUSTER INSIDE, RH
DK.GRAY,TRIM1#
GREGE,TRIM4#
71875BCOVER, RECLINING ADJUSTER INSIDE, RH
71876COVER, RECLINING ADJUSTER INSIDE, LH
DK.GRAY,TRIM1#
GREGE,TRIM4#
71876ACOVER, RECLINING ADJUSTER INSIDE, LH
71910AHEADREST ASSY, FRONT SEAT
ORANGE,TRIM1#
71931SUPPORT, FRONT SEAT HEADREST
72110ATRACK ASSY, FRONT SEAT, OUTER RH
72125ACOVER, SEAT TRACK, UPPER REAR
72130ATRACK ASSY, FRONT SEAT, INNER RH
72137COVER, SEAT TRACK, OUTER RH
DK.GRAY,TRIM1#,4#
72157ACOVER, SEAT TRACK BRACKET, INNER RH
DK.GRAY,TRIM1#
72272CLAMP, SEAT TRACK CONTROL CABLE
72462COVER, VERTICAL ADJUSTER RH
72494HANDLE, VERTICAL ADJUSTING, RH
72525AHANDLE, RECLINING ADJUSTER RELEASE, RH
82711FCLAMP, WIRING HARNESS
87510KHEATER ASSY, FRONT SEAT CUSHION, RH
87510MHEATER ASSY, FRONT SEATBACK, RH
727020K100BRACKET SUB-ASSY, REAR SEATBACK STRIKER
7270248010BRACKET SUB-ASSY, REAR SEATBACK STRIKER
7270253010BRACKET SUB-ASSY, REAR SEATBACK STRIKER
9011910921
9016740044
9016850078
34 parts on this diagram · 9 diagrams in section
