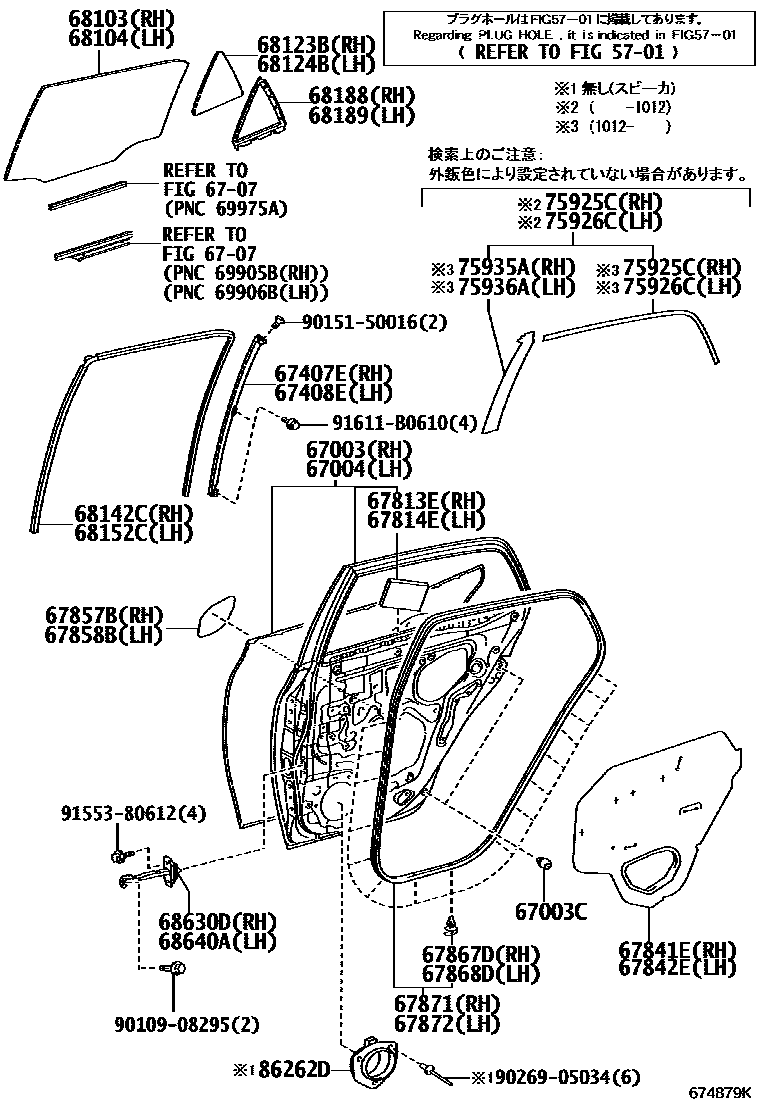

REAR DOOR PANEL & GLASS

0001 1������� 0002 1������

5701

67003PANEL SUB-ASSY, REAR DOOR, RH

main67003-12A10iNZE15#,ZRE15#200910-201208

67003CCUSHION, REAR DOOR PANEL

main90541-09124×4iNZE15#,ZRE15#200610-200806

main90541-09143×4iNZE15#,ZRE15#200812-200910

67004PANEL SUB-ASSY, REAR DOOR, LH

main67004-12A10iNZE15#,ZRE15#200812-200910

6707

67407EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH

main67407-12280iNZE15#,ZRE15#200910

67408EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH

main67408-12280iNZE15#,ZRE15#200610-200812

67813ESHEET, QUARTER PANEL SILENCER, RH

main67817-47010iNZE15#,ZRE15#200610-200812

67814ESHEET, QUARTER PANEL SILENCER, LH

main67817-47010iNZE15#,ZRE15#200610-200812

67841ECOVER, REAR DOOR SERVICE HOLE, RH

main67841-12350iNZE15#,ZRE15#200812-200910

67842ECOVER, REAR DOOR SERVICE HOLE, LH

main67842-12160iNZE15#,ZRE15#200610-200812

67857BPROTECTOR, REAR DOOR PANEL, RH

main67857-12100iNZE15#,ZRE15#200610-200812

67858BPROTECTOR, REAR DOOR PANEL, LH

main67858-12060iNZE15#,ZRE15#200610-200812

67867DRETAINER, REAR DOOR WEATHERSTRIP, RH

main67867-12150×16iNZE15#,ZRE15#200910

67868DRETAINER, REAR DOOR WEATHERSTRIP, LH

main67867-12150×16iNZE15#,ZRE15#200910

67871WEATHERSTRIP, REAR DOOR, RH

main67871-12520iNZE15#,ZRE15#200610-200812

main67871-12521iNZE15#,ZRE15#201104

67872WEATHERSTRIP, REAR DOOR, LH

main67872-12520iNZE15#,ZRE15#200812-200910

main67872-12521iNZE15#,ZRE15#201104

68103GLASS SUB-ASSY, REAR DOOR, RH

main68113-12760supersedes 68113-12750iZRE15#200812-200910

68104GLASS SUB-ASSY, REAR DOOR, LH

main68114-12760supersedes 68114-12750iZRE15#200610-200812

68123BGLASS, REAR DOOR QUARTER WINDOW, RH

main68123-12860supersedes 68123-12850iNZE15#200610-200812

68124BGLASS, REAR DOOR QUARTER WINDOW, LH

main68124-12860supersedes 68124-12850iZRE15#200610-200812

68142CRUN, REAR DOOR GLASS, RH

main68142-12270iNZE15#,ZRE15#200610-200812

68152CRUN, REAR DOOR GLASS, LH

main68152-12180iNZE15#,ZRE15#200610-200812

68188WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH

main68188-12320iNZE15#,ZRE15#200610-200812

68189WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH

main68189-12320iNZE15#,ZRE15#200610-200812

68630DCHECK ASSY, REAR DOOR, RH

main68610-12190iNZE15#,ZRE15#200610-200812

main68630-12110iNZE15#,ZRE15#200812-200910

main68630-12111iNZE15#,ZRE15#201006-201208

68640ACHECK ASSY, REAR DOOR, LH

main68630-12110iNZE15#,ZRE15#200610-200812

main68630-12111iNZE15#,ZRE15#201006-201208

75925CTAPE, BLACK OUT, NO.3 RH

main75925-12030iNZE15#,ZRE15#200610-200812

main75925-12050iNZE15#,ZRE15#201012

75926CTAPE, BLACK OUT, NO.3 LH

main75926-12030iNZE15#,ZRE15#200610-200812

main75926-12050iNZE15#,ZRE15#201012

75935ATAPE, BLACK OUT, NO.6 RH

main75935-12030iNZE15#,ZRE15#201012

75936ATAPE, BLACK OUT, NO.6 LH

main75936-12030iNZE15#,ZRE15#201012

86262DCOVER, REAR DOOR SPEAKER

main86262-13010×2iNZE15#200610-200812

9010908295

main90109-08295

9015150016

main90151-50016

9026905034

main90269-05034

9155380612

main91553-80612

91611B0610

main91611-B0610

37 parts on this diagram · 2 diagrams in section
