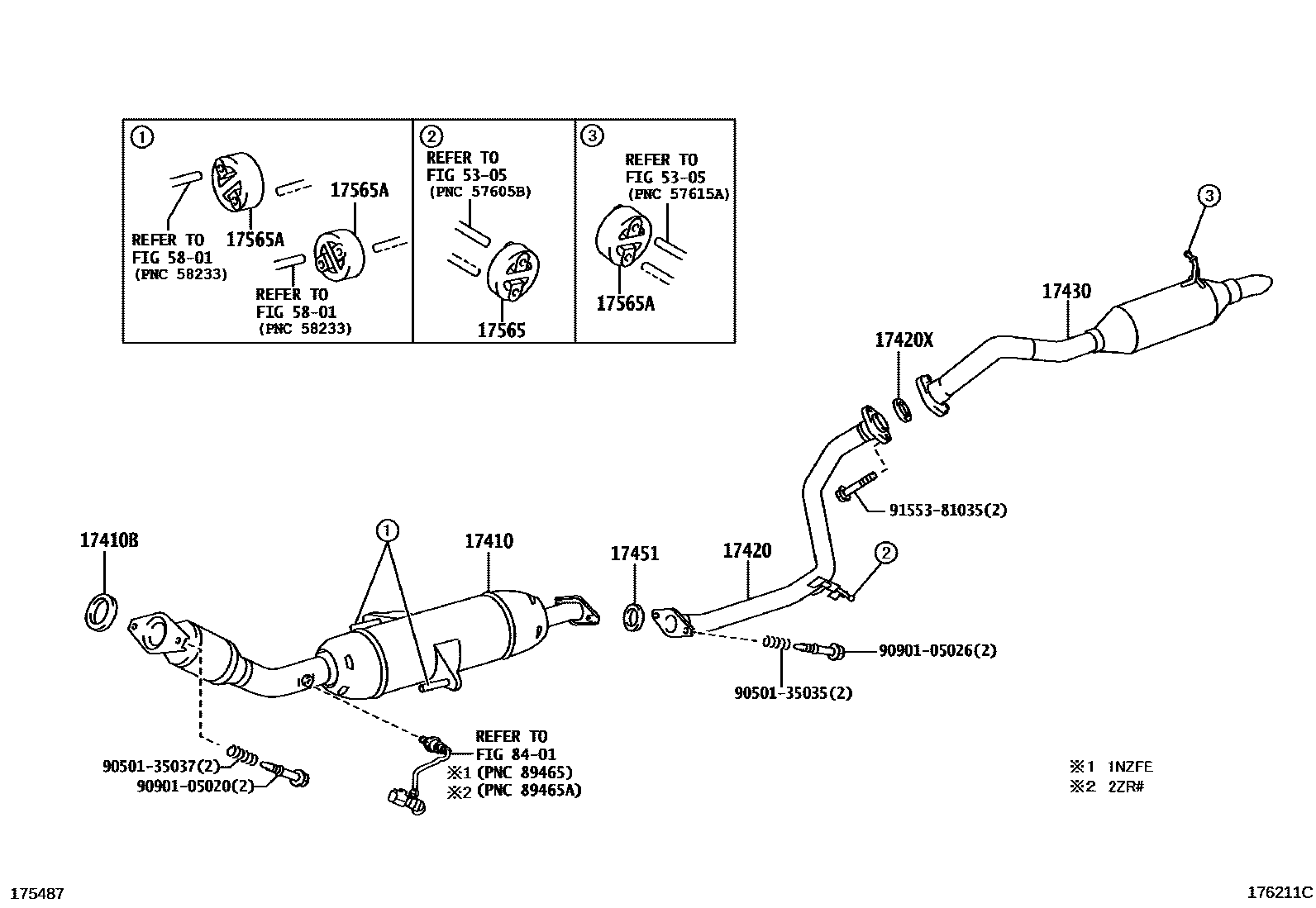

EXHAUST PIPE

0001 1 0002 1

17410PIPE ASSY, EXHAUST, FRONT

main17410-21710i1NZFE..NZE151200812-200910

main17410-21720i1NZFE..NZE154200610-200812

sub17410-21721

main17410-21750i1NZFE..NZE151200910-201208

main17410-21890i1NZFE..NZE154200910-201208

sub17410-21891

main17410-22580i2ZRFE..ZRE154200610-200708

main17410-22581i2ZRFE..ZRE154200709-200812

sub17410-22582

main17410-22590i2ZRFE..ZRE152200610-200704

main17410-37170i2ZRFAE..ZRE154200910-201208

sub17410-37171

main17410-37290i2ZRFE..ZRE152200812-200910

main17410-37340i2ZRFAE..ZRE152200910-201208

17410BGASKET, EXHAUST PIPE

main17451-21070i1NZFE,2ZRFE..NZE15#,ZRE154200610-200812

main17451-28040i2ZRFE..ZRE152200610-200812

sub17451-28041

17420PIPE ASSY, EXHAUST, CENTER

main17420-21180i1NZFE..NZE151200812-200910

main17420-22110i2ZRFE..ZRE152200812-200910

17420XGASKET, EXHAUST PIPE, CENTER

main17451-28030i1NZFE,2ZRFE..NZE154,ZRE154200610-200712

main17451-28031i1NZFE,2ZRFAE..NZE154,ZRE154200910-201102

main17451-28032i1NZFE,2ZRFAE..NZE154,ZRE154201103

main90917-06044i1NZFE..NZE151200610-200812

main90917-06089i2ZRFE..ZRE152200610-200812

17430PIPE ASSY, EXHAUST, TAIL

main17430-21660i1NZFE..NZE151200910-201105

main17430-21661i1NZFE..NZE151201106-201208

main17430-22500i2ZRFE..ZRE152200812-200910

main17430-22501i2ZRFAE..ZRE152201106-201208

main17430-22510i1NZFE,2ZRFE..NZE154,ZRE154200812-200905

sub17430-22511

main17430-37440i1NZFE,2ZRFAE..NZE154,ZRE154200910-201208

sub17430-37441

17451GASKET, EXHAUST PIPE

main17451-23040i1NZFE..NZE151200610-200707

main17451-23041i1NZFE..NZE151200910-201009

main17451-23042i1NZFE..NZE151201010

sub17451-23043

main17451-28030i2ZRFE..ZRE152200610-200712

main17451-28031i2ZRFE..ZRE152200801-200812

main17451-28032i2ZRFAE..ZRE152201103

17565SUPPORT, EXHAUST PIPE, NO.5

main17565-22030×3i1NZFE,2ZRFE..NZE151,ZRE152200610-200812

17565ASUPPORT, EXHAUST PIPE, NO.4

main17565-22040×3i1NZFE,2ZRFE..NZE151,ZRE152200812-200910

main17565-28010×2i1NZFE,2ZRFE..NZE154,ZRE154200812-200910

5305

5801

8401

9050135035

main90501-35035

9050135037

main90501-35037

9090105020

main90901-05020

9090105026

main90901-05026

9155381035

main91553-81035

16 parts on this diagram · 2 diagrams in section
