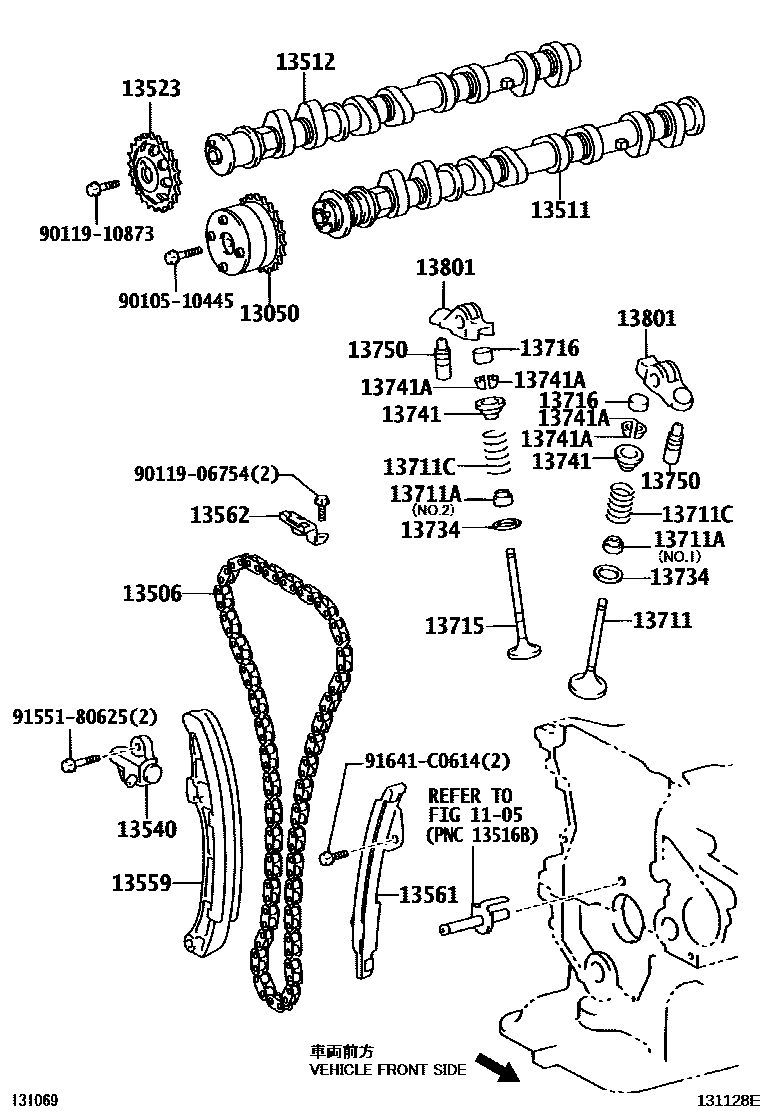

CAMSHAFT & VALVE

0001 1 0002 1 0003 1

1105

13050GEAR ASSY, CAMSHAFT TIMING

main13050-0T010i2ZRFE..ZRE15#200812-200907

main13050-0T011i2ZRFAE..ZRE15#200910-201206

sub13050-0T050

main13050-0T021i2ZRFE..ZRE15#200707-200812

main13050-0T022i2ZRFE..ZRE15#200903-200910

sub13050-0T060

sub13050-0T070

sub13050-37040

main13050-21060i1NZFE..NZE15#200910-201204

main13050-21061i1NZFE..NZE15#201204

main13050-37011i2ZRFE..ZRE15#200610-200703

main13050-37012i2ZRFE..ZRE15#200812-200910

sub13050-0T090

sub13050-37040

sub13050-37060

13506CHAIN SUB-ASSY

main13506-21060i1NZFE..NZE15#200910-201202

main13506-21061i1NZFE..NZE15#201202

main13506-37010i2ZRFE..ZRE15#200610-200812

sub13506-37070

main13506-37040i2ZRFAE..ZRE15#200910-201201

main13506-37050i2ZRFAE..ZRE15#201201

13511CAMSHAFT

main13501-21051i1NZFE..NZE15#200812-200910

main13501-21052i1NZFE..NZE15#201111

main13501-37010i2ZRFE..ZRE15#200610-200705

main13501-37011i2ZRFE..ZRE15#200812-200910

sub13501-37040

13512CAMSHAFT, NO.2

main13502-21041i1NZFE..NZE15#200910-201111

main13502-21042i1NZFE..NZE15#201111

main13502-37010i2ZRFE..ZRE15#200610-200812

sub13502-37050

13523GEAR OR SPROCKET, CAMSHAFT TIMING

main13523-22020i1NZFE..NZE15#200910

13540TENSIONER ASSY, CHAIN, NO.1

main13540-21020i1NZFE..NZE15#200610-200812

main13540-37010i2ZRFE..ZRE15#200610-200703

main13540-37020i2ZRFE..ZRE15#200703-200704

main13540-37030i2ZRFE..ZRE15#200812-200910

13559SLIPPER, CHAIN TENSIONER

main13559-21010i1NZFE..NZE15#200610-200812

sub13559-21030

main13559-37010i2ZRFE..ZRE15#200812-200910

sub13559-37050

13561DAMPER, CHAIN VIBRATION, NO.1

main13561-21020i1NZFE..NZE15#200610-200812

main13561-37010i2ZRFAE..ZRE15#200910-201208

sub13561-37040

main13561-37020i2ZRFE..ZRE15#200610-200812

sub13561-37050

13562DAMPER, CHAIN VIBRATION, NO.2

main13562-21010i1NZFE..NZE15#200910

main13562-37010i2ZRFE..ZRE15#200812-200910

sub13562-37020

13711VALVE, INTAKE

main13711-21040×8i1NZFE..NZE15#200610-200812

main13711-37020×8i2ZRFE..ZRE15#200812-200910

13711ASEAL OR RING, O(FOR VALVE STEM OIL)

main90913-02101×8i1NZFE..NZE15#200812-200910

main90913-02112×8i2ZRFE..ZRE15#200812-200910

13711CSPRING, COMPRESSION(FOR OUTER)

main90501-32053×16i1NZFE..NZE15#200910

13715VALVE, EXHAUST

main13715-21040×8i1NZFE..NZE15#200910

main13715-37030×8i2ZRFE..ZRE15#200812-200910

13716CAP, VALVE STEM

main13716-75020×16i2ZRFAE..ZRE15#200910

13734SEAT, VALVE SPRING

main13734-62020×16i2ZRFE..ZRE15#200610-200812

13741RETAINER, VALVE SPRING

main13741-20021×16i1NZFE..NZE15#200610-200812

13741ALOCK, VALVE SPRING RETAINER

main90913-03028×32i1NZFE..NZE15#200910

13750ADJUSTER ASSY, VALVE LASH

main13750-0W030×16i1NZFE..NZE15#200910-201006

sub13750-31030

main13750-21010×16i1NZFE..NZE15#201006

main13750-75020×16i2ZRFE..ZRE15#200812-200910

13801ARM SUB-ASSY, VALVE ROCKER, NO.1

main13801-23011×16i2ZRFE..ZRE15#200812-200910

main13801-47010×16i1NZFE..NZE15#201007

sub13801-36020

9010510445

main90105-10445

9011906754

main90119-06754

9011910873

main90119-10873

9155180625

main91551-80625

91641C0614

main91641-C0614
