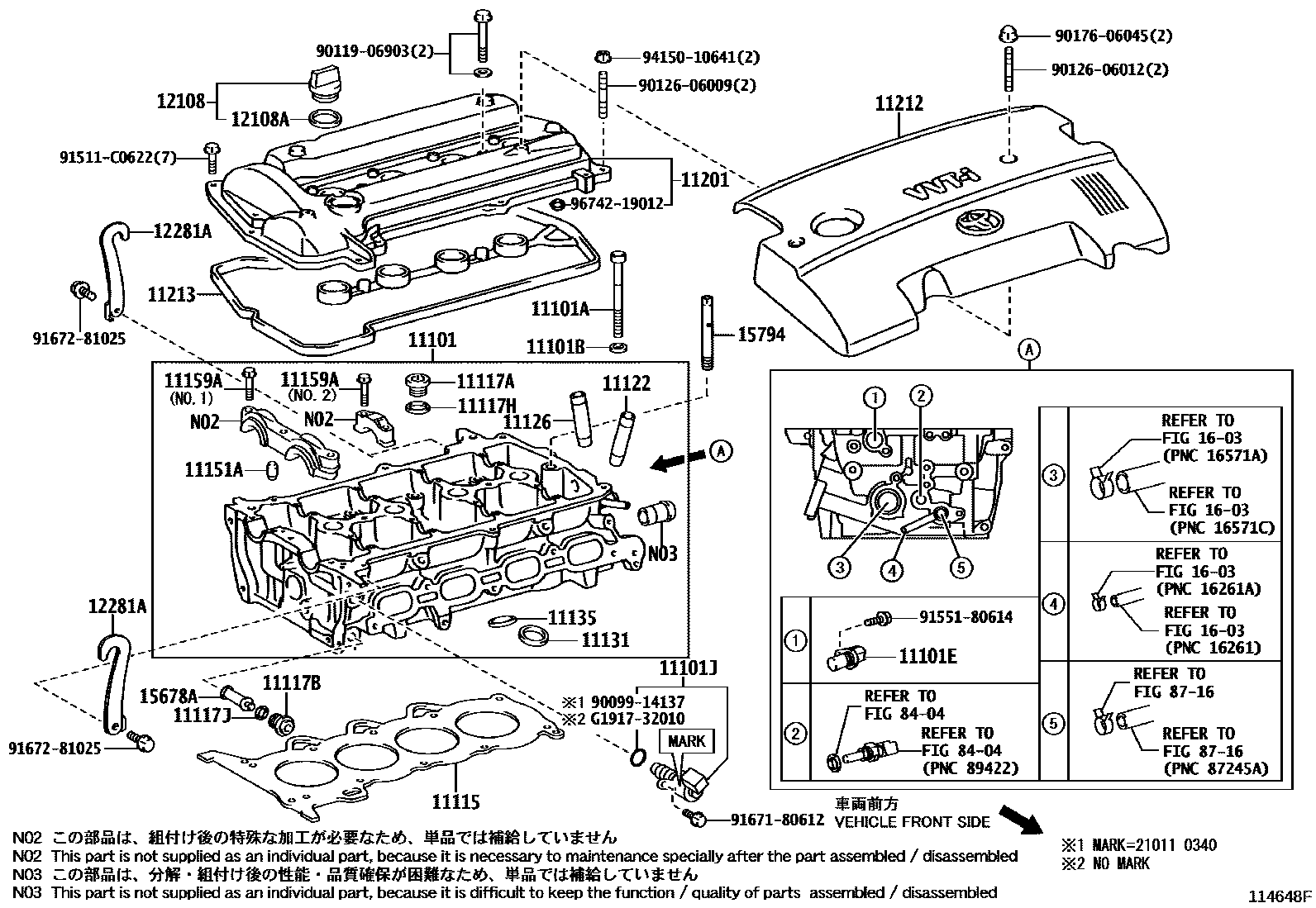

CYLINDER HEAD

0001 1 0002 1 0003 1 0004 1

11101HEAD SUB-ASSY, CYLINDER

main11101-21050i1NZFE..NZE15#200910-201110

main11101-21051i1NZFE..NZE15#201110-201208

sub11101-21052

main11101-39686i2ZRFE..ZRE15#200812-200910

11101ABOLT(FOR CYLINDER HEAD SET)

main90910-02126×10i1NZFE..NZE15#200610-200701

main90910-02166×10i2ZRFE..ZRE15#200610-200812

main90910-02170×10i1NZFE..NZE15#200812-200910

11101BWASHER, PLATE(FOR CYLINDER HEAD SET)

main90201-09024×10i1NZFE..NZE15#200610-200812

main90201-10344×10i2ZRFE..ZRE15#200812-200910

11101ESENSOR, CAM POSITION

main90919-05024i1NZFE..NZE15#200812-200910

main90919-05060×2i2ZRFE..ZRE15#200812-200910

11101JVALVE ASSY, CAMSHAFT TIMING OIL CONTROL

main15330-21011i1NZFE..NZE15#200812-200910

main15330-37010i2ZRFE..ZRE15#200610-200812

main15330-37020i2ZRFE..ZRE15#200610-200812

11115GASKET, CYLINDER HEAD

main11115-21050i1NZFE..NZE15#200812-200910

main11115-21080i1NZFE..NZE15#201110-201204

main11115-21090i1NZFE..NZE15#201204

sub11115-21091

main11115-37030i2ZRFE..ZRE15#200610-200806

main11115-37050i2ZRFE..ZRE15#200806-200812

main11115-37051i2ZRFE..ZRE15#200903-200910

main11115-37060i2ZRFAE..ZRE15#201110

sub11115-37061

11117APLUG, W/HEAD TAPER SCREW, NO.1

main90341-24013i1NZFE..NZE15#200610-200812

sub90341-24011

11117BPLUG, W/HEAD TAPER SCREW, NO.2

main90341-14013i1NZFE..NZE15#200812-200910

main90341-20002×3i2ZRFE..ZRE15#200812-200910

11117HGASKET(FOR WATER HOLE)

main90430-20004×3i2ZRFE..ZRE15#200610-200812

main90430-24246i1NZFE..NZE15#200812-200910

11117JGASKET(FOR CYLINDER HEAD SCREW PLUG)

main90430-14009i1NZFE..NZE15#200812-200910

11122BUSH, INTAKE VALVE GUIDE

main11122-31050×8i2ZRFAE..ZRE15#200910-201208

sub11122-31090

main11122-75020×8i1NZFE..NZE15#200910

main11123-31050×8i2ZRFAE..ZRE15#200910-201208

main11123-75020×8i1NZFE..NZE15#200610-200812

11126BUSH, EXHAUST VALVE GUIDE

main11122-75020×8i1NZFE..NZE15#200610-200812

main11123-75020×8i1NZFE..NZE15#200610-200812

main11126-31030×8i2ZRFAE..ZRE15#200910-201208

sub11126-31040

main11127-31030×8i2ZRFAE..ZRE15#200910-201208

sub11127-31040

11131SEAT, INTAKE VALVE

main11131-21020×8i1NZFE..NZE15#200610-200812

sub11131-21021

main11131-37020×8i2ZRFE..ZRE15#200610-200812

sub11131-37040

main11132-21020×8i1NZFE..NZE15#200910

sub11132-21021

main11132-37020×8i2ZRFE..ZRE15#200812-200910

sub11132-37040

11135SEAT, EXHAUST VALVE

main11135-21020×8i1NZFE..NZE15#200610-200812

sub11135-21041

main11135-37020×8i2ZRFAE..ZRE15#200910-201208

main11136-21020×8i1NZFE..NZE15#200910

main11136-37020×8i2ZRFAE..ZRE15#200910-201208

11151APIN, RING(FOR CAMSHAFT BEARING CAP SETTING)

main90250-06001×2i1NZFE..NZE15#200610-200812

main90253-13005×10i2ZRFE..ZRE15#200610-200812

11159ABOLT(FOR HEAD TO CAMSHAFT BEARING CAP)

main90109-06080×16i1NZFE..NZE15#200812-200910

main90119-08A29×3i1NZFE..NZE15#200812-200910

11201COVER SUB-ASSY, CYLINDER HEAD

main11201-21070i1NZFE..NZE15#200812-200910

main11201-37010i2ZRFAE..ZRE15#200910-201201

main11201-37011i2ZRFAE..ZRE15#201201

main11201-37020i2ZRFE..ZRE15#200610-200703

main11201-37021i2ZRFE..ZRE15#200703-200704

main11201-37022i2ZRFE..ZRE15#200812-200910

11212COVER, CYLINDER HEAD, NO.2

main11212-21021i1NZFE..NZE15#200610-200812

main11212-21040i1NZFE..NZE15#201008

main11212-37010i2ZRFE..ZRE15#200812-200910

main11212-37030i2ZRFAE..ZRE15#200910-201007

main11212-37031i2ZRFAE..ZRE15#201008

11213GASKET, CYLINDER HEAD COVER

main11213-21020i1NZFE..NZE15#200812-200910

main11213-37020i2ZRFE..ZRE15#200812-200910

sub11213-37021

12108CAP SUB-ASSY, OIL FILLER

main12180-21010i1NZFE..NZE15#200910-201011

main12180-38010i2ZRFAE..ZRE15#200910

12108AGASKET(FOR OIL FILLER CAP)

main90430-35001i2ZRFAE..ZRE15#200910

main90430-37140i1NZFE..NZE15#200910-201011

12281AHANGER, ENGINE, NO.1

main12281-21010×2i1NZFE..NZE15#200610-200812

main12281-37020i2ZRFE..ZRE15#200610-200704

main12281-37021i2ZRFAE..ZRE15#200910-201203

main12281-37050i2ZRFAE..ZRE15#201203-201208

15678AFILTER, OIL CONTROL VALVE

main15678-21010i1NZFE..NZE15#200910

main15678-37010i2ZRFE..ZRE15#200812-200910

15794NOZZLE, CYLINDER HEAD OIL

main15794-21010i1NZFE..NZE15#200610-200812

1603

8404

8716

9009914137

main90099-14137

9011906903

main90119-06903

9012606009

main90126-06009

9012606012

main90126-06012

9017606045

main90176-06045

91511C0622

main91511-C0622

9155180614

main91551-80614

9167180612

main91671-80612

9167281025

main91672-81025

9415010641

main94150-10641

9674219012

main96742-19012

G191732010

mainG1917-32010

39 parts on this diagram · 4 diagrams in section
