QUARTER WINDOW

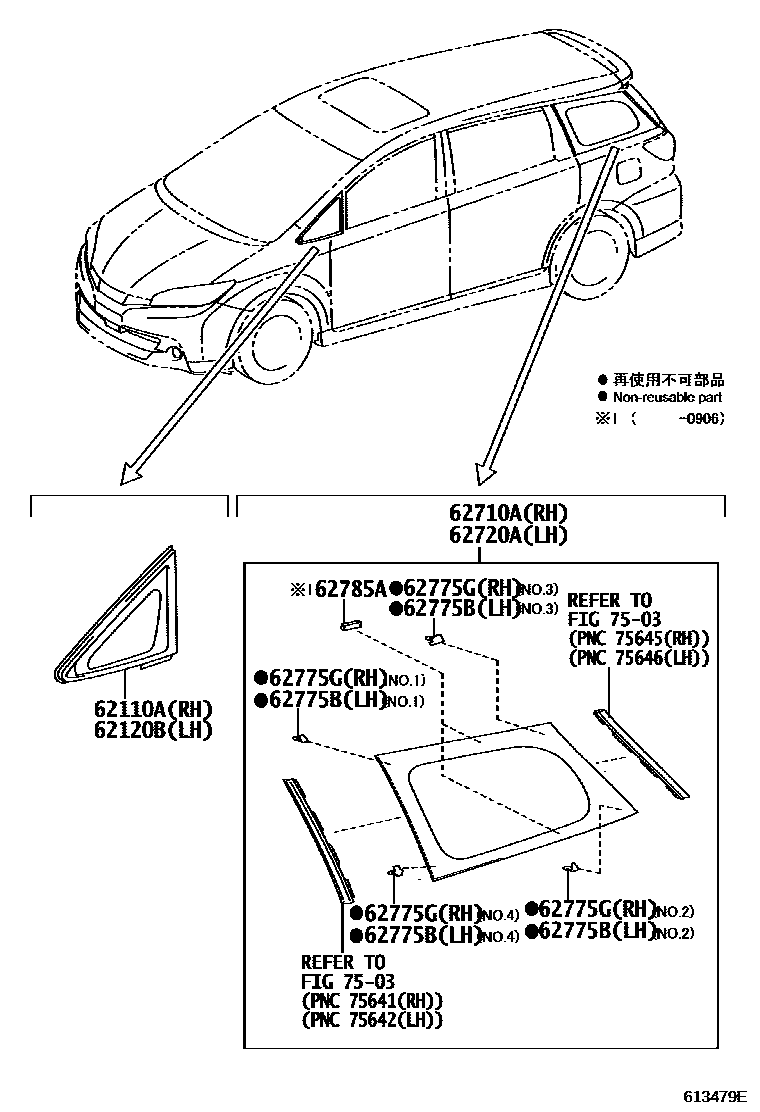

Parts diagram

62110AWINDOW ASSY, FRONT SIDE FIX, RH

main62110-68030i200903-201204

main62110-68040i201204

62120BWINDOW ASSY, FRONT SIDE FIX, LH

main62120-68030i200903-201204

main62120-68040i201204

62710AWINDOW ASSY, QUARTER, RH

main62710-68050i200903-201204

62720AWINDOW ASSY, QUARTER, LH

main62720-68050i200903-201204

62775BCLIP, QUARTER WINDOW, LH

main62775-68060i201204

main62775-68080i200903-201204

main62775-68100i200903-201204

main62775-68110i201204

62775GCLIP, QUARTER WINDOW, RH

main62775-68060i201204

main62775-68070i200903-201204

main62775-68090i200903-201204

main62775-68110i201204

62785ASPACER, QUARTER WINDOW GLASS

main62785-16030×4i200903-200906

7503

8 parts on this diagram · 1 diagram in section
