MAT & CARPET

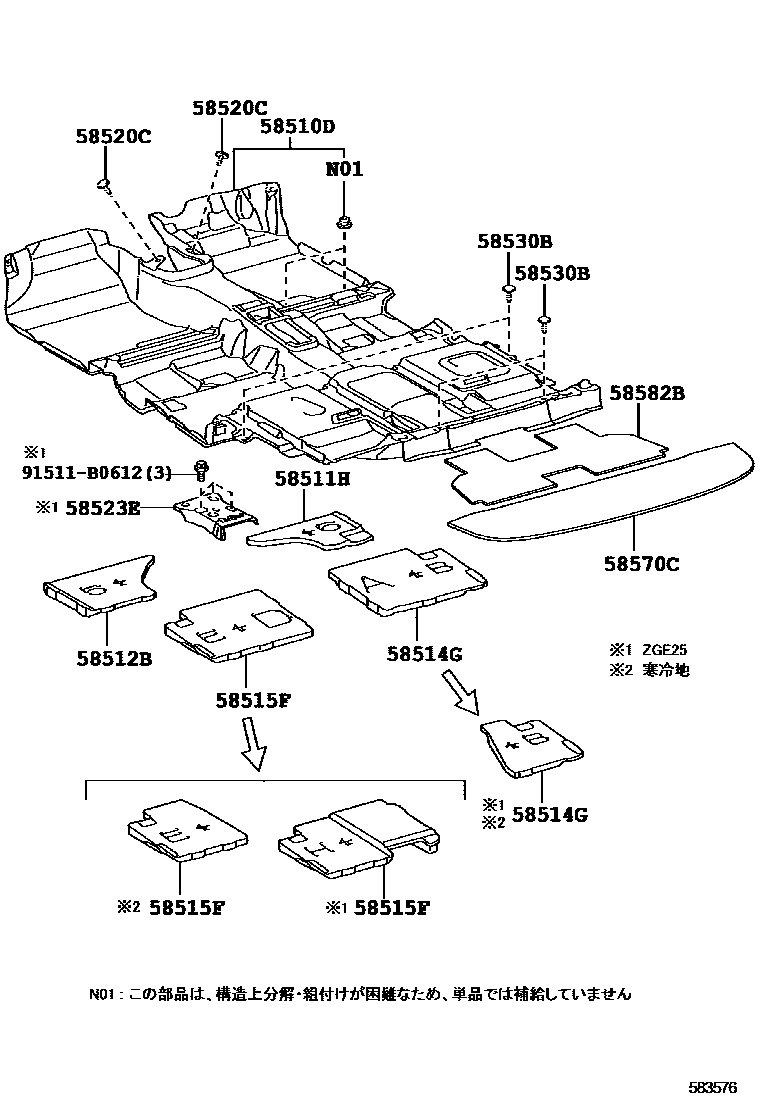

Parts diagram
58510DCARPET ASSY, FLOOR, FRONT
main58510-68070-B1i200903-201204
GRAY,TRIM1#,4#
main58510-68070-B1i200903-201204
GRAY,TRIM1#
main58510-68070-E1i200903-201204
GREGE,TRIM4#
main58510-68100-B1i200903-201204
GRAY,TRIM1#,4#
main58510-68110-B0i201204-201408
GRAY,TRIM1#
main58510-68110-B0i201204-201408
GRAY,TRIM1#,4#
main58510-68110-E0i201204-201408
GREGE,TRIM4#
main58510-68111-B0i201408-201711
GRAY,TRIM1#
main58510-68111-B0i201408-201711
GRAY,TRIM1#,4#
main58510-68111-E0i201408-201711
GREGE,TRIM4#
main58510-68130-B0i201204-201408
GRAY,TRIM1#,4#
main58510-68130-E0i201204-201408
GREGE,TRIM4#
main58510-68131-B0i201408-201711
GRAY,TRIM1#,4#
main58510-68131-E0i201408-201711
GREGE,TRIM4#
58511HMAT, FLOOR, FRONT RH
main58511-68030i200903-201304
sub58511-68031
main58511-68031i201305
58512BMAT, FLOOR, FRONT LH
main58512-68020i200903-201304
sub58512-68021
main58512-68021i201305
58514GMAT, FLOOR, REAR RH
main58514-68050i200903-201304
sub58514-68051
main58514-68051i201305
main58514-68060i200903-201304
sub58514-68061
main58514-68061i201305
58515FMAT, FLOOR, REAR LH
main58515-68050i200903-201304
sub58515-68051
main58515-68051i201305
main58515-68070i200903-201304
sub58515-68071
main58515-68071i201305
58520CCLIP(FOR FRONT FLOOR CARPET)
main90467-09050i200903-201204
58523EBRACKET, FLOOR CARPET SET
main58523-68050i200903-201111
sub58523-68051
main58523-68051i201112-201204
58530BCLIP(FOR FRONT FLOOR CARPET)
main90467-07049-B7i200903-201711
DK.GRAY,TRIM1#,4#
sub90467-07049
main90467-07049-B7i200903-201711
DK.GRAY,TRIM1#
sub90467-07049
main90467-07049-E5i200903-201711
GREGE,TRIM4#
sub90467-07049
58570CCARPET ASSY, REAR FLOOR
main58571-68020i200903-201204
58582BCARPET, 3RD SEAT FLOOR, NO.1
main58582-68020i200903-201204
91511B0612
main91511-B0612

11 parts on this diagram · 2 diagrams in section
