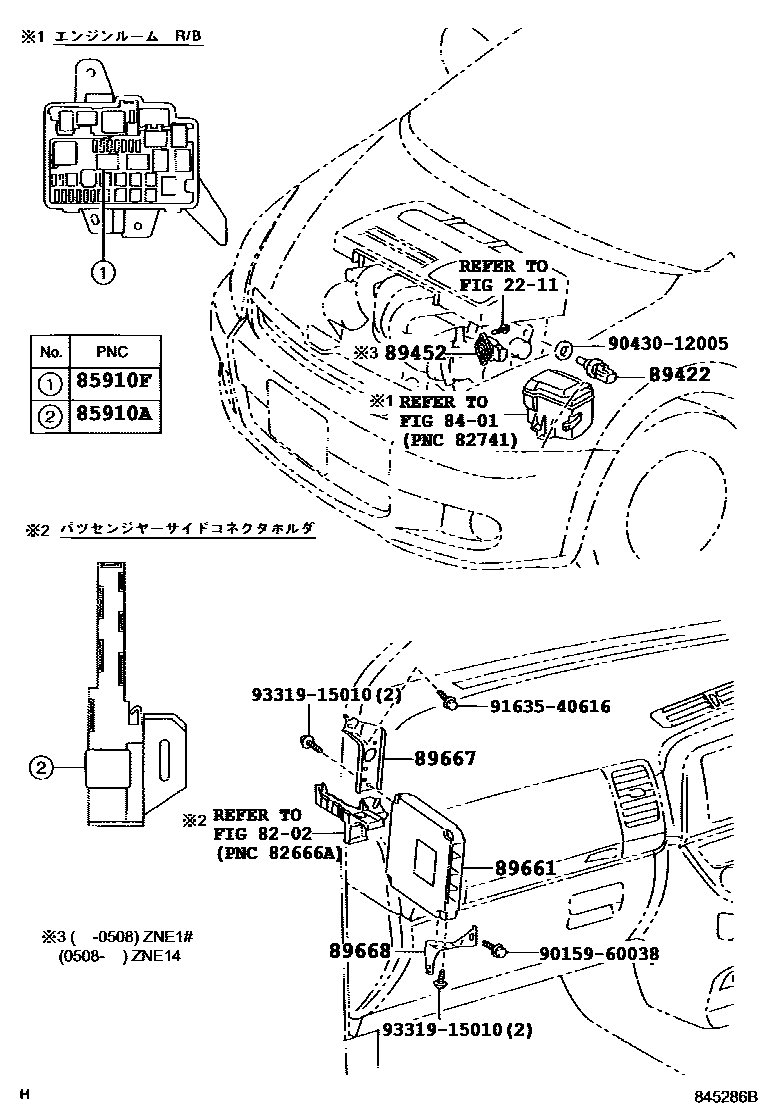

ELECTRONIC FUEL INJECTION SYSTEM

0001 1 0002 1

2211

8202

8401

85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)

main90987-02022iANE1#,ZNE1#200508-200903

85910FRELAY, COMPUTER (FOR EFI)

main90987-02022iANE1#,ZNE1#200301-200508

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-33030iANE1#200508-200903

main89422-35010iZNE1#200301-200508

89452SENSOR, THROTTLE POSITION (FOR E.F.I.)

main89452-20130iZNE1#200301-200508

89661COMPUTER, ENGINE CONTROL

main89661-68010iZNE10200301-200508

main89661-68020iZNE14200301-200508

main89661-68040iANE11200304-200508

main89661-68050iANE10200304-200508

main89661-68100iANE10200508-200903

main89661-68110iANE11200508-200903

main89661-68120iZNE10200508-200903

main89661-68130iZNE14200508-200903

89667BRACKET, ENGINE CONTROL COMPUTER

main89667-68010iANE1#,ZNE1#200301-200508

main89667-68020iZNE10200508-200903

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-68010iANE1#,ZNE1#200301-200508

9015960038

main90159-60038

9043012005

main90430-12005

9163540616

main91635-40616

9331915010

main93319-15010

14 parts on this diagram · 2 diagrams in section
