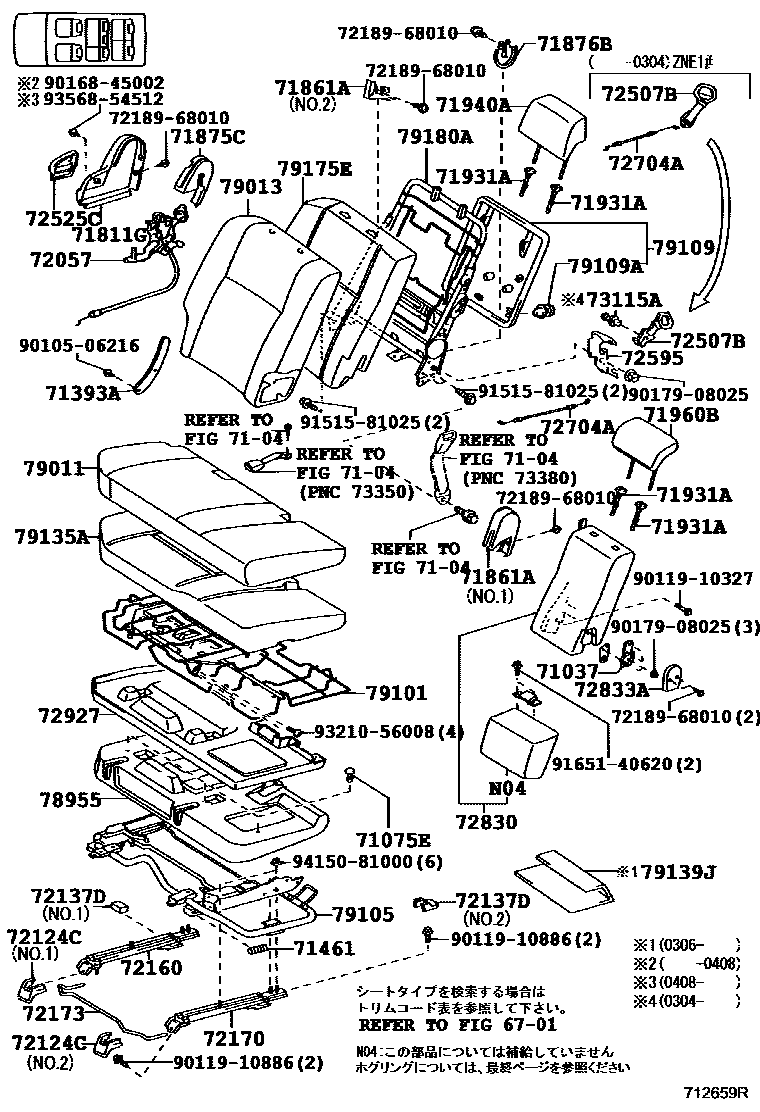

REAR SEAT & SEAT TRACK

0001 1�� NO.1�-�(RH) 0002 1�� NO.1�-�(LH) 0003 1�� NO.1���(RH) 0004 1�� NO.1 ���(LH) 0005 1�� NO.1�-�(RH) 0006 1�� NO.1�-�(LH) 0007 1�� NO.2�-�(RH) 0008 1�� NO.2�-�(LH) 0009 1�������

6701

71037HINGE SUB-ASSY, CENTER SEATBACK, RH

main71037-68010iANE10,ZNE1#200508-200903

7104

71075ECLIP(FOR REAR SEAT)

main71769-60010-C0×5iANE10,ZNE1#200301-200508

BLACK,TRIM1#

71393ABAND, REAR SEAT CUSHION, RH

main71393-68010-C0iANE1#,ZNE1#200508-200903

BLACK,TRIM1#

main71393-68010-B0iZNE1#200706-200806

71461SPRING, REAR SEAT CUSHION

main71461-68010iANE1#,ZNE1#200301-200508

71811GSHIELD, REAR SEAT CUSHION, RH

main71811-68010-C0iANE1#,ZNE1#200301-200508

BLACK,TRIM1#

sub71811-68050

71861ASHIELD, REAR SEAT CUSHION, INNER RH

main71861-68050-C0iANE10,ZNE1#200301-200508

main71861-68060-C0iANE1#,ZNE1#200508-200903

main71861-68070-C0iANE11200304-200508

71875CCOVER, RECLINING ADJUSTER INSIDE, RH

main71875-68010-C0iANE1#,ZNE1#200301-200508

BLACK,TRIM1#

71876BCOVER, RECLINING ADJUSTER INSIDE, LH

main71876-28060iANE1#,ZNE1#200301-200508

main71876-68010-C0iANE10,ZNE1#200706-200903

BLACK,TRIM1#

71931ASUPPORT, REAR SEAT HEADREST

main71930-44020-B2×3iZNE1#200706-200806

main71930-44020-C0×2iANE10200706-200903

main71930-47010-C0iANE10,ZNE1#200705-200706

main71931-47010-C0×3iANE10200508-200903

sub71931-42020

main71931-47010-P4×3iZNE1#200706-200806

sub71931-42020

71940AHEADREST ASSY, REAR SEAT

main71940-68010-C0×2iANE11200304-200406

BLACK,TRIM1#

sub71940-68011

main71940-68010-C1×2iZNE1#200508-200706

BLACK,TRIM1#

sub71940-68011

main71940-68010-C2×2iZNE1#200706-200903

BLACK,TRIM1#

sub71940-68011

main71940-68020-B0×2iANE10,ZNE1#200301-200406

DARK GRAY,TRIM1#

main71940-68020-B1×2iANE10,ZNE1#200406-200508

DARK GRAY,TRIM1#

main71940-68080-C0×2supersedes 71940-68070-B0iANE10200508-200706

DARK GRAY,TRIM1#

sub71940-68081

main71940-68080-C1×2iANE10200706-200903

DARK GRAY,TRIM1#

sub71940-68081

main71940-68070-B4×2supersedes 71940-68070-B3iZNE1#200706-200806

main71940-68080-B1×2iZNE1#200706-200806

sub71940-68081

71960BHEADREST ASSY, REAR SEAT, CENTER

main71960-68020-B0iANE10,ZNE1#200301-200406

DARK GRAY,TRIM1#

sub71960-68021

main71960-68020-B1×2iANE10,ZNE1#200406-200508

DARK GRAY,TRIM1#

sub71960-68021

main71960-68040-C0supersedes 71960-68030-B0iANE10200508-200706

DARK GRAY,TRIM1#

sub71960-68041

main71960-68070-C1iANE10200706-200903

DARK GRAY,TRIM1#

sub71960-68071

main71960-68010-C0iZNE1#200301-200406

sub71960-68011

main71960-68010-C1×2iZNE1#200406-200508

sub71960-68011

main71960-68050-C1iZNE1#200806-200903

sub71960-68051

main71960-68060-B4supersedes 71960-68060-B3iZNE1#200706-200806

main71960-68070-B1iZNE1#200706-200806

sub71960-68071

72057LEVER SUB-ASSY, REAR SEAT LOCK CONTROL, RH

main72057-68010iANE1#,ZNE1#200301-200412

main72057-68011iANE1#,ZNE1#200508-200903

72124CCOVER, SEAT TRACK BRACKET, OUTER FRONT LH

main72137-68010-C0×2iANE1#,ZNE1#200508-200903

main72137-68060-C0×2iANE1#,ZNE1#200508-200903

72137DCOVER, REAR SEAT TRACK, RH

main72137-68020-C0iANE1#,ZNE1#200508-200903

main72137-68030-C0iANE10,ZNE1#200301-200508

main72137-68050-C0iANE11200508-200903

72160TRACK ASSY, REAR SEAT, OUTER RH

main72160-68010iANE1#,ZNE1#200508-200903

main72160-68020iANE10,ZNE1#200508-200903

main72160-68030iANE11200304-200508

72170TRACK ASSY, REAR SEAT, OUTER LH

main72170-68010iANE10,ZNE1#200508-200903

main72170-68030iANE11200304-200508

72173HANDLE, REAR SEAT TRACK ADJUSTING

main72173-68010×2iANE1#,ZNE1#200301-200508

72507BHANDLE SUB-ASSY, RECLINING RELEASE, RH

main72507-68011-C0iANE11200304-200508

BLACK,TRIM1#

main72507-68020-C0iZNE1#200301-200304

BLACK,TRIM1#

main72507-68021-C0iANE10,ZNE1#200304-200508

BLACK,TRIM1#

72525CHANDLE, RECLINING ADJUSTER RELEASE, NO.1 RH

main72525-47020-C0iANE1#,ZNE1#200508-200903

BLACK,TRIM1#

72595BASE, RECLINING REMOTE CONTROL, RH

main72595-68010iANE10,ZNE1#200301-200306

main72595-68011iANE1#,ZNE1#200306-200508

main72596-68010iANE10,ZNE1#200301-200306

main72596-68011iANE1#,ZNE1#200306-200508

72704ACABLE, REAR SEAT RECLINING CONTROL

main72704-68011iANE1#,ZNE1#200304-200306

main72704-68012supersedes 72704-68010iZNE1#200306-200508

main72704-68013iANE1#,ZNE1#200508-200903

72830ARMREST ASSY, REAR SEAT, CENTER

main72830-68020-B2iANE10,ZNE1#200301-200406

DARK GRAY,TRIM1#

sub72830-68150

main72830-68020-B3iANE10,ZNE1#200406-200508

DARK GRAY,TRIM1#

sub72830-68150

main72830-68040-C0iANE10200508-200705

DARK GRAY,TRIM1#

sub72830-68041

main72830-68060-B2iZNE1#200706-200806

DK.GRAY,TRIM16

main72830-68060-B4iZNE1#200706-200806

GRAY,TRIM16

main72830-68070-C1iANE10200706-200903

DARK GRAY,TRIM1#

sub72830-68071

main72830-68010-C2supersedes 72830-68060-B2iZNE1#200301-200406

sub72830-68011

main72830-68010-C3supersedes 72830-68060-B2iZNE1#200406-200508

sub72830-68011

main72830-68050-C0supersedes 72830-68060-B2iZNE1#200508-200705

sub72830-68051

main72830-68070-B1iZNE1#200806-200903

sub72830-68071

main72830-68080-C1supersedes 72830-68060-B2iZNE1#200806-200903

sub72830-68081

72833APLATE, SEAT CENTER ARMREST, INNER

main71861-68030-C0iANE10,ZNE1#200301-200508

BLACK,TRIM1#

72927COVER, REAR SEAT CUSHION UNDER, RH

main72927-68010-B0iANE10,ZNE1#200508-200903

DARK GRAY,TRIM1#

main72927-68020-B0iANE11200508-200903

DARK GRAY,TRIM1#

73115ACLIP, BELT COMFORT, NO.1

main73115-68010×2iANE1#,ZNE1#200304-200508

78955COVER, REAR SEAT UNDER TRAY RH

main78955-68010-C0iANE10,ZNE1#200508-200903

sub78955-68011

sub90167-40044

main78955-68020-C0iANE1#,ZNE1#200508-200903

sub78955-68021

sub90167-40044

main78955-68030-C0iANE11200304-200508

sub78955-68031

sub90167-40044

79011COVER SUB-ASSY, NO.1 SEAT CUSHION, RH

main79011-68020-C0iANE11200304-200406

sub79011-68021

main79011-68020-C1iANE11200406-200508

sub79011-68021

main79011-68030-B0iANE10,ZNE1#200301-200406

sub79011-68031

main79011-68030-B1iZNE10200301-200406

sub79011-68031

main79011-68030-B2iANE10,ZNE1#200301-200406

sub79011-68031

main79011-68030-B3iANE10,ZNE1#200406-200508

sub79011-68031

main79011-68030-B4iZNE10200406-200508

sub79011-68031

main79011-68030-B5iANE10,ZNE1#200406-200508

sub79011-68031

main79011-68060-B0iANE11200508-200903

DK.GRAY,TRIM1#

sub79011-68061

main79011-68070-C0iANE10200508-200903

BLACK,TRIM1#

sub79011-68071

main79011-68010-C0supersedes 79011-68040-B0iZNE1#200301-200406

sub79011-68011

main79011-68010-C1supersedes 79011-68040-B0iZNE1#200406-200508

sub79011-68011

main79011-68040-B2iZNE1#200706-200806

main79011-68050-B0supersedes 79011-68040-B0iZNE1#200508-200903

sub79011-68051

main79011-68070-B0iZNE1#200806-200903

sub79011-68071

main79011-68120-B0supersedes 79011-68040-B0iZNE1#200806-200903

sub79011-68121

79013COVER SUB-ASSY, NO.1 SEATBACK, RH

main79013-68020-C0iANE11200304-200312

sub79013-68021

main79013-68020-C1iANE11200312-200406

sub79013-68021

main79013-68020-C2iANE11200406-200508

sub79013-68021

main79013-68030-B0iANE10,ZNE14200301-200312

sub79013-68031

main79013-68030-B1iZNE10200301-200312

sub79013-68031

main79013-68030-B2iANE10,ZNE1#200312-200406

sub79013-68031

main79013-68030-B3iZNE10200312-200406

sub79013-68031

main79013-68030-B4iANE10,ZNE1#200404-200406

sub79013-68031

main79013-68030-B5iANE10,ZNE1#200406-200508

sub79013-68031

main79013-68030-B6iZNE10200406-200508

sub79013-68031

main79013-68030-B7iANE10,ZNE1#200406-200508

sub79013-68031

main79013-68060-B0iANE11200508-200903

DK.GRAY,TRIM1#

sub79013-68061

main79013-68070-C0iANE10200508-200705

BLACK,TRIM1#

sub79013-68071

main79013-68100-C0iANE10200706-200903

BLACK,TRIM1#

sub79013-68101

main79013-68010-C0supersedes 79013-68040-B0iZNE1#200301-200312

sub79013-68011

main79013-68010-C1supersedes 79013-68040-B0iZNE1#200312-200406

sub79013-68011

main79013-68010-C2supersedes 79013-68040-B0iZNE1#200406-200508

sub79013-68011

main79013-68050-B0supersedes 79013-68040-B0iZNE1#200508-200705

sub79013-68051

main79013-68090-B0supersedes 79013-68080-B0iZNE1#200706-200903

sub79013-68091

main79013-68100-B0iZNE1#200806-200903

sub79013-68101

main79013-68110-B0supersedes 79013-68080-B0iZNE1#200706-200806

main79013-68120-B0supersedes 79013-68080-B0iZNE1#200706-200806

sub79013-68121

main79013-68170-B0supersedes 79013-68040-B0iZNE1#200806-200903

sub79013-68171

79101FRAME SUB-ASSY, NO.1 SEAT CUSHION

main79101-68010iANE10,ZNE1#200301-200508

main79101-68020iANE11200508-200903

79105LEG SUB-ASSY, NO.1 SEAT, RH

main79105-68010iANE10,ZNE1#200508-200706

main79105-68020iANE11200508-200903

main79105-68030iANE10,ZNE1#200706-200903

79109BOARD SUB-ASSY, NO.1 SEATBACK

main79109-68010-B0iANE1#,ZNE1#200301-200508

DARK GRAY,TRIM1#

main79109-68010-B1iZNE1#200806-200903

79109ACLIP (FOR NO.1 SEATBACK BOARD)

main67771-12080×2iANE1#,ZNE1#200301-200508

79135APAD, NO.1 SEAT CUSHION, RH

main79135-68010iANE10,ZNE1#200301-200508

main79135-68020iANE11200508-200903

79139JCLOTH, NO.1 SEAT CUSHION RH

main79139-68010iANE1#,ZNE1#200306-200508

main79139-68020iANE1#,ZNE1#200706-200903

79175EPAD, NO.1 SEATBACK, RH

main79175-68010iANE10,ZNE1#200508-200705

main79175-68020iANE11200508-200903

main79175-68030iANE10,ZNE1#200706-200903

79180ASPRING ASSY, NO.1 SEATBACK, RH

main79203-68010iANE10,ZNE1#200301-200508

main79203-68011iANE10,ZNE1#200508-200706

main79203-68020iANE11200304-200508

main79203-68021iANE11200508-200706

main79203-68050iANE10,ZNE1#200706-200903

main79203-68060iANE11200706-200903

7218968010

main72189-68010

9010506216

main90105-06216

9011910327

main90119-10327

9011910886

main90119-10886

9016845002

main90168-45002

9017908025

main90179-08025

9151581025

main91515-81025

9165140620

main91651-40620

9321056008

main93210-56008

9356854512

main93568-54512

9415081000

main94150-81000

49 parts on this diagram · 9 diagrams in section
