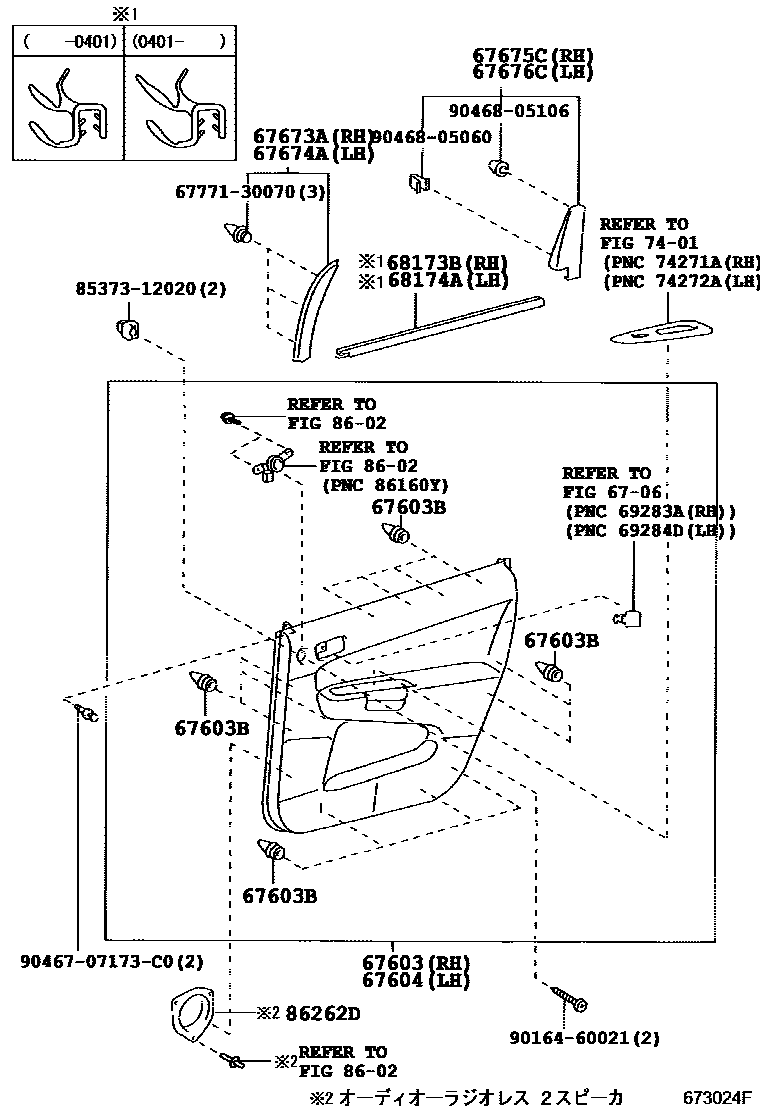

REAR DOOR PANEL & GLASS

0001 1 0002 1

6706

67603BOARD SUB-ASSY, REAR DOOR TRIM, RH

main67630-68010-B1iANE1#,ZNE1#200301-200508

MEDIUM GRAY,TRIM1#

main67630-68010-B3iZNE1#200508-200806

MEDIUM GRAY,TRIM1#

main67630-68010-B3iZNE1#200806-200903

MEDIUM GRAY,TRIM16

main67630-68090-B0iANE11200508-200903

main67630-68090-B0iANE11200508-200903

DK.GRAY,TRIM1#

main67630-68090-B0iANE11200508-200903

main67630-68100-C0iANE10200508-200903

DARK GRAY,TRIM1#

sub67630-68101

67603BCLIP(FOR REAR DOOR TRIM BOARD)

main90467-09206iANE1#,ZNE1#200301-200903

67604BOARD SUB-ASSY, REAR DOOR TRIM, LH

main67640-68010-B1iANE1#,ZNE1#200301-200508

MEDIUM GRAY,TRIM1#

main67640-68010-B3iZNE1#200508-200806

MEDIUM GRAY,TRIM1#

main67640-68010-B3iZNE1#200806-200903

MEDIUM GRAY,TRIM16

main67640-68090-B0iZNE1#200508-200903

main67640-68090-B0iZNE1#200508-200903

DK.GRAY,TRIM1#

main67640-68090-B0iZNE1#200508-200903

main67640-68100-C0iANE10200508-200903

DARK GRAY,TRIM1#

sub67640-68101

67673AGARNISH, REAR DOOR FRAME, RH

main67673-68010iANE1#,ZNE1#200301-200903

67674AGARNISH, REAR DOOR FRAME, LH

main67674-68010iANE1#,ZNE1#200301-200903

67675CGARNISH, REAR DOOR FRAME, NO.2 RH

main67675-68010iANE1#,ZNE1#200301-200508

sub67675-68020

main67675-68020iANE1#,ZNE1#200508-200903

67676CGARNISH, REAR DOOR FRAME, NO.2 LH

main67676-68010iANE1#,ZNE1#200301-200508

sub67676-68020

main67676-68020iANE1#,ZNE1#200508-200903

68173BWEATHERSTRIP, REAR DOOR GLASS, INNER RH

main68173-68010iANE1#,ZNE1#200301-200401

main68173-68020iANE1#,ZNE1#200401-200903

68174AWEATHERSTRIP, REAR DOOR GLASS, INNER LH

main68174-68010iANE1#,ZNE1#200301-200401

main68174-68020iANE1#,ZNE1#200401-200903

7401

8602

86262DCOVER, REAR DOOR SPEAKER

6777130070WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-30070

8537312020HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main85373-12020

9016460021

main90164-60021

9046707173C0

main90467-07173C0

9046805060

main90468-05060

9046805106

main90468-05106

19 parts on this diagram · 2 diagrams in section
