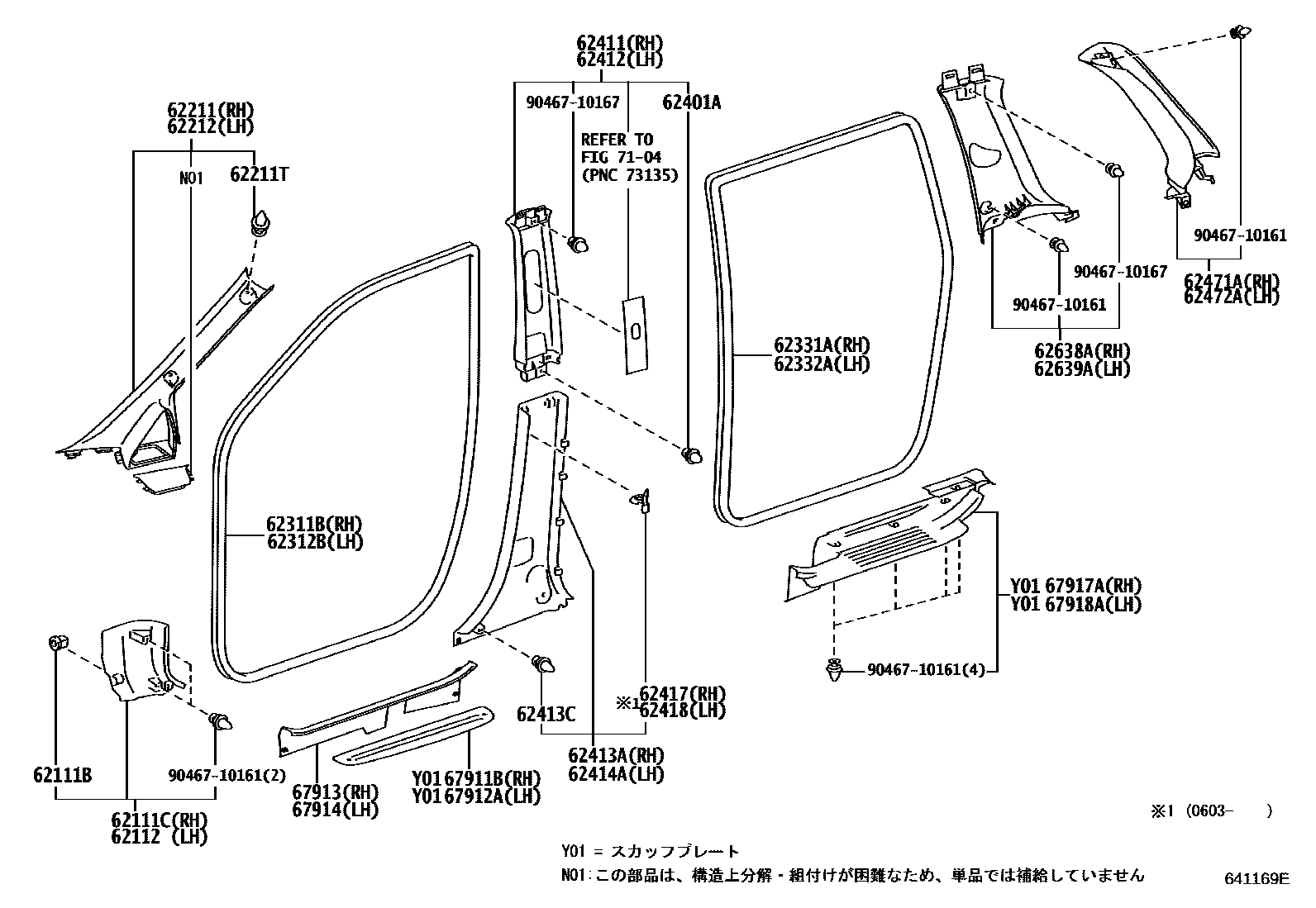

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

0001 1 0002 1��(SRS �-���-��� �������)

62111BCLIP(FOR COWL SIDE TRIM)

main90467-06158-C0×2iANE1#,ZNE1#200508-200903

BLACK,TRIM1#

62111CBOARD, COWL SIDE TRIM, RH

main62111-68010-B0iANE1#,ZNE1#200508-200903

DK.GRAY,TRIM1#

62112BOARD, COWL SIDE TRIM, LH

main62112-68010-B0iANE1#,ZNE1#200508-200903

DK.GRAY,TRIM1#

62211GARNISH, FRONT PILLAR, RH

main62210-68020-B0supersedes 62210-68010-B0iANE1#,ZNE1#200301-200508

62211TCLIP(FOR FRONT PILLAR GARNISH)

main90950-08003×2supersedes 90467-10161iANE1#,ZNE1#200508-200903

62212GARNISH, FRONT PILLAR, LH

main62220-68020-B0supersedes 62220-68010-B0iANE1#,ZNE1#200508-200903

62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH

main62311-68010-B0iANE1#,ZNE1#200312-200508

DK.GRAY,TRIM1#

62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH

main62312-68010-B0iANE1#,ZNE1#200508-200903

DK.GRAY,TRIM1#

62331AWEATHERSTRIP, REAR DOOR OPENING TRIM, RH

main62331-68010-B0iANE1#,ZNE1#200301-200311

DK.GRAY,TRIM1#

62332AWEATHERSTRIP, REAR DOOR OPENING TRIM, LH

main62332-68010-B0iANE1#,ZNE1#200301-200311

DK.GRAY,TRIM1#

62401ACLIP (FOR CENTER PILLAR GARNISH PANEL, UPPER)

main90467-10161×2iANE1#,ZNE1#200301-200508

62411GARNISH, CENTER PILLAR, RH

main62410-68020-B0supersedes 62410-68010-B0iANE1#,ZNE1#200508-200903

62412GARNISH, CENTER PILLAR, LH

main62420-68020-B0supersedes 62420-68010-B0iANE1#,ZNE1#200508-200903

62413AGARNISH, CENTER PILLAR, LOWER RH

main62413-68010-B0iANE1#,ZNE1#200301-200508

DK.GRAY,TRIM1#

main62413-68011-B0iANE1#,ZNE1#200603-200903

DK.GRAY,TRIM1#

62413CCLIP (FOR CENTER LOWER GARNISH)

main90467-10161×4iANE1#,ZNE1#200301-200508

62414AGARNISH, CENTER PILLAR, LOWER LH

main62414-68010-B0iANE1#,ZNE1#200301-200508

DK.GRAY,TRIM1#

main62414-68011-B0iANE1#,ZNE1#200603-200903

DK.GRAY,TRIM1#

62417PLATE, CENTER BODY PILLAR TRIM FINISH, RH

main62675-68010iANE1#,ZNE1#200603-200903

sub62591-12050

62418PLATE, CENTER BODY PILLAR TRIM FINISH, LH

main62675-68010iANE1#,ZNE1#200603-200903

sub62591-12050

62471AGARNISH, ROOF SIDE, INNER RH

main62471-68010-B0iANE1#,ZNE1#200301-200508

LT.GRAY,TRIM1#

62472AGARNISH, ROOF SIDE, INNER LH

main62472-68010-B0iANE1#,ZNE1#200301-200508

LT.GRAY,TRIM1#

62638AGARNISH, QUARTER PILLAR, RH

main62638-68020-B0supersedes 62638-68010-B0iANE1#,ZNE1#200301-200508

62639AGARNISH, QUARTER PILLAR, LH

main62639-68020-B0supersedes 62639-68010-B0iANE1#,ZNE1#200301-200508

67911BPLATE, FRONT DOOR SCUFF, OUTSIDE, RH

main67911-68010-B0iANE1#,ZNE1#200301-200508

DK.GRAY,TRIM1#

67912APLATE, FRONT DOOR SCUFF, OUTSIDE LH

main67911-68010-B0iANE1#,ZNE1#200301-200508

DK.GRAY,TRIM1#

67913PLATE, FRONT DOOR SCUFF, RH

main67913-68010-B0iANE1#,ZNE1#200301-200508

DK.GRAY,TRIM1#

67914PLATE, FRONT DOOR SCUFF, LH

main67914-68010-B0iANE1#,ZNE1#200301-200508

DK.GRAY,TRIM1#

67917APLATE, REAR DOOR SCUFF, RH

main67917-68010-B0iANE1#,ZNE1#200301-200508

DK.GRAY,TRIM1#

67918APLATE, REAR DOOR SCUFF, LH

main67918-68010-B0iANE1#,ZNE1#200301-200508

DK.GRAY,TRIM1#

7104

9046710161

main90467-10161

9046710167

main90467-10167

31 parts on this diagram · 2 diagrams in section
