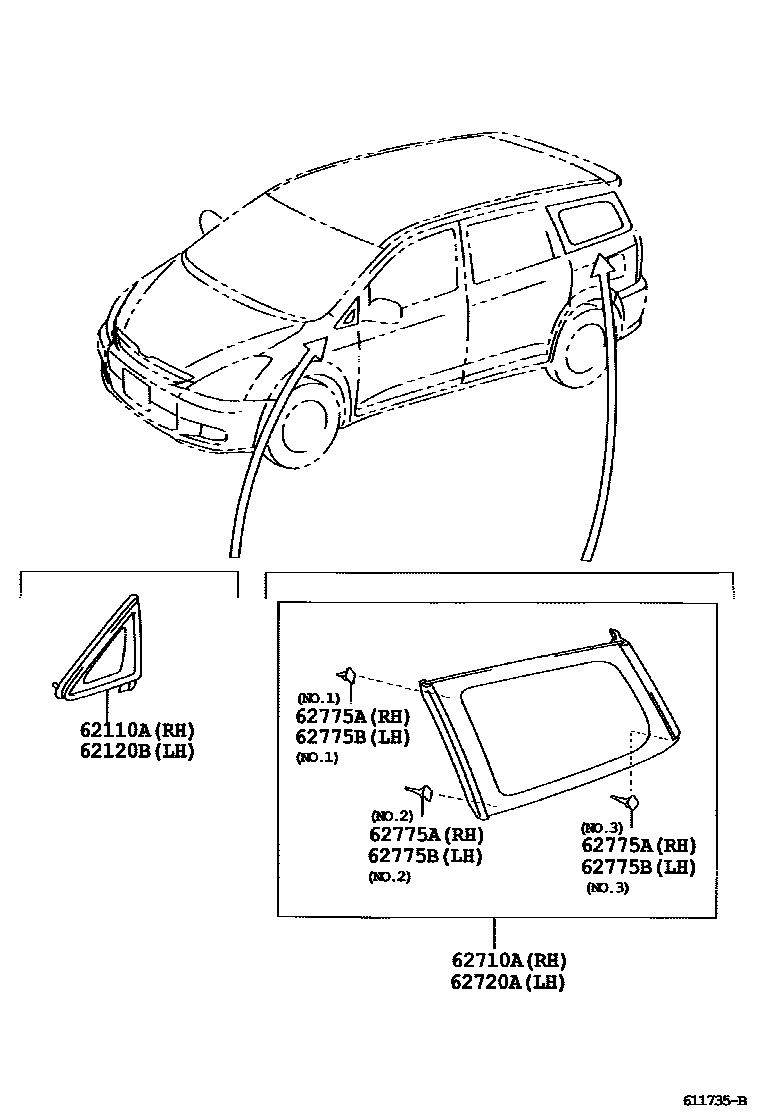

QUARTER WINDOW

62110AWINDOW ASSY, FRONT SIDE FIX, RH

main62110-68010iANE1#,ZNE1#200301-200903

62120BWINDOW ASSY, FRONT SIDE FIX, LH

main62120-68010iANE1#,ZNE1#200301-200903

62710AWINDOW ASSY, QUARTER, RH

main62710-68020iANE1#,ZNE1#200301-200903

main62710-68030iANE1#,ZNE1#200404-200508

main62710-68030iANE1#,ZNE1#200404-200508

main62710-68030iZNE1#200508-200903

main62710-68030iZNE1#200508-200903

main62710-68030iZNE1#200508-200903

main62710-68030iANE1#,ZNE1#200301-200404

62720AWINDOW ASSY, QUARTER, LH

main62720-68020iANE1#,ZNE1#200301-200903

main62720-68030iANE1#,ZNE1#200508-200903

main62720-68030iANE1#,ZNE1#200301-200404

main62720-68030iANE1#,ZNE1#200404-200508

main62720-68030iANE1#,ZNE1#200404-200508

main62720-68030iZNE1#200508-200903

main62720-68030iZNE1#200508-200903

62775ACLIP, QUARTER WINDOW

main62775-68010iANE1#,ZNE1#200301-200903

main62775-68030iANE1#,ZNE1#200301-200903

main62775-68040iANE1#,ZNE1#200301-200903

62775BCLIP, QUARTER WINDOW, LH

main62775-68010iANE1#,ZNE1#200301-200903

main62775-68030iANE1#,ZNE1#200301-200903

main62775-68050iANE1#,ZNE1#200301-200903

6 parts on this diagram · 1 diagram in section
