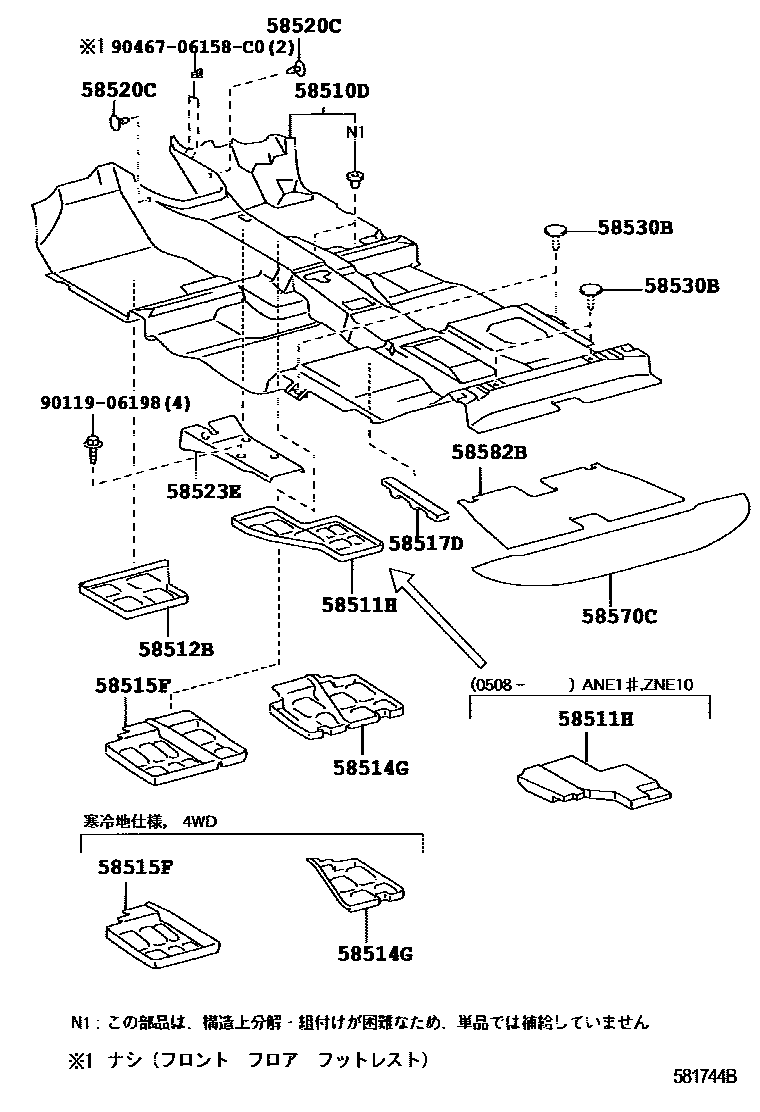

MAT & CARPET

58510DCARPET ASSY, FLOOR, FRONT

main58510-68040-B0iZNE14200301-200903

GRAY,TRIM1#

main58510-68030-B0iANE1#,ZNE10200301-200508

main58510-68050-B0iZNE10200301-200508

58511HMAT, FLOOR, FRONT RH

main58511-68010iZNE14200301-200903

main58511-68020iANE1#,ZNE10200508-200903

58512BMAT, FLOOR, FRONT LH

main58512-68010iANE1#,ZNE1#200301-200903

58514GMAT, FLOOR, REAR RH

main58514-68020iANE1#,ZNE10200301-200903

58515FMAT, FLOOR, REAR LH

main58515-68020iANE1#,ZNE10200301-200903

58517DMAT, REAR FLOOR

main58517-68010iZNE14200301-200903

58520CCLIP(FOR FRONT FLOOR CARPET)

main90467-09110-B3iANE1#,ZNE1#200301-200903

DK.GRAY,TRIM1#

sub90467-09110

58523EBRACKET, FLOOR CARPET SET

main58523-68010iANE1#,ZNE10200301-200903

main58523-68020iZNE14200301-200903

sub58523-68021

58530BCLIP(FOR FRONT FLOOR CARPET)

main90467-07049-B7iANE1#,ZNE1#200301-200903

DK.GRAY,TRIM1#

sub90467-07049

58570CCARPET ASSY, REAR FLOOR

main58571-68010iANE1#,ZNE1#200301-200903

58582BCARPET, 3RD SEAT FLOOR, NO.1

main58582-68010iANE1#,ZNE1#200301-200903

9011906198

main90119-06198

9046706158C0

main90467-06158C0

13 parts on this diagram · 1 diagram in section
