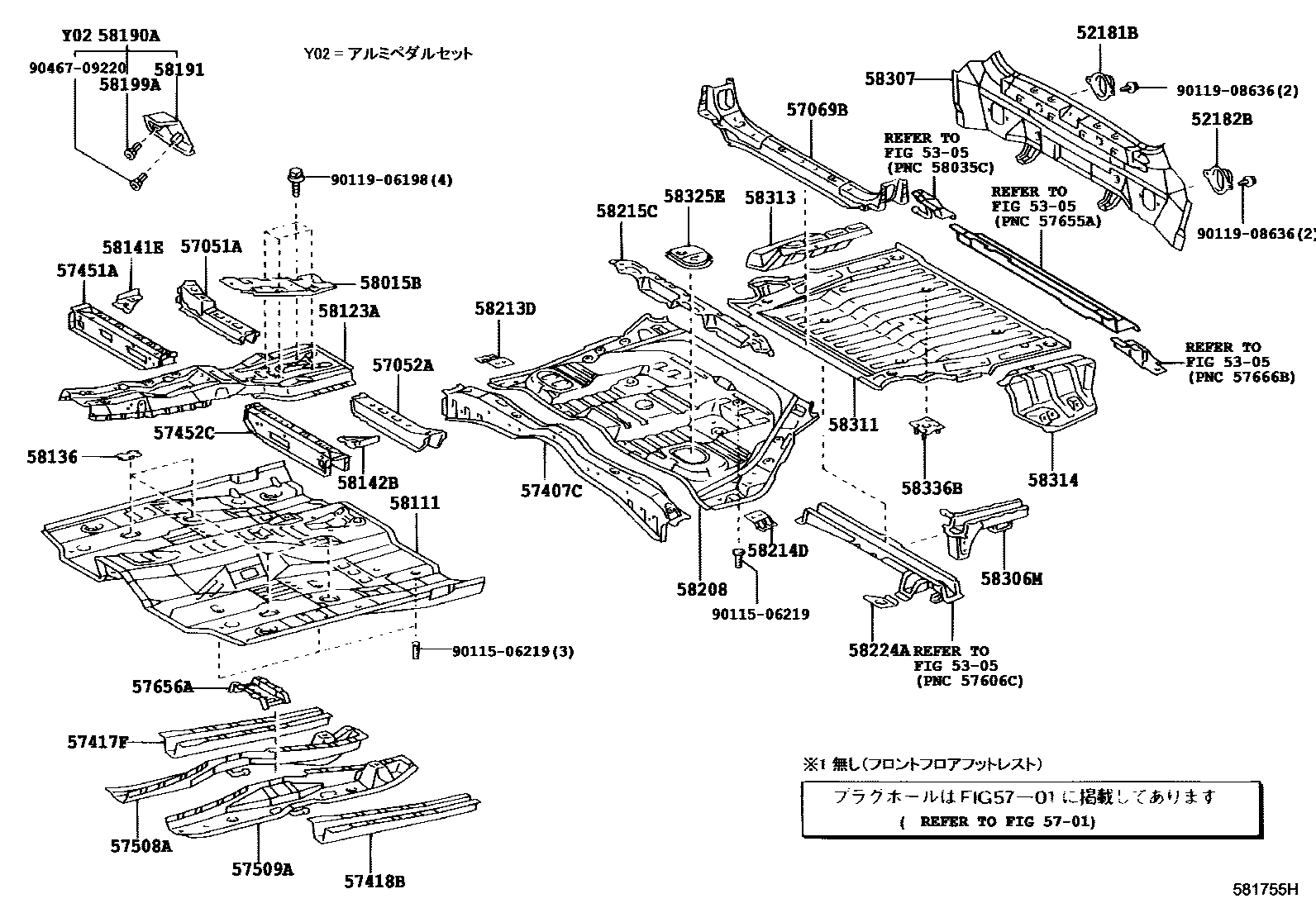

FLOOR PAN & LOWER BACK PANEL
52181BARM, REAR BUMPER, RH
52182BARM, REAR BUMPER LH
5305
5701
57051AMEMBER SUB-ASSY, FRONT FLOOR CROSS, RH
57052AMEMBER SUB-ASSY, FRONT FLOOR CROSS, LH
57069BMEMBER SUB-ASSY, REAR FLOOR CROSS, CENTER
57407CMEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.1
57417FREINFORCEMENT, FRONT FLOOR UNDER, RH
57418BREINFORCEMENT, FRONT FLOOR UNDER, LH
57451AMEMBER, FRONT FLOOR CROSS, RH
57452CMEMBER, FRONT FLOOR CROSS, LH
57508AREINFORCEMENT SUB-ASSY, FRONT FLOOR, RH
57509AREINFORCEMENT SUB-ASSY, FRONT FLOOR, LH
57656ABRACKET, EXHAUST PIPE MOUNTING, NO.1
58015BPANEL SUB-ASSY, FRONT FLOOR HOUSING, FRONT RH
58123ASUPPORT, SHIFT & SELECT LEVER
58136COVER, FRONT FLOOR HOLE
58141EREINFORCEMENT, FRONT SIDE MEMBER TO FLOOR PAN, RH
58142BREINFORCEMNET, FRONT SIDE MEMBER TO FLOOR PAN, LH
58190AREST ASSY, FRONT FLOOR FOOT
58191FOOTREST, FRONT FLOOR
58199ACLIP, FOOTREST, NO.2
58208PAN, CENTER FLOOR
58213DREINFORCEMENT, CENTER FLOOR PANEL
58214DREINFORCEMENT, CENTER FLOOR PANEL, NO.1 LH
58215CREINFORCEMENT, CENTER FLOOR PANEL, NO.2 RH
58224AREINFORCEMENT, FLOOR SIDE PANEL, LH
58306MPANEL SUB-ASSY, REAR FLOOR SIDE
58307PANEL SUB-ASSY, BODY LOWER BACK
58311PAN, REAR FLOOR
sub58311-68011
58313PANEL, REAR FLOOR SIDE, RH
58314PANEL, REAR FLOOR SIDE, LH
58325ECOVER, REAR FLOOR SERVICE HOLE
sub58325-68011
58336BREINFORCEMENT, REAR FLOOR PAN
9011506219
main90115-06219
9011906198
main90119-06198
9011908636
main90119-08636
9046709220
main90467-09220
40 parts on this diagram · 2 diagrams in section
