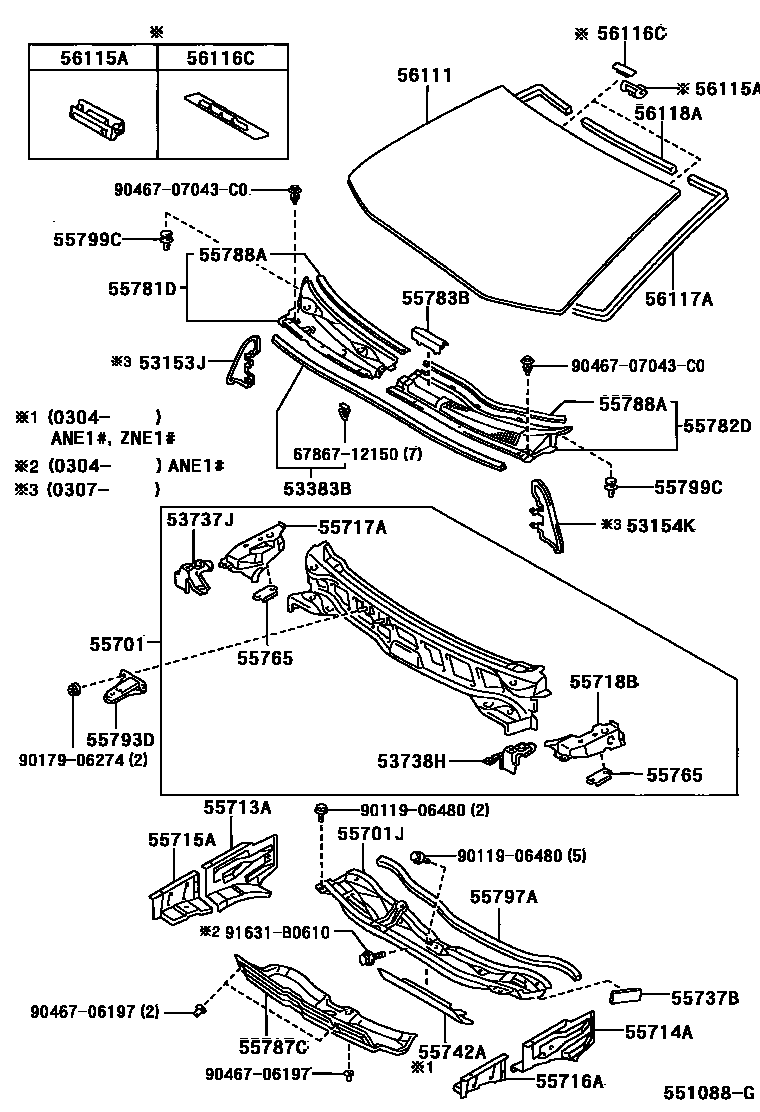

COWL PANEL & WINDSHIELD GLASS

53153JGUIDE, RADIATOR GRILLE SIDE AIR, RH

main53153-68010iANE1#,ZNE1#200508-200903

53154KGUIDE, RADIATOR GRILLE SIDE AIR, LH

main53154-68010iANE1#,ZNE1#200307-200508

53383BSEAL, HOOD TO COWL TOP

main53383-68010iANE1#,ZNE1#200301-200508

53737JPLATE, FRONT APRON TO COWL SIDE MEMBER, RH

main53737-68010iANE1#,ZNE1#200301-200508

53738HPLATE, FRONT APRON TO COWL SIDE MEMBER, LH

main53738-68010iANE1#,ZNE1#200508-200903

55701PANEL SUB-ASSY, COWL

main55700-68011iANE1#,ZNE1#200301-200311

main55700-68012iANE1#,ZNE1#200311-200508

55701JPANEL SUB-ASSY, COWL TOP, OUTER

main55701-68010iANE1#,ZNE1#200301-200309

main55701-68011iANE1#,ZNE1#200309-200508

55713APANEL, COWL TOP SIDE, RH

main55713-68010iANE1#,ZNE1#200301-200508

55714APANEL, COWL TOP SIDE, LH

main55714-68010iANE1#,ZNE1#200301-200508

55715ABRACE, COWL TOP TO APRON, RH

main55715-68010iANE1#,ZNE1#200301-200508

sub55715-44040

55716ABRACE, COWL TOP TO APRON, LH

main55716-68010iANE1#,ZNE1#200301-200508

55717APANEL, COWL TOP SIDE, INNER RH

main55717-68010iANE1#,ZNE1#200301-200508

55718BPANEL, COWL TOP SIDE, INNER LH

main55718-68010iANE1#,ZNE1#200508-200903

55737BSEAL, HEATER AIR DUCT SPLASH SHIELD, NO.1

main55737-68010×2iANE1#,ZNE1#200508-200903

55742ASHEET, COWL TOP INSULATOR

main55742-68010iANE1#,ZNE1#200304-200309

main55742-68011iANE1#,ZNE1#200309-200508

55765BRACKET, HOOD DAMPER MOUNTING

main55765-44010×2iANE1#,ZNE1#200301-200508

55781DLOUVER, COWL TOP VENTILATOR, RH

main55708-68010iANE1#,ZNE1#200301-200508

55782DLOUVER, COWL TOP VENTILATOR, LH

main55709-68020supersedes 55709-68010iANE1#,ZNE1#200508-200903

55783BLOUVER, COWL TOP VENTILATOR, CENTER NO.1

main55783-68010iANE1#,ZNE1#200508-200903

55787CINSULATOR, COWL TOP PANEL, NO.1

main55787-68010iANE1#,ZNE1#200301-200309

main55787-68011iANE1#,ZNE1#200508-200903

55788APROTECTOR, COWL TOP VENTILATOR LOUVER

main55788-68010iANE1#,ZNE1#200508-200903

main55789-68010iANE1#,ZNE1#200301-200508

55793DBRACKET, WEATHERSTRIP WIPER PIVOT GUIDE, NO.1

main55793-68010iANE1#,ZNE1#200301-200508

55797ASEAL, COWL WATER EXTRACT

main55797-68010iANE1#,ZNE1#200301-200508

55799CCLIP, COWL TOP VENTILATOR LOUVER

main55799-68011×2iANE1#,ZNE1#200508-200903

56111GLASS, WINDSHIELD

main56101-68020supersedes 56101-68011iANE1#,ZNE1#200301-200401

main56101-68021supersedes 56101-68011iZNE1#200603-200903

main56101-68040supersedes 56101-68011iZNE1#200706-200806

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-30100×2iANE1#,ZNE1#200508-200903

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56116-22050×2iANE1#,ZNE1#200508-200903

56117ADAM, WINDOW GLASS ADHESIVE

56118ADAM, WINDOW GLASS ADHESIVE, NO.2

6786712150CLIP, DOOR WEATHERSTRIP

main67867-12150

9011906480

main90119-06480

9017906274

main90179-06274

9046706197

main90467-06197

9046707043C0

main90467-07043C0

91631B0610

main91631-B0610

35 parts on this diagram · 1 diagram in section
