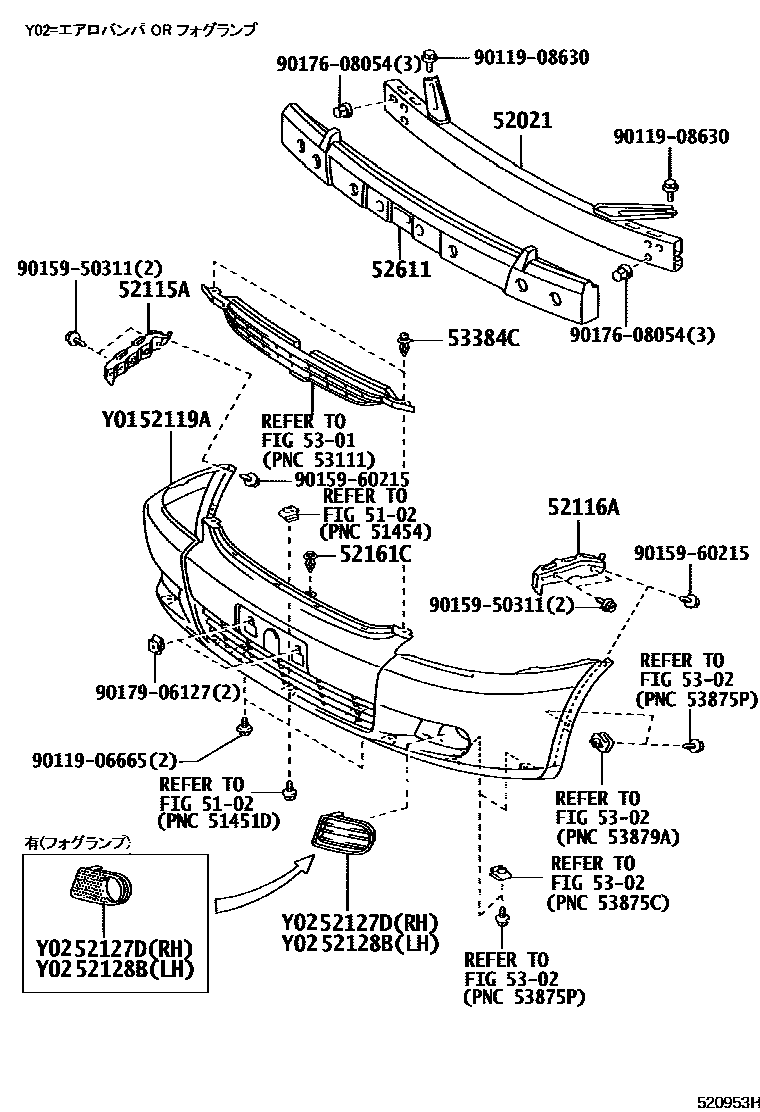

FRONT BUMPER & BUMPER STAY
5102
52021REINFORCEMENT SUB-ASSY, FRONT BUMPER
sub52021-68020
52115ASUPPORT, FRONT BUMPER SIDE, RH
52116ASUPPORT, FRONT BUMPER SIDE, LH
52119ACOVER, FRONT BUMPER
52127DCOVER, FRONT BUMPER HOLE, RH
52128BCOVER, FRONT BUMPER HOLE, LH
52161CPIECE, FRONT BUMPER
52611ABSORBER, FRONT BUMPER ENERGY
5301
5302
53384CCUSHION, HOOD, CENTER
9011906665
main90119-06665
9011908630
main90119-08630
9015950311
main90159-50311
9015960215
main90159-60215
9017608054
main90176-08054
9017906127
main90179-06127
18 parts on this diagram · 4 diagrams in section
