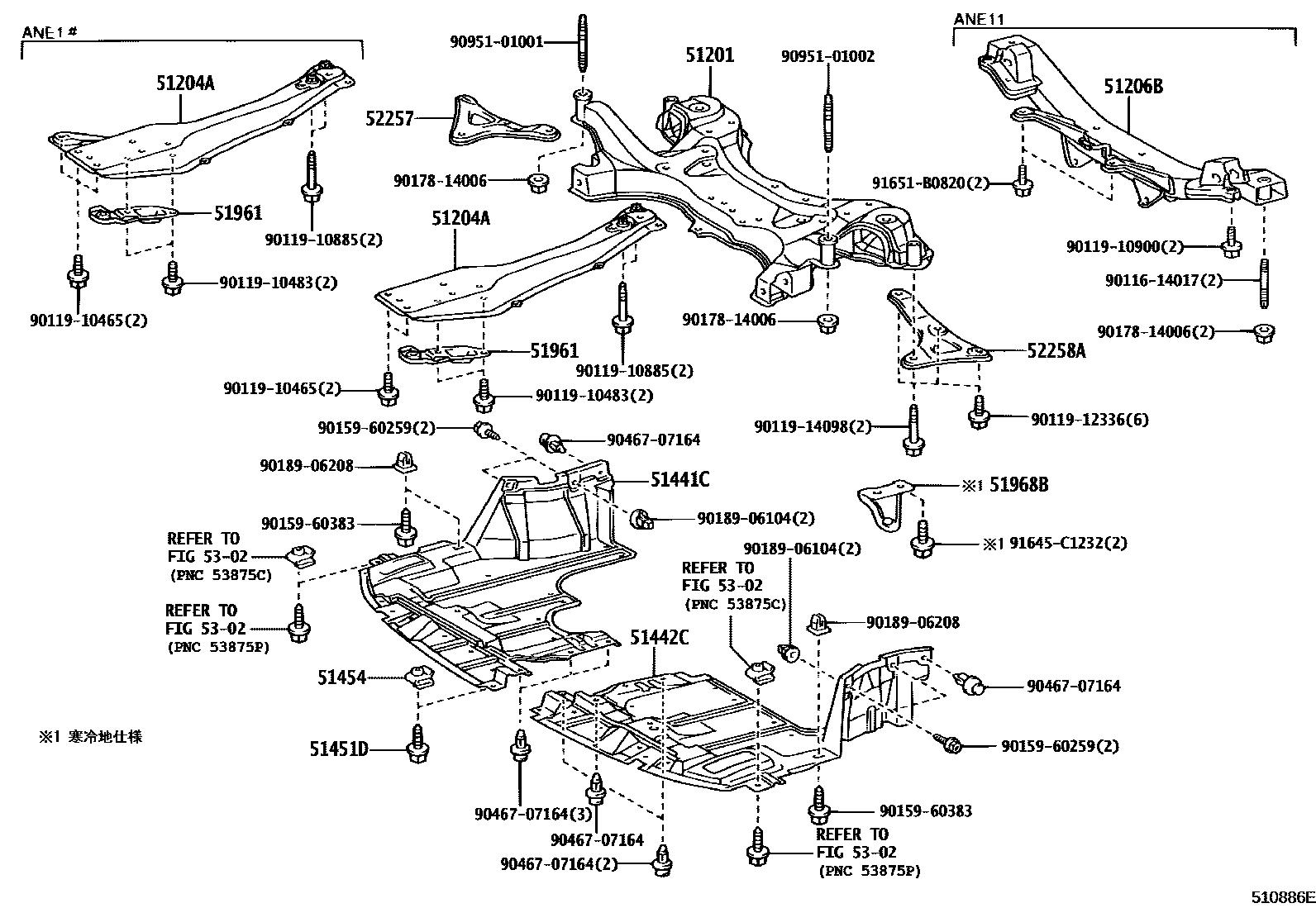

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1 0002 1

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-20360iZNE10200301-200303

sub51201-20361

main51201-20361iANE1#,ZNE10200303-200903

sub51201-0M010

sub51201-20362

main51201-20370iZNE14200301-200903

sub51201-20371

51204AMEMBER SUB-ASSY, ENGINE MOUNTING, CENTER

main51204-21030iANE1#200304-200903

main51204-44010iZNE10200301-200903

main51204-44020iZNE14200301-200903

51206BCROSSMEMBER SUB-ASSY, FRAME, NO.6

main51206-68010iANE11200304-200903

sub51206-68011

main51206-68020iZNE14200301-200303

sub51206-68021

main51206-68021iZNE14200303-200902

sub51206-68022

51441CCOVER, ENGINE UNDER, RH

main51441-68010iANE1#,ZNE1#200301-200903

51442CCOVER, ENGINE UNDER, LH

main51442-68010iANE1#,ZNE1#200301-200903

51451DSCREW, NO.1

main90159-60215iANE1#,ZNE1#200301-200903

51454CLIP

main90467-05114iANE1#,ZNE1#200508-200903

main90467-05138iANE1#,ZNE1#200301-200508

51961HOOK, NO.1

main51963-32040iANE1#,ZNE1#200301-200903

51968BHOOK, TRANSPORT, REAR LH

main51968-68010iANE1#,ZNE1#200301-200803

sub51968-68011

main51968-68011iANE1#,ZNE1#200804-200903

52257BRACE, FRONT SUSPENSION MEMBER, REAR RH

main52257-20070iANE1#,ZNE1#200301-200903

sub52257-20071

52258ABRACE, FRONT SUSPENSION MEMBER, REAR LH

main52258-20070iANE1#,ZNE1#200301-200903

sub52258-20071

5302

9011614017

main90116-14017

9011910465

main90119-10465

9011910483

main90119-10483

9011910885

main90119-10885

9011910900

main90119-10900

9011912336

main90119-12336

9011914098

main90119-14098

9015960259

main90159-60259

9015960383

main90159-60383

9017814006

main90178-14006

9018906104

main90189-06104

9018906208

main90189-06208

9046707164

main90467-07164

9095101001

main90951-01001

9095101002

main90951-01002

91645C1232

main91645-C1232

91651B0820

main91651-B0820

29 parts on this diagram · 2 diagrams in section
