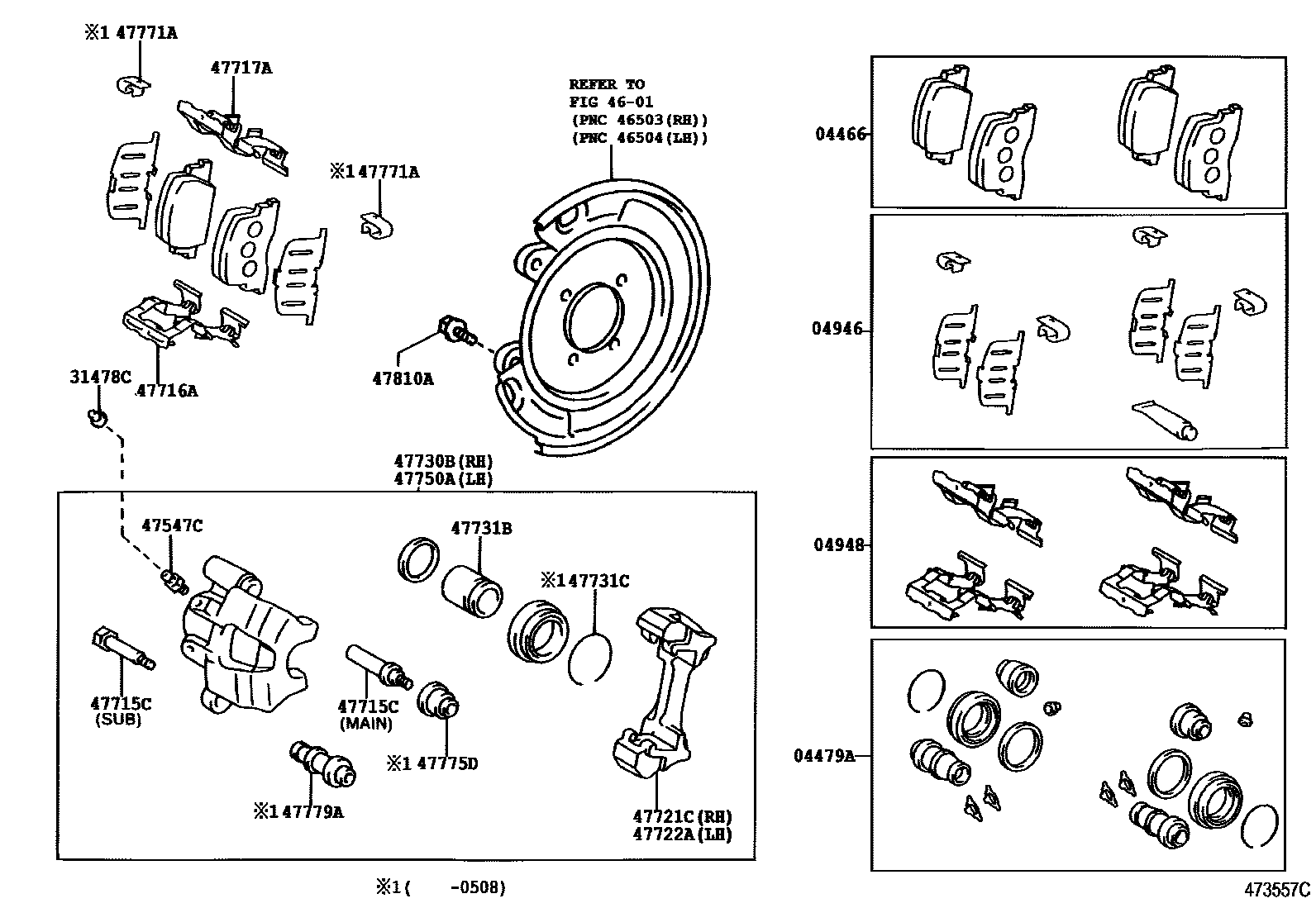

REAR DISC BRAKE CALIPER & DUST COVER

04466PAD KIT, DISC BRAKE, REAR

main04466-21010i200301-200508

main04466-48020i200304-200508

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-48030i200301-200508

04946SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)

main04946-33020i200301-200508

main04946-48030i200508-200903

04948FITTING KIT, DISC BRAKE, REAR

main04948-48010i200301-200508

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-30010×2i200301-200508

4601

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47547-20010×2i200508-200903

47715CPIN, CYLINDER SLIDE(FOR REAR DISC BRAKE)

main47715-32020×2i200301-200508

main47715-32030×2i200301-200508

47716APLATE, PAD SUPPORT, NO.1(FOR REAR DISC BRAKE)

main47716-48020×2i200301-200508

47717APLATE, PAD SUPPORT, NO.2(FOR REAR DISC BRAKE)

main47717-48020×2i200301-200508

47721CMOUNTING, REAR DISC BRAKE CYLINDER, RH

main47721-21030i200301-200508

sub47715-32040

sub47721-21031

sub47722-21031

sub47771-32050

sub47875-30340

47722AMOUNTING, REAR DISC BRAKE CYLINDER, LH

main47721-21030i200301-200508

sub47715-32040

sub47721-21031

sub47722-21031

sub47771-32050

sub47875-30340

47730BCYLINDER ASSY, REAR DISC BRAKE, RH

main47730-21040i200301-200508

47731BPISTON, REAR DISC BRAKE

main47731-48020×2i200301-200508

sub47731-30120

47731CRING, SET(FOR REAR DISC BRAKE PISTON)

main90520-52006×2i200301-200508

47750ACYLINDER ASSY, DISC BRAKE, REAR LH

main47750-21040i200301-200508

47771APLATE, PAD WEAR INDICATOR(FOR REAR DISC BRAKE)

main47771-32030×4i200301-200508

47775DBOOT, BUSH DUST(FOR REAR DISC BRAKE)

main47775-32050×2i200301-200508

47779ABUSH, CYLINDER SLIDE, NO.2(FOR REAR DISC BRAKE)

main47779-32030×2i200301-200508

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main90119-10379×4i200301-200508

20 parts on this diagram · 2 diagrams in section
