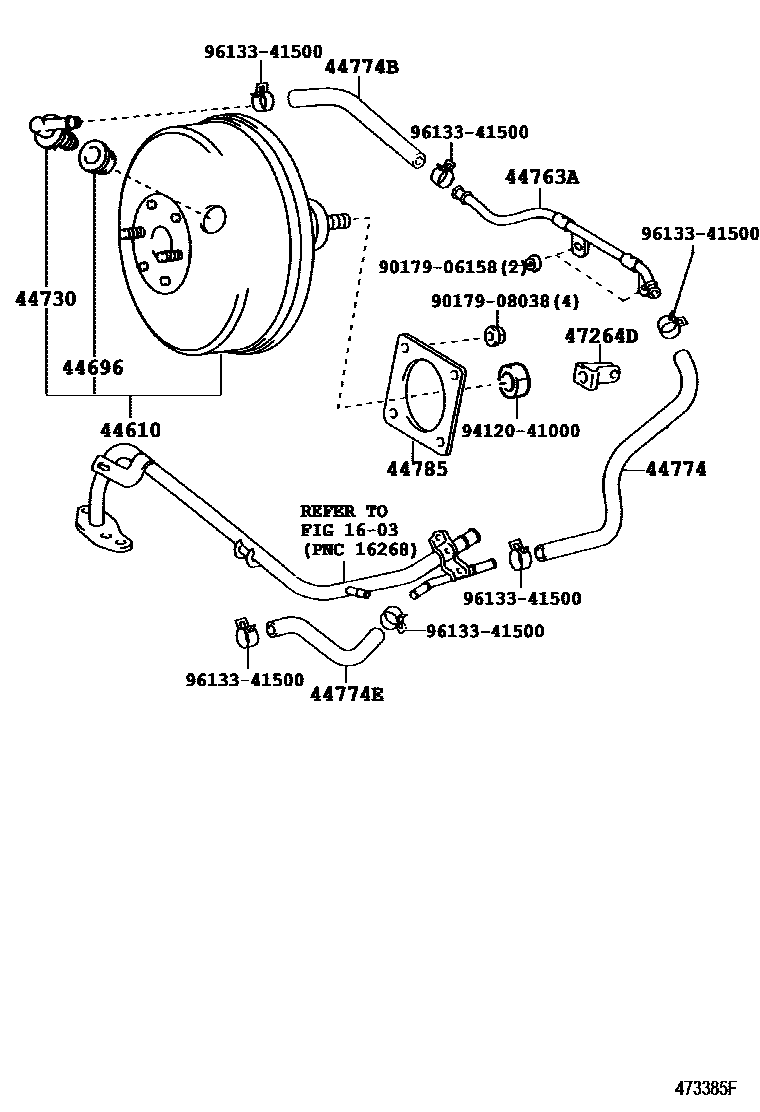

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1

1603

44610BOOSTER ASSY, BRAKE

main44610-68020iZNE14200508-200903

main44610-68030iANE10200304-200508

main44610-68031iANE10200603-200903

main44610-68040iANE11200304-200508

main44610-68050supersedes 44610-68011iZNE10200508-200602

main44610-68051supersedes 44610-68011iZNE10200603-200903

44696GROMMET, CHECK VALVE

main90480-24439iANE1#,ZNE1#200301-200508

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-12070iZNE1#200301-200508

main44730-22150iANE1#200304-200508

44763ATUBE, HOSE TO HOSE, NO.1

main44763-20230iZNE1#200301-200508

44774HOSE, UNION TO CONNECTOR TUBE

main44774-12420iZNE1#200301-200508

44774BHOSE, UNION TO CONNECTOR TUBE

main44774-20320iZNE1#200301-200508

44774EHOSE, UNION TO CONNECTOR TUBE

main44774-20310iZNE1#200301-200508

44785GASKET, BRAKE BOOSTER

main44785-20020iANE1#,ZNE1#200301-200508

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-63010iANE1#,ZNE1#200301-200508

9017906158

main90179-06158

9017908038

main90179-08038

9412041000

main94120-41000

9613341500

main96133-41500

14 parts on this diagram · 2 diagrams in section
