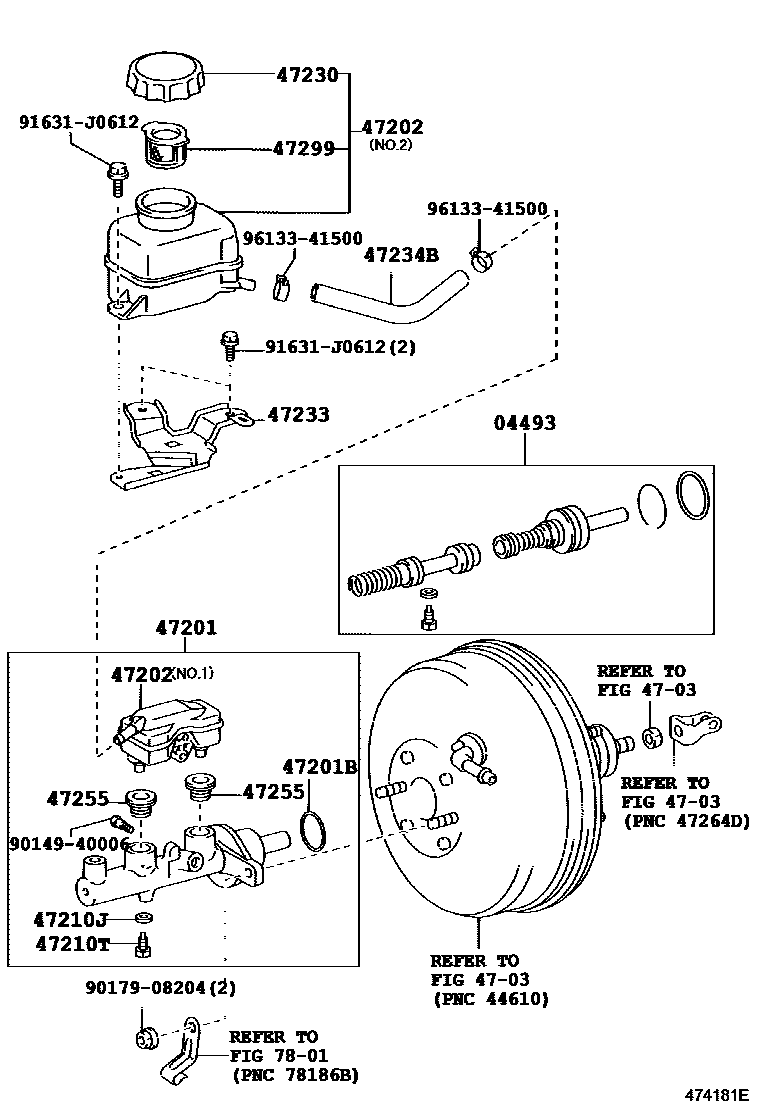

BRAKE MASTER CYLINDER

0001 1 0002 1

04493CYLINDER KIT, BRAKE MASTER

main04493-33110iANE10,ZNE1#200301-200903

main04493-33120iANE11200304-200903

4703

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-68010iANE10,ZNE1#200301-200903

main47201-68020iANE11200304-200903

47201BRING, O(FOR BRAKE MASTER CYLINDER)

main90029-20059iANE1#,ZNE1#200301-200903

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47220-48130iANE1#,ZNE1#200301-200903

main47220-68010iANE1#,ZNE1#200301-200903

47210JGASKET(FOR MASTER CYLINDER)

main90029-43001iANE10,ZNE1#200301-200903

47210TBOLT(FOR BRAKE MASTER CYLINDER)

main90109-06077iANE10,ZNE1#200301-200903

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-20100iANE1#,ZNE1#200301-200903

sub47230-47090

47233BRACKET, RESERVOIR

main47233-68010iANE1#,ZNE1#200301-200903

47234BTUBE, RESERVOIR, NO.1

main47234-68010iZNE1#200301-200903

main47234-68020iANE1#200304-200903

47255GROMMET, MASTER CYLINDER RESERVOIR

main47255-16010iANE1#,ZNE1#200301-200903

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-20060iANE1#,ZNE1#200301-200903

7801

9014940006

main90149-40006

9017908204

main90179-08204

91631J0612

main91631-J0612

9613341500

main96133-41500
