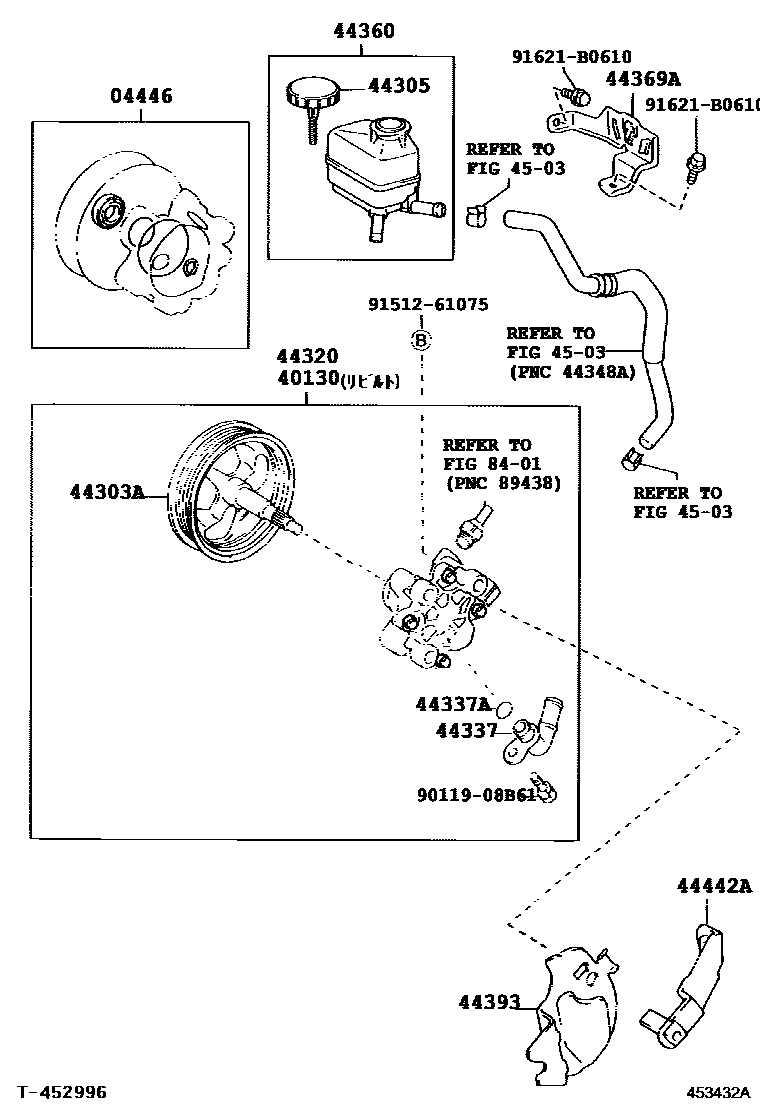

VANE PUMP & RESERVOIR (POWER STEERING)

0001 1 0002 1

04446GASKET KIT, POWER STEERING PUMP

main04446-32050iANE11,ZNE14¥970200301-200903

40130PUMP ASSY,VANE REBUILT

main40130-20860iZNE14¥66,500200301-200903

sub44310-20860¥94,600

main40130-20870iANE11¥66,500200304-200903

sub44310-20870¥94,600

44303ASHAFT SUB-ASSY, W/PULLEY

main44303-28010iANE11¥5,400200304-200903

main44303-32010iZNE14¥8,200200301-200903

44305CAP SUB-ASSY, VANE PUMP OIL RESERVOIR

main44305-20041iANE11,ZNE14¥2,240200301-200711

sub44305-20050¥2,230

main44305-20050iANE11,ZNE14¥2,230200712-200903

44320PUMP ASSY, VANE

main44310-20860iZNE14¥94,600200301-200903

main44310-20870iANE11¥94,600200304-200903

44337UNION, POWER STEERING SUCTION PORT

main44337-32110iANE11,ZNE14¥1,430200301-200903

44337ARING, O(FOR POWER STEERING SUCTION PORT)

main90301-11020iANE11,ZNE14¥140200301-200903

44360RESERVOIR ASSY, VANE PUMP OIL

main44360-20150iANE11,ZNE14¥10,400200301-200903

44369ABRACKET, OIL RESERVOIR, NO.1

main44390-20060iANE11,ZNE14¥1,210200301-200903

44393INSULATOR, POWER STEERING PUMP HEAT

main44393-42010iZNE14¥850200302-200903

main44393-63010iZNE14¥700200301-200302

44442ABRACKET, VANE PUMP, REAR

main44442-12040iZNE14¥670200301-200903

main44442-21010iANE11¥510200304-200903

4503

8401

9011908B61

main90119-08B61¥60

9151261075

main91512-61075¥220

91621B0610

main91621-B0610¥120

16 parts on this diagram · 2 diagrams in section
