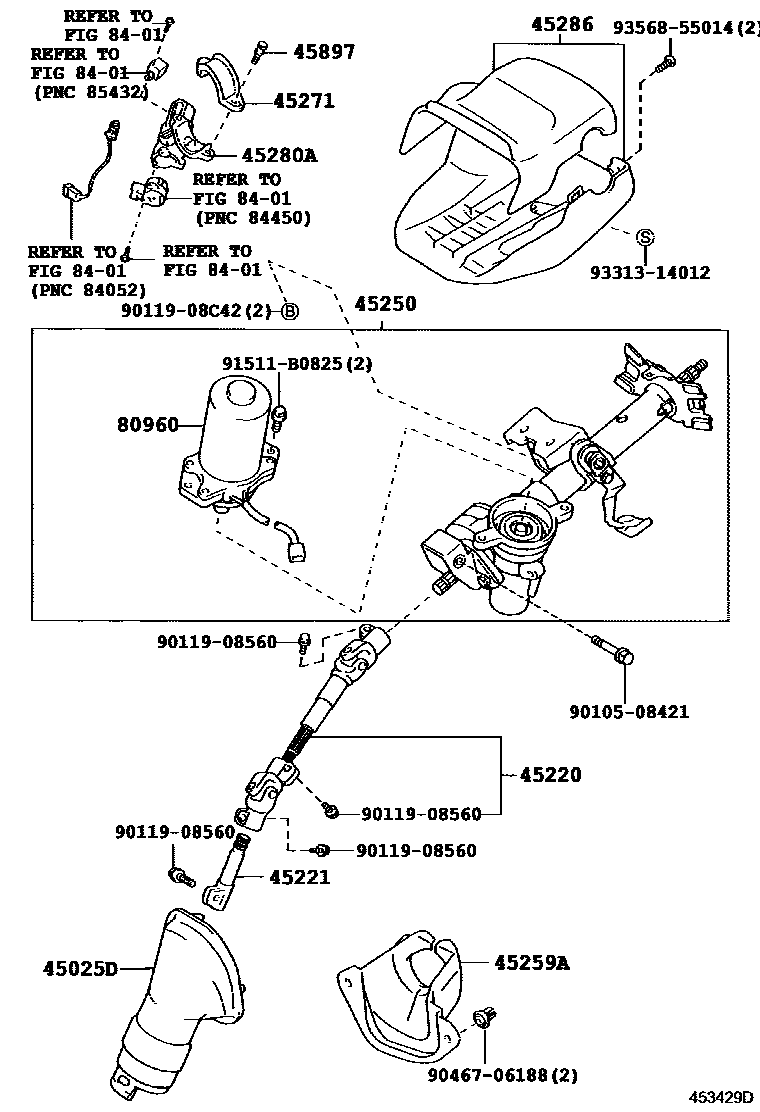

STEERING COLUMN & SHAFT

0001 1 0002 1 0003 1

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-13050iANE10,ZNE10200301-200903

main45025-20500iANE11200304-200903

main45025-20510iZNE14200301-200903

45220SHAFT ASSY, STEERING INTERMEDIATE

main45220-68010iANE10,ZNE10200301-200506

sub45220-68011

main45220-68011iANE10,ZNE10200506-200507

sub45220-68012

main45220-68012iANE10,ZNE10200507-200510

sub45220-68013

main45220-68013iANE10,ZNE10200511-200903

main45220-68020iANE11200304-200903

main45220-68030iZNE14200301-200903

45221SHAFT, STEERING INTERMEDIATE

main45221-12280iANE10,ZNE10200301-200408

sub45221-12281

main45221-12281iANE10,ZNE10200408-200903

sub45221-47041

main45221-12291iANE11200304-200903

45250COLUMN ASSY, STEERING

main45250-1E200iANE11,ZNE14200301-200903

main45250-68030iZNE10200301-200304

sub45250-68070

main45250-68040iZNE10200301-200304

sub45250-68080

main45250-68070iANE10,ZNE10200304-200406

sub45250-68071

main45250-68071iANE10,ZNE10200407-200903

main45250-68080iANE10,ZNE10200304-200406

sub45250-68081

main45250-68081iANE10,ZNE10200407-200508

45259ASHEET, COLUMN HOLE COVER SILENCER

main45259-68010iANE1#,ZNE1#200301-200903

45271CLAMP, STEERING COLUMN, UPPER

main45271-16020iANE1#,ZNE1#200301-200903

45280ABRACKET ASSY, STEERING COLUMN, UPPER

main45280-42110iANE11,ZNE14200301-200903

sub45280-42120

main45280-68010iANE10,ZNE10200301-200903

45286COVER, STEERING COLUMN

main45286-12967-B2iZNE1#200301-200508

DK.GRAY,TRIM1#

sub45286-12967

main45286-12967-C0iZNE1#200508-200903

BLACK,TRIM1#

sub45286-12967

main45286-12970-B0iZNE1#200301-200508

sub45286-12970

main45286-12970-B0iANE1#200304-200508

DK.GRAY,TRIM1#

sub45286-12970

main45286-12970-C0iZNE1#200806-200903

sub45286-12970

main45286-12970-C0iZNE1#200806-200903

sub45286-12970

main45286-12970-C0iZNE1#200706-200806

sub45286-12970

main45286-12970-C0iZNE1#200508-200703

sub45286-12970

main45286-12970-C0iZNE1#200703-200706

sub45286-12970

main45286-12970-C0iZNE1#200706-200806

sub45286-12970

main45286-12970-C0iANE1#200508-200903

BLACK,TRIM1#

sub45286-12970

main45286-12970-C0iZNE1#200703-200903

sub45286-12970

45897BOLT, STEERING LOCK SET

main45897-12020iANE1#,ZNE1#200301-200903

80960MOTOR ASSY, POWER STEERING

main80960-44010iANE10,ZNE10200407-200903

main80960-68010iANE10,ZNE10200301-200407

sub80960-44010

8401

9010508421

main90105-08421

9011908560

main90119-08560

9011908C42

main90119-08C42

9046706188

main90467-06188

91511B0825

main91511-B0825

9331314012

main93313-14012

9356855014

main93568-55014

18 parts on this diagram · 3 diagrams in section
