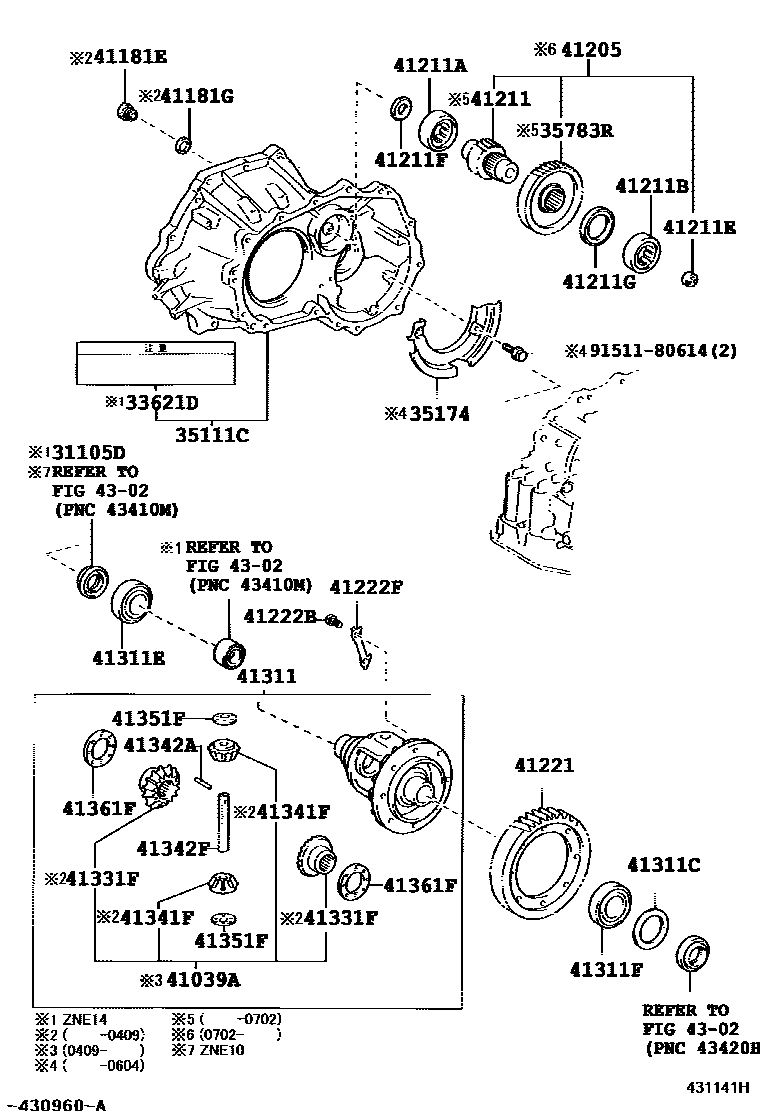

FRONT AXLE HOUSING & DIFFERENTIAL

31105DSEAL, OIL, NO.1(FOR FRONT TRANSAXLE CASE)

main90311-49002iZNE14200508-200903

33621DLABEL, TRANSAXLE OIL INFORMATION

main33621-12150iZNE14200301-200508

35111CHOUSING, TRANSAXLE

main35105-20160iZNE10200508-200512

main35105-20161iZNE10200601-200903

main35105-63020iZNE14200301-200508

35174SEPARATOR, TRANSAXLE HOUSING OIL

main35174-20010iZNE10200301-200508

main35174-63010iZNE14200508-200604

35783RGEAR, COUNTER DRIVEN

main35783-52020iZNE1#200301-200508

sub41205-52011

sub41205-52031

41039AGEAR KIT, DIFFERENTIAL

main41039-32020iZNE1#200409-200508

main41039-32021iZNE1#200508-200903

41181EPLUG (FOR FRONT DIFFERENTIAL DRAIN)

main90341-18021iZNE1#200301-200409

41181GGASKET (FOR FRONT DIFFERENTIAL DRAIN PLUG)

main90430-18008iZNE1#200301-200409

41205PINION SUB-ASSY, DIFFERENTIAL DRIVE

main41205-52021iZNE1#200702-200903

41211PINION, DIFFERENTIAL DRIVE

main41211-52040iZNE1#200301-200508

41211ABEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION FRONT)

main90365-35004iZNE1#200301-200508

41211BBEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION REAR)

main90365-35003iZNE1#200301-200508

41211EPLUG(FOR DIFFERENTIAL DRIVE PINION)

main90331-17017iZNE1#200508-200903

41211FBEARING, THRUST NEEDLE ROLLER(FOR FRONT DRIVE PINION RH)

main90374-18005iZNE1#200508-200903

41211GBEARING, THRUST NEEDLE ROLLER(FOR FRONT DRIVE PINION LH)

main90374-45001iZNE1#200301-200508

41221GEAR, FRONT DIFFERENTIAL RING

main41221-52090iZNE1#200301-200508

sub41221-52091

41222BBOLT (FOR FRONT DIFFERENTIAL RING GEAR SET)

main90101-11003×8iZNE1#200301-200508

41222FPLATE, FORNT DIFFERENTIAL RING GEAR SET BOLT LOCK

main41222-32010×4iZNE1#200301-200508

41311CASE, FRONT DIFFERENTIAL

main41301-12210iZNE10200301-200508

main41301-63020iZNE14200508-200903

41311CSHIM (FOR FRONT DIFFERENTIAL CASE REAR)

main90564-49001iZNE1#200508-200903

main90564-49002iZNE1#200508-200903

main90564-49003iZNE1#200508-200903

main90564-49004iZNE1#200508-200903

main90564-49005iZNE1#200301-200508

main90564-49006iZNE1#200508-200903

main90564-49007iZNE1#200508-200903

main90564-49008iZNE1#200508-200903

main90564-49009iZNE1#200508-200903

main90564-49010iZNE1#200301-200508

main90564-49011iZNE1#200508-200903

main90564-49012iZNE1#200508-200903

main90564-49013iZNE1#200508-200903

main90564-49014iZNE1#200301-200508

main90564-49015iZNE1#200508-200903

main90564-49016iZNE1#200301-200508

main90564-49017iZNE1#200301-200508

main90564-49018iZNE1#200301-200508

main90564-49019iZNE1#200508-200903

41311EBEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE FRONT)

main90366-40016iZNE10200508-200903

main90366-50045iZNE14200508-200903

41311FBEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE REAR)

main90366-44001iZNE1#200301-200508

41331FGEAR, FRONT DIFFERENTIAL SIDE

main41331-32010×2iZNE1#200301-200409

41341FPINION, FRONT DIFFERENTIAL

main41341-30011×2iZNE1#200301-200409

41342APIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT)

main90250-06058iZNE1#200301-200508

41342FSHAFT, FRONT DIFFERENTIAL PINION, NO.1

main41342-32020iZNE10200301-200508

sub41342-52060

main41342-32030iZNE14200301-200508

41351FWASHER, FRONT DIFFERENTIAL PINION THRUST

main41351-32010×2iZNE1#200508-200903

41361FWASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1

main41361-17010×2iZNE1#200301-200508

main41361-17020×2iZNE1#200301-200508

main41361-17030×2iZNE1#200301-200508

main41361-17040×2iZNE1#200301-200508

main41361-17050×2iZNE1#200301-200508

main41361-17060×2iZNE1#200301-200508

4302

9151180614

main91511-80614

30 parts on this diagram · 1 diagram in section
