VENTILATION HOSE

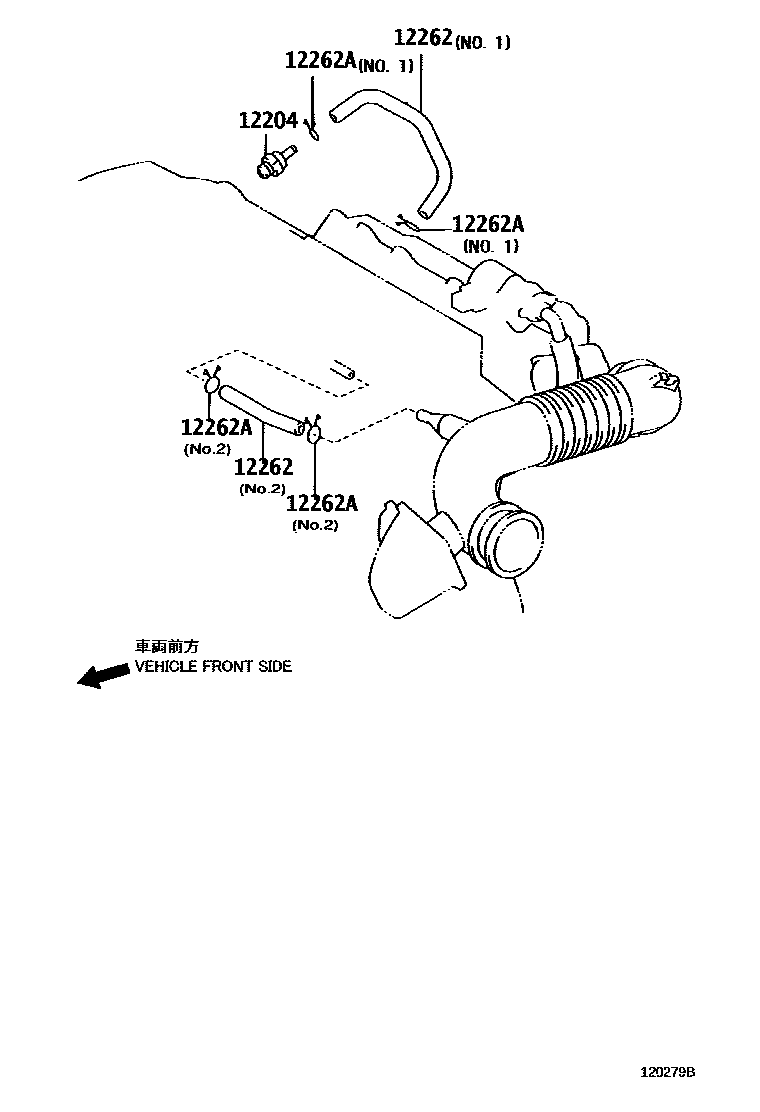

Parts diagram

12204VALVE SUB-ASSY, VENTILATION

main12204-22050i200301-200405

main12204-22051i200405-200508

main12204-28020i200508-200903

12262HOSE, VENTILATION, NO.2

main12262-0D050i200508-200903

main12262-22040i200508-200903

main12262-28030i200304-200508

main12262-28040i200304-200508

12262ACLIP(FOR VENTILATION HOSE NO.2)

main90466-18002i200508-200903

main90467-13103i200301-200508

main90467-19003×2i200304-200508

3 parts on this diagram · 3 diagrams in section
