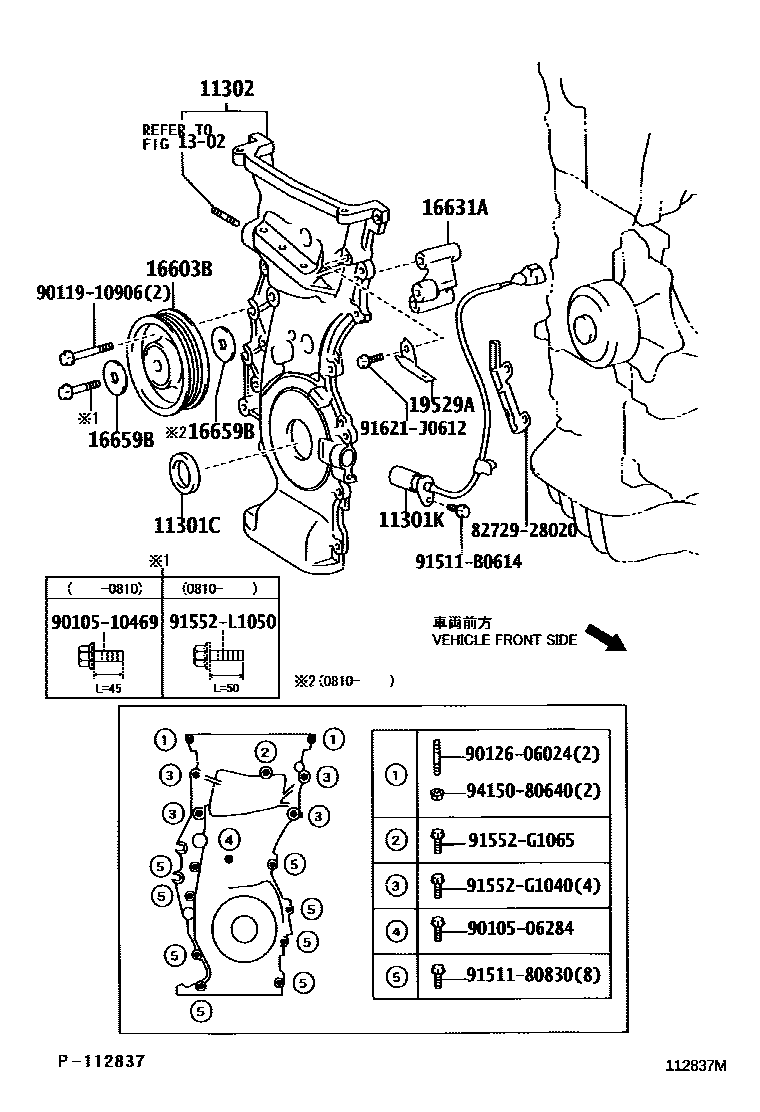

TIMING GEAR COVER & REAR END PLATE

0001 1 0002 1

11301CSEAL, OIL(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)

main90311-38089i1AZFSE..ANE1#200304-200508

11301KSENSOR, CRANK POSITION

main90919-05030i1ZZFE..ZNE1#200508-200903

main90919-05047i1AZFSE..ANE1#200508-200903

11302COVER SUB-ASSY, TIMING CHAIN OR BELT

main11310-28081i1AZFSE..ANE1#200304-200508

main11310-28082i1AZFSE..ANE1#200508-200903

main11321-0D030i1ZZFE..ZNE1#200301-200508

main11321-22021i1ZZFE..ZNE1#200301-200508

1302

16603BPULLEY SUB-ASSY, IDLER

main16603-28020i1AZFSE..ANE10200304-200508

16631ABRACKET, IDLER PULLEY

main16631-28010i1AZFSE..ANE10200304-200508

main16631-28031i1AZFSE..ANE10200810-200903

16659BPLATE, IDLER PULLEY COVER, NO.2

main16659-31010i1AZFSE..ANE10200304-200312

main16659-31011i1AZFSE..ANE10200312-200508

19529ACLAMP

main19529-28010i1AZFSE..ANE1#200304-200508

8272928020

main82729-28020

9010506284

main90105-06284

9010510469

main90105-10469

9011910906

main90119-10906

9012606024

main90126-06024

9151180830

main91511-80830

91511B0614

main91511-B0614

91552G1040

main91552-G1040

91552G1065

main91552-G1065

91552L1050

main91552-L1050

91621J0612

main91621-J0612

9415080640

main94150-80640

20 parts on this diagram · 2 diagrams in section
