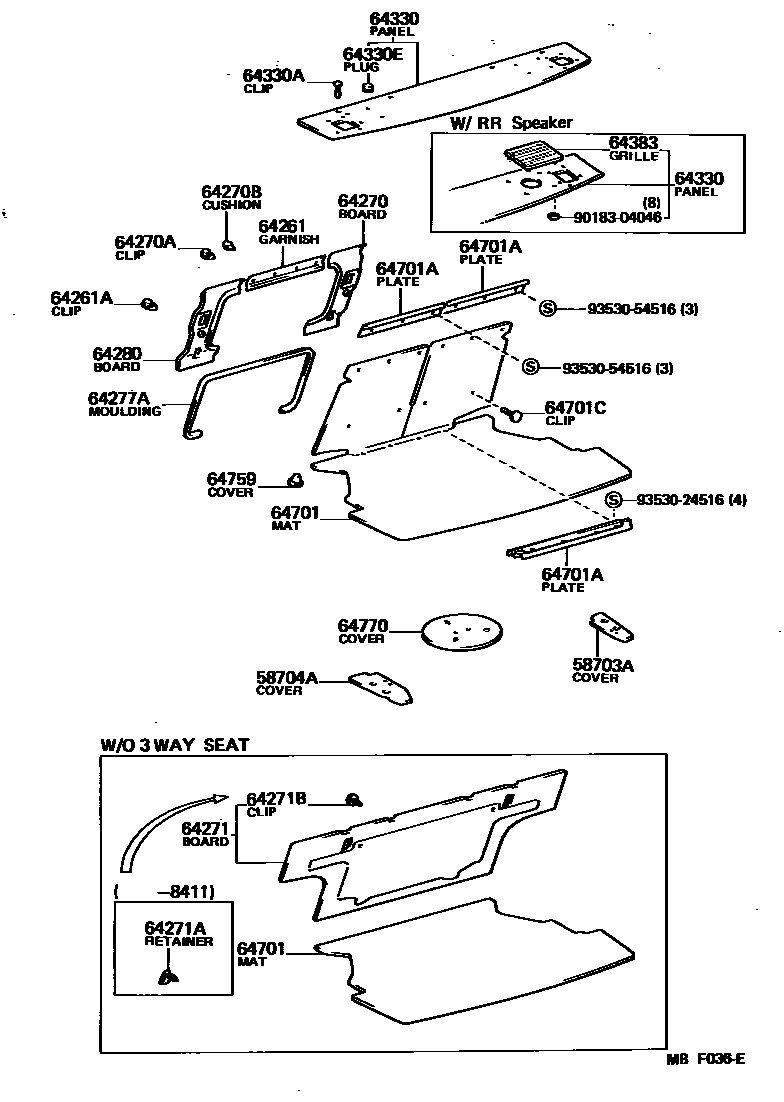

PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT

58703ACOVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, RH

main58703-12010iAE8#..2D..(APX,SE)198305-198704

58704ACOVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, LH

main58704-12010iAE8#..2D..(APX,SE)198305-198505

main58704-12011iAE8#..2D198505-198704

64261GARNISH, ROOM PARTITION

main64261-12020-02iAE8#..2D..(APX,SE)198305-198505

DEEP MAROON,RED/MAROON,TRIM3#

main64261-12020-04iAE8#..2D..(APX,SE)198305-198505

BLUE,BLUE,TRIM8#

main64261-12021iAE86..2D..APX198505-198704

64261ACLIP(FOR ROOM PARTITION GARNISH)

main90467-06017-12×2iAE8#..2D..(APX,SE)198305-198408

DEEP MAROON,RED/MAROON,TRIM3#

main90467-06017-14×2iAE8#..2D..(APX,SE)198305-198408

BLUE,BLUE,TRIM8#

main90467-06046×2iAE8#..2D..(APX,SE)198408-198505

64270BOARD ASSY, ROOM PARTITION, RH

main64271-12080-02iAE85..SE198305-198505

DEEP MAROON,RED/MAROON,TRIM3#

main64271-12080-04iAE85..SE198305-198505

BLUE,BLUE,TRIM8#

main64271-12090-02iAE86..2D..APX198305-198505

DEEP MAROON,RED/MAROON,TRIM3#

main64271-12090-04iAE86..2D..APX198305-198505

BLUE,BLUE,TRIM8#

main64271-12091iAE86..2D..APX198505-198704

64270ACLIP(FOR ROOM PARTITION BOARD SETTING)

main90467-06017-12×2iAE8#..2D..(APX,SE)198305-198408

DEEP MAROON,RED/MAROON,TRIM3#

main90467-06017-14×2iAE8#..2D..(APX,SE)198305-198408

BLUE,BLUE,TRIM8#

main90467-06046×2iAE86..2D..APX198505-198704

64270BCUSHION(FOR ROOM PARTITION BOARD)

main90541-09010×2iAE8#..2D..(APX,SE)198305-198505

64271BOARD, ROOM PARTITION, NO.1

main64270-12030iAE8#..GT,XL198305-198505

64271ARETAINER, ROOM PARTITION BOARD

main62598-14020×2iAE8#..GT,XL198305-198411

64271BCLIP(FOR ROOM PARTITION BOARD)

main90467-06016-01×2iAE8#..GT,SE,XL198505-198704

BLACK,BLACK,TRIM2#

sub90467-07049

main90467-06016-33×2iAE8#..GT,XL198411-198505

GRAY,GRAY

sub90467-07049

64277AMOULDING, ROOM PARTITION TRIM

main64277-12020-02iAE8#..2D..(APX,SE)198305-198505

DEEP MAROON,RED/MAROON,TRIM3#

main64277-12020-04iAE8#..2D..(APX,SE)198305-198505

BLUE,BLUE,TRIM8#

main64277-12021iAE86..2D..APX198505-198704

64280BOARD ASSY, ROOM PARTITION, LH

main64272-12020-02iAE85..SE198305-198505

DEEP MAROON,RED/MAROON,TRIM3#

main64272-12020-04iAE85..SE198305-198505

BLUE,BLUE,TRIM8#

main64272-12030-02iAE86..2D..APX198305-198505

DEEP MAROON,RED/MAROON,TRIM3#

main64272-12030-04iAE86..2D..APX198305-198505

BLUE,BLUE,TRIM8#

main64272-12031iAE86..2D..APX198505-198704

64330PANEL ASSY, PACKAGE TRAY TRIM

main64330-12460-02iAE8#..GT,XL198305-198405

DEEP MAROON,RED/MAROON,TRIM3#

main64330-12460-04iAE8#..GT,XL198305-198405

BLUE,BLUE,TRIM8#

main64330-12470-01iAE8#..2D..(APX,SE)198505-198704

BLACK,BLACK,TRIM2#

main64330-12470-02iAE8#..2D..(APX,SE)198305-198505

DEEP MAROON,RED/MAROON,TRIM3#

main64330-12470-04iAE8#..2D..(APX,SE)198305-198505

BLUE,BLUE,TRIM8#

main64330-12480-01iAE8#..2D198505-198704

W/RR SPEAKER,BLACK,BLACK,TRIM2#

main64330-12480-02iAE8#..2D198305-198505

W/RR SPEAKER,DEEP MAROON,RED/MAROON,TRIM3#

main64330-12480-04iAE8#..2D198305-198505

W/RR SPEAKER,BLUE,BLUE,TRIM8#

main64330-12500-01iAE8#..GT,XL198505-198704

BLACK,BLACK,TRIM2#

main64330-12500-02iAE8#..GT,XL198405-198505

DEEP MAROON,RED/MAROON,TRIM3#

main64330-12500-04iAE8#..GT,XL198405-198505

BLUE,BLUE,TRIM8#

64330ACLIP(FOR PACKAGE TRAY TRIM PANEL)

main90467-08046-01×4iAE8#..2D198505-198704

BLACK,BLACK,TRIM2#

sub90467-08037

main90467-08046-02×4iAE8#..2D198308-198505

DEEP MAROON,RED/MAROON,TRIM3#

sub90467-08037

main90467-08046-04×4iAE8#..2D198308-198505

BLUE,BLUE,TRIM8#

sub90467-08037

main90467-09144-12×4iAE8#..2D198305-198308

DEEP MAROON,RED/MAROON,TRIM3#

main90467-09144-14×4iAE8#..2D198305-198308

BLUE,BLUE,TRIM8#

64330EPLUG(FOR PACKAGE TRAY TRIM PANEL)

main90950-01198-01×2iAE8#..GT,XL198505-198704

BLACK,BLACK,TRIM2#

main90950-01198-02×2iAE8#..GT,XL198405-198505

DEEP MAROON,RED/MAROON,TRIM3#

main90950-01198-04×2iAE8#..GT,XL198405-198505

BLUE,BLUE,TRIM8#

64383GRILLE, SPEAKER, REAR

main64383-12020-01×2iAE8#..2D198505-198704

BLACK,BLACK,TRIM2#

main64383-12020-02×2iAE8#..2D198305-198505

DEEP MAROON,RED/MAROON,TRIM3#

main64383-12020-04×2iAE8#..2D198305-198505

BLUE,BLUE,TRIM8#

64701MAT SUB-ASSY, LUGGAGE COMPARTMENT

main64701-12060iAE8#..GT,SE,XL198505-198704

main64701-12070-01iAE86..2D..APX198505-198704

BLACK,BLACK,TRIM2#

main64701-12070-02iAE8#..2D..(APX,SE)198305-198505

DEEP MAROON,RED/MAROON,TRIM3#

main64701-12070-04iAE8#..2D..(APX,SE)198305-198505

BLUE,BLUE,TRIM8#

64701ASET PLATE, LUGGAGE COMPARTMENT

main58573-12030-01×2iAE86..2D..APX198505-198704

L=440,BLACK,BLACK,TRIM2#

main58573-12030-02×2iAE8#..2D..(APX,SE)198305-198505

L=440,DEEP MAROON,RED/MAROON,TRIM3#

main58573-12030-04×2iAE8#..2D..(APX,SE)198305-198505

L=440,BLUE,BLUE,TRIM8#

main58573-12040iAE8#..2D..(APX,SE)198305-198505

L=632

64701CCLIP(FOR LUGGAGE COMPARTMENT MAT)

main90467-06016-01×4iAE86..2D..APX198505-198704

BLACK,BLACK,TRIM2#

sub90467-07049

main90467-06016-04×4iAE8#..2D..(APX,SE)198305-198505

BLUE,BLUE,TRIM8#

sub90467-07049

main90467-06016-22×4iAE8#..2D..(APX,SE)198305-198505

DEEP MAROON,RED/MAROON,TRIM3#

sub90467-07049

64759COVER, SHOCK ABSORBER HEAD

main58731-22020-03×2iAE8#..2D198305-198704

GRAY,GRAY

64770COVER ASSY, SPARE WHEEL

main64770-12020iAE8#198305-198704

W/COMPACT SPARE TIRE

main64770-12030iAE86198305-198505

W/O COMPACT SPARE TIRE

main64770-12090iAE86..5F198505-198704

W/O COMPACT SPARE TIRE

9018304046

main90183-04046

9353024516

main93530-24516

9353054516

main93530-54516

24 parts on this diagram · 1 diagram in section
