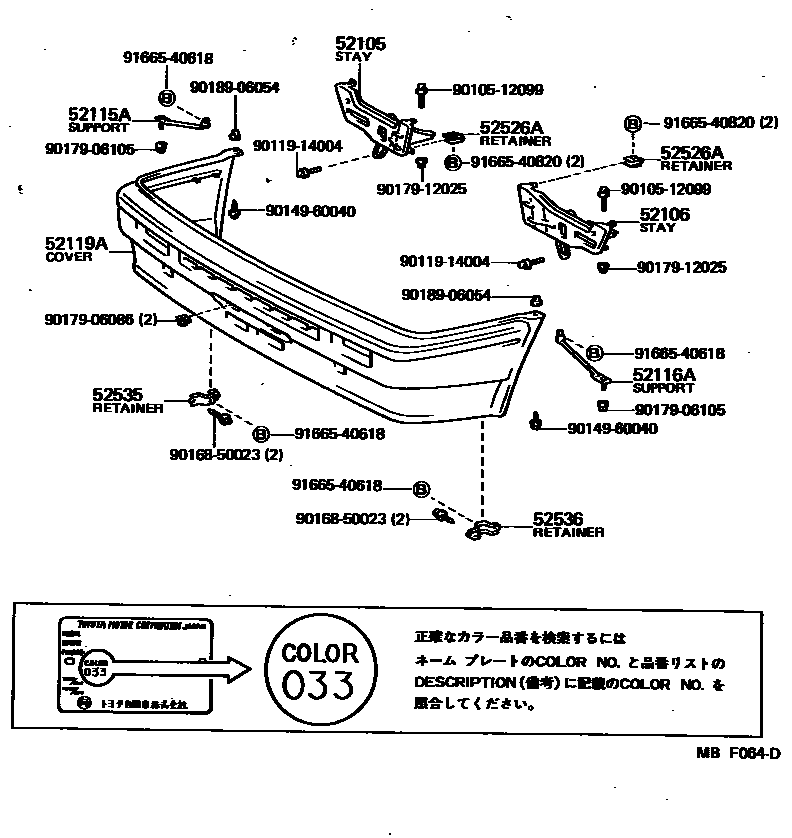

FRONT BUMPER & BUMPER STAY

0001 1 0002 1

52105STAY SUB-ASSY, FRONT BUMPER, RH

main52011-12221iAE8#198505-198704

main52011-12230iAE8#198305-198505

52106STAY SUB-ASSY, FRONT BUMPER, LH

main52012-12221iAE8#198505-198704

main52012-12230iAE8#198305-198505

52115ASUPPORT, FRONT BUMPER SIDE, RH

main52115-12160iAE8#198305-198505

main52115-12240iAE8#198505-198704

52116ASUPPORT, FRONT BUMPER SIDE, LH

main52115-12160iAE8#198305-198505

main52115-12240iAE8#198505-198704

52119ACOVER, FRONT BUMPER

main52119-12092iAE8#..GT,GTV,SE,SR,XL198505-198704

BLACK,041 ,3E6 ,148 ,159 ,164

main52119-12122-02iAE8#..APX,GT,GTV,SE,SR198505-198704

RED,BLACK/RED,2T6 ,3E6

sub52119-12092

sub52119-1A110

main52119-12122-08iAE8#..APX,GT,GTV,SE,SR198505-198704

WHITE,BLACK/WHITE,2T7 ,041

sub52119-12092

sub52119-1A110

main52119-12132iAE86..GT,GTV198505-198605

W/*WAN,BLACK,041 ,3E6 ,148 ,159

sub52119-12092

main52119-12132iAE86..GT,GTV198605-198704

W/*WAM,BLACK,041 ,3E6 ,164 ,159

sub52119-12092

main52119-12140iAE8#..GT,GTV,SE,SR,XL198305-198401

D-GRAY,558 ,8A9

main52119-12140iAE8#..GT,GTV,SE,SR,XL198305-198401

D-GRAY,038 ,147 ,151 ,3D7

main52119-12141iAE8#..GT,GTV,SE,SR,XL198401-198505

BLACK,038 ,041 ,147 ,3D7 ,3E6 ,8A9

main52119-12150-02iAE86..APX198305-198401

RED,RED/MAROON,2M9

sub52119-12151

main52119-12150-03iAE86..APX198305-198401

SILVER-M,GRAY,2M8

sub52119-12151

main52119-12150-08iAE86..APX198305-198401

WHITE,IVORY,2N2

sub52119-12151

main52119-12151-02iAE8#..APX,GT,GTV,SE,SR198401-198408

RED,RED,2M9

sub52119-12141

main52119-12151-03iAE8#..APX,GT,GTV,SE,SR198401-198505

SILVER-M,SILVER METALLIC,2M8

sub52119-12141

main52119-12151-08iAE8#..APX,GT,GTV,SE,SR198401-198408

WHITE,WHITE,2N2

sub52119-12141

main52119-12151-12iAE8#..APX,GT,GTV,SE,SR198408-198505

RED,RED,2T6

sub52119-12141

main52119-12151-18iAE8#..APX,GT,GTV,SE,SR198408-198505

WHITE,WHITE,2T7

sub52119-12141

main52119-12262-02iAE86198505-198704

W/*WAM,RED,BLACK/RED,2T6 ,3E6

sub52119-12132

sub52119-12122

main52119-12262-08iAE86198505-198704

W/*WAM,WHITE,BLACK/WHITE,2T7 ,041

sub52119-12132

sub52119-12122

main52119-1A110-01iAE86..3D..APX198601-198704

BLACK LIMITED,BLACK,BLACK,204

sub52119-12092

main52119-1A110-03iAE8#..APX,GT,GTV,SE,SR198505-198704

SILVER,MEDIUM GRAY METALLIC,2X1

sub52119-12092

main52119-1A120-03iAE86198505-198704

W/*WAM,SILVER,MEDIUM GRAY METALLIC,2X1

sub52119-12132

52526ARETAINER, FRONT BUMPER, LOWER NO.1

main52565-12040iAE8#198305-198704

52535RETAINER, FRONT BUMPER SIDE, RH

main52535-12010iAE8#198305-198505

main52535-12020iAE8#198505-198704

52536RETAINER, FRONT BUMPER SIDE, LH

main52536-12010iAE8#198305-198505

main52536-12020iAE8#198505-198704

9010512099

main90105-12099

9011914004

main90119-14004

9014960040

main90149-60040

9016850023

main90168-50023

9017906086

main90179-06086

9017906105

main90179-06105

9017912025

main90179-12025

9018906054

main90189-06054

9166540618

main91665-40618

9166540820

main91665-40820

18 parts on this diagram · 2 diagrams in section
