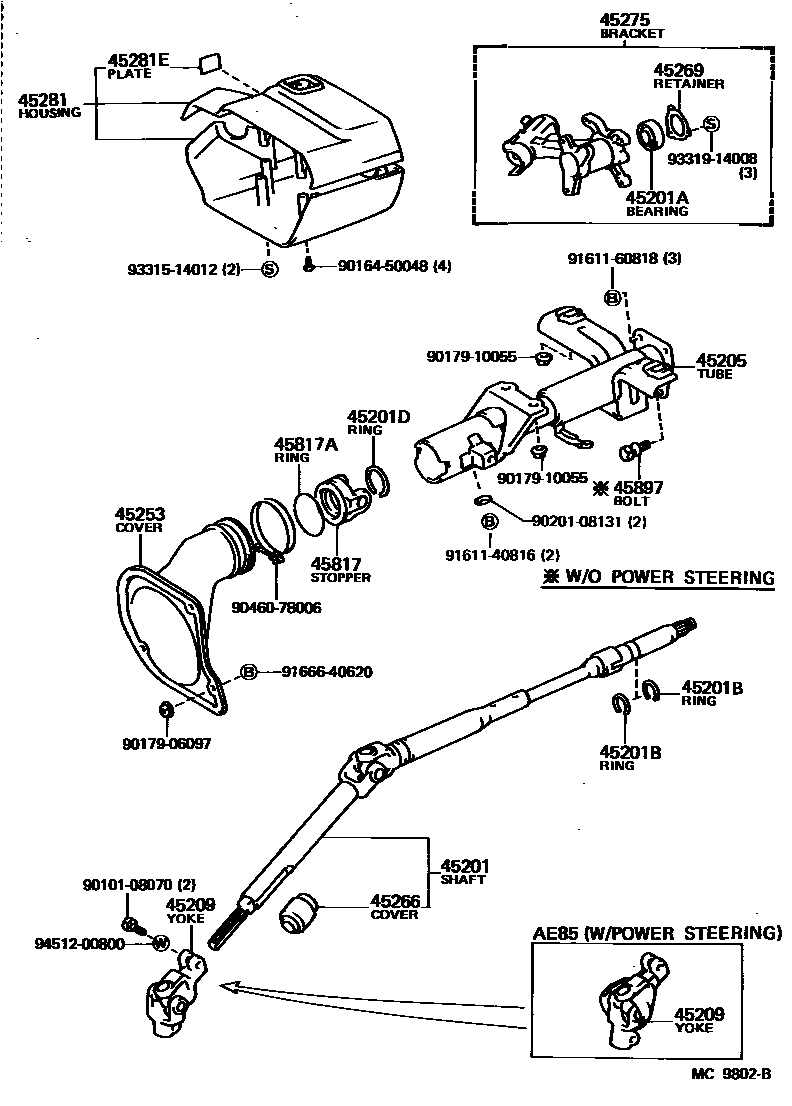

STEERING COLUMN & SHAFT

0001 1 0002 1

45201SHAFT SUB-ASSY, STEERING MAIN

main45210-12280iAE8#198305-198704

main45210-12290iAE8#..APX,GT,SE,SR,XL198305-198704

W/POWER STEERING

45201ABEARING(FOR STEERING MAIN SHAFT)

main90363-18038iAE8#198305-198704

45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)

main90520-17042×2iAE8#198305-198704

main90520-17196×2iAE8#198305-198704

45201DRING(FOR STEERING MAIN SHAFT)

main96152-00300iAE8#198305-198704

45205TUBE SUB-ASSY, STEERING COLUMN

main45870-12220iAE8#..GT,GTV,SE,SR,XL198305-198704

main45870-12230iAE8#..APX,SE,SR,XL198305-198704

W/TILT STEERING

45209YOKE SUB-ASSY, STEERING SLIDING

main45209-12040iAE85198305-198704

W/POWER STEERING

main45209-32010iAE8#198305-198704

sub45209-10020

main45209-32020iAE86..APX,GT198305-198704

W/POWER STEERING

sub45209-16010

45253COVER, STEERING COLUMN HOLE

main45025-12140iAE8#198305-198704

45266COVER, STEERING INTERMEDIATE SHAFT DUST

main45266-12020iAE8#198305-198704

45269RETAINER, MAIN SHAFT BEARING

main45269-10010iAE8#198305-198704

45275BRACKET, STEERING COLUMN, UPPER

main45280-12090iAE8#198305-198612

main45280-12092iAE8#198612-198704

sub45280-17010

45281HOUSING, STEERING COLUMN

main45286-12929iAE8#..GT,GTV,SE,SR,XL198305-198704

main45286-12930iAE8#..APX,SE,SR,XL198305-198608

W/TILT STEERING

main45286-12930-01iAE8#..APX,SE,SR,XL198608-198704

W/TILT STEERING,BLACK,BLACK,TRIM2#

45281EPLATE, SAFETY CAUTION

main45283-22010iAE8#198305-198704

45817STOPPER, STEERING SHAFT THRUST

main45808-20020iAE8#198305-198704

sub45808-20030

45817ARING, O(FOR STEERING SHAFT THRUST STOPPER)

main90301-54002iAE8#198511-198704

main96711-24056iAE8#198305-198511

45897BOLT, STEERING LOCK SET

main45897-12020iAE8#198305-198704

9010108070

main90101-08070

9016450048

main90164-50048

9017906097

main90179-06097

9017910055

main90179-10055

9020108131

main90201-08131

9046078006

main90460-78006

9161140816

main91611-40816

9161160818

main91611-60818

9166640620

main91666-40620

9331514012

main93315-14012

9331914008

main93319-14008

9451200800

main94512-00800

27 parts on this diagram · 2 diagrams in section
