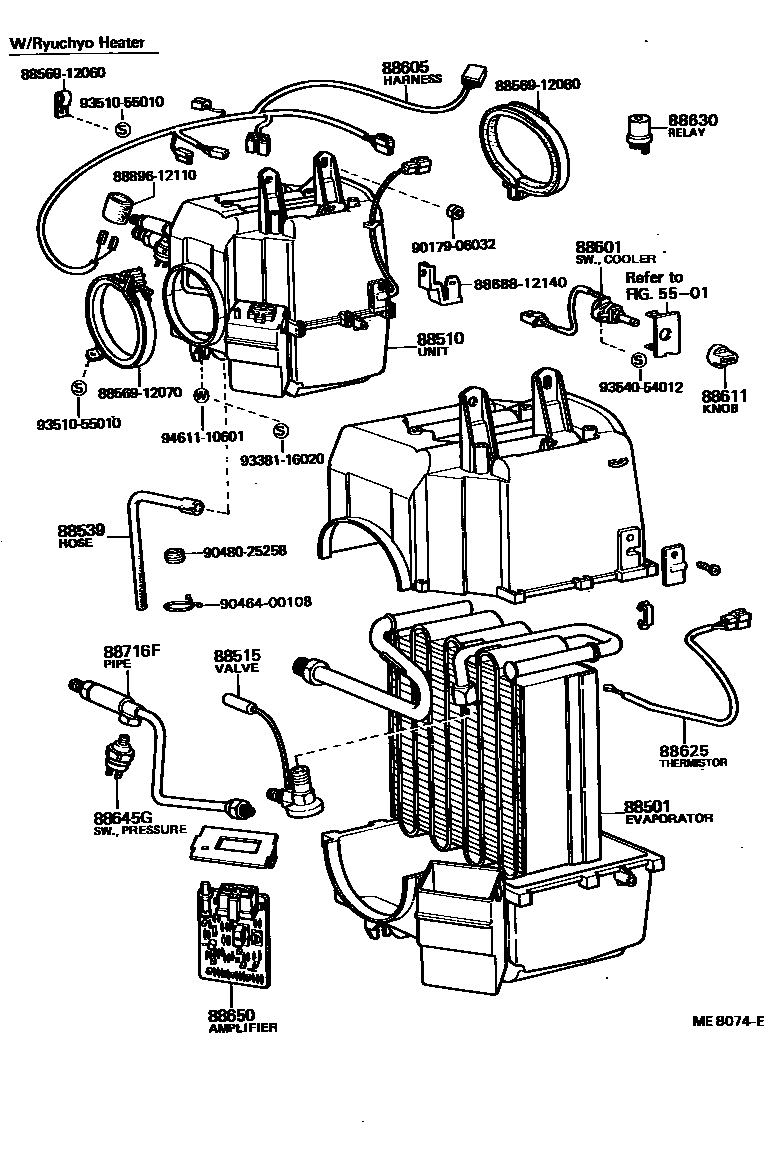

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1 0002 1 0003 1

5501

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-12150iAE70,KE70,TE7#197903-198108

AIR MIX HEATER

sub88501-12230

main88501-12230iAE70,KE70,TE7#197903-198108

AIR MIX HEATER,OKINAWA SPEC

main88501-12231iAE70,CE70,KE70,TE71198108-198304

AIR MIX HEATER

main88501-12240iKE70..DX,SPD198108-198304

RYUCHYO HEATER

main88501-12240iKE70..DX,SPD197903-198108

RYUCHYO HEATER OKINAWA SPEC

main88501-12250iKE70..DX,SPD197903-198108

RYUCHYO HEATER

main88501-12280iAE70,TE71198108-198304

*AAC

88510UNIT ASSY, COOLER

main88510-12160iKE70,TE71197903-198108

AIR MIX HEATER

main88510-12170iKE70..DX,SPD197903-198108

RYUCHYO HEATER

main88510-12190iAE70,TE70197903-198108

main88510-12250iKE70,TE71197903-198108

AIR MIX HEATER,OKINAWA SPEC

sub88510-12251

main88510-12251iTE71198108-198304

sub88510-12252

main88510-12260iKE70..DX,SPD197903-198108

RYUCHYO HEATER OKINAWA SPEC

sub88510-12261

main88510-12270iAE70,TE70197903-198108

OKINAWA SPEC

sub88510-12271

main88510-12271iAE70,KE70198108-198304

AIR MIX HEATER

sub88510-12272

main88510-12310iAE70,TE71198108-198304

*AAC

main88510-12320iKE70..DX,SPD198108-198304

RYUCHYO HEATER

sub88510-12321

main88510-12350iCE70198202-198304

sub88510-12351

88515VALVE, COOLER EXPANSION

main88515-14040iAE70,TE71198108-198304

*AAC

sub88515-14080

main88515-20040iAE70,CE70,KE70,TE7#197903-198304

88539HOSE, COOLER UNIT DRAIN, NO.1

main88539-12040iAE70,CE70,KE70,TE7#197903-198304

88601SWITCH SUB-ASSY, COOLER CONTROL

main84660-12010iAE70,CE70,KE70,TE7#197903-198304

main84660-12030iAE70,TE71..4D198108-198304

*AAC

main88610-12020iKE70..DX,SPD197903-198108

RYUCHYO HEATER

main88610-12021iKE70..DX,SPD198108-198304

RYUCHYO HEATER

88605HARNESS SUB-ASSY, COOLER WIRING, NO.1

main88605-12200iKE70,TE71197903-198108

main88605-12210iKE70..DX,SPD197903-198108

RYUCHYO HEATER

main88605-12220iAE70,TE70197903-198108

main88605-12221iAE70198108-198304

main88605-12230iAE70197903-198108

COLD SPEC

main88605-12270iAE70,TE71198108-198304

*AAC

main88605-12280iTE71198108-198304

main88605-12290iKE70..SE,SR,XL198108-198304

main88605-12320iKE70..DX,SPD198108-198304

RYUCHYO HEATER

main88605-12340iKE70198108-198304

COLD SPEC

main88605-12350iCE70198202-198304

main88650-16010iAE70197903-198108

88611KNOB, COOLER CONTROL SWITCH

main88611-12030iKE70..DX,SPD197903-198108

RYUCHYO HEATER

main88611-12031iKE70..DX,SPD198108-198304

RYUCHYO HEATER

88625THERMISTOR, COOLER, NO.1

main88625-12050iAE70,KE70,TE7#197903-198108

sub88625-87001

main88625-12070iAE70,CE70,KE70,TE71198108-198304

W/RYUCHO OR AIR MIX HEATER

88630RELAY ASSY, COOLER

main88925-12010iAE70,TE71198108-198304

*AAC

sub85925-12010

main90987-02001iKE70197903-198108

ENGINE ROOM

sub90999-99089

main90987-02001iAE70197911-198108

COLD SPEC

sub90999-99089

main90987-02004iCE70,KE70..4F,4FC,5F198108-198304

ENGINE ROOM

main90987-03001iCE70198202-198304

88645GSWITCH, PRESSURE

main88645-12010iAE70,KE70,TE71198108-198304

sub88645-12020

main88645-12020iCE70198202-198304

main88645-22010iAE70,KE70,TE71197903-197908

sub88645-30250

main88645-30250iAE70,KE70,TE7#197908-198108

88650AMPLIFIER ASSY, COOLER STABILIZER

main88650-12070iAE70198108-198304

*AAC(NO.2)

main88650-12080iTE71198108-198304

*AAC(NO.1)

main88650-12080iTE71198108-198304

*AAC

main88650-14070iKE70,TE71197912-198304

main88650-14090iCE70198202-198304

main88650-16010iAE70,TE70197903-197912

main88650-16020iAE70,TE70197912-198304

main88650-20100iKE70,TE71197903-197912

88716FPIPE, COOLER REFRIGERANT LIQUID, F

main88716-12470iAE70,KE70,TE7#197903-198108

main88716-12470iKE70..DX,SPD198108-198304

RYUCHYO HEATER

main88716-12530iAE70,CE70,KE70,TE71198108-198304

AIR MIX HEATER

8856912060CLAMP (FOR COOLER RELAY)

main88569-12060

8856912070CLAMP (FOR COOLER RELAY)

main88569-12070

8856912080CLAMP (FOR COOLER RELAY)

main88569-12080

8868812140BRACKET, COOLER DIAPHRAGM

main88688-12140

8889612110PLATE, COOLER AIR OUTLET GRILLE ORNAMENT

main88896-12110

9017906032

main90179-06032

9046400108

main90464-00108

9048025258

main90480-25258

9338116020

main93381-16020

9351055010

main93510-55010

9354054012

main93540-54012

9461110601

main94611-10601
