SWITCH & RELAY & COMPUTER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1

1903

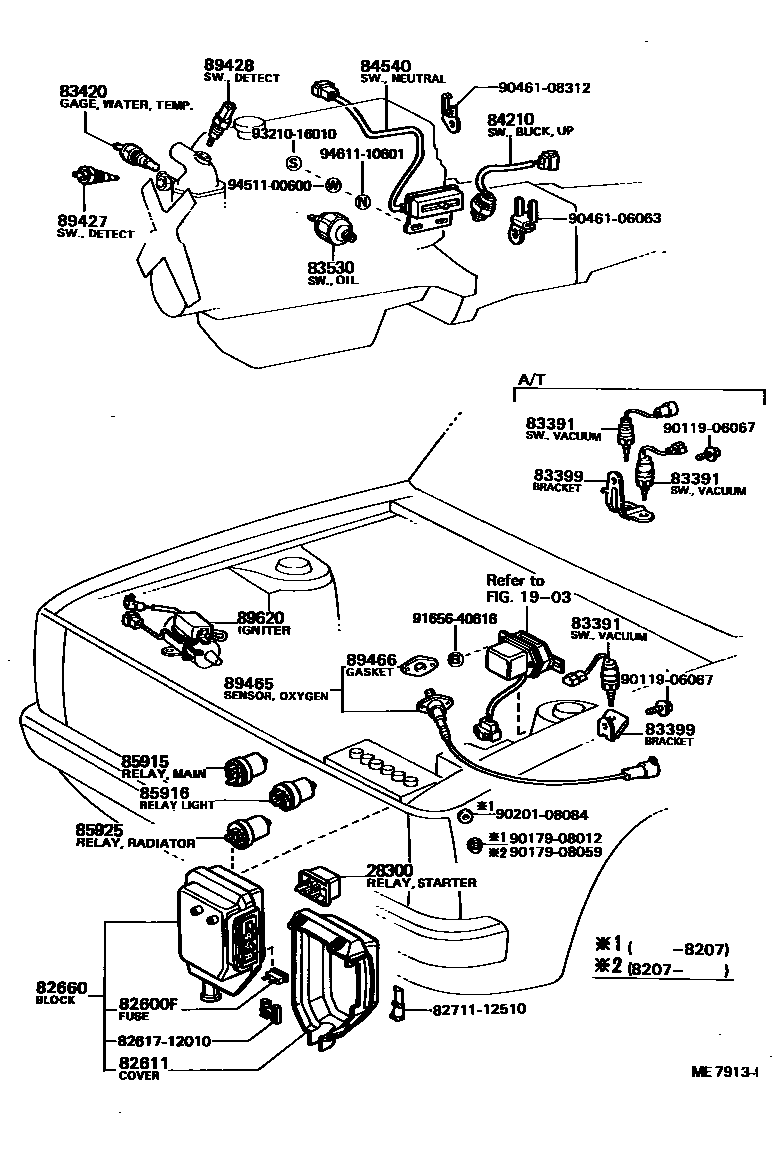

28300RELAY ASSY, STARTER

main28300-24031i4KU..KE70..2FC197903-198108

sub28300-16010

main28300-54050i1C..CE70..4FC198202-198304

82600BLOCK ASSY, FUSE

main82600-12100iAE70,KE70,TE7#..4D197903-198108

main82600-12110iAE70,KE70,TE7#..2D197903-198108

main82600-12120iAE70,CE70,KE70,TE71..4D198108-198304

main82600-12140iAE70,KE70,TE71..2D198108-198304

82600FFUSE, FUSE BLOCK

main90982-09001iAE70,KE70,TE7#197903-198108

main90982-09002iAE70,CE70,KE70,TE7#197903-198304

main90982-09003iAE70,CE70,KE70,TE7#197903-198304

main90982-09004iAE70,CE70,KE70,TE7#197903-198304

main90982-09005iAE70,CE70,KE70,TE7#198008-198304

82611COVER, FUSE BLOCK

main82611-12080iAE70,KE70,TE71197903-197906

RH,COWL SIDE

main82611-12081iAE70,KE70,TE7#197906-198108

RH,COWL SIDE

main82611-12082iAE70,CE70,KE70,TE71198108-198304

RH,COWL SIDE

main82661-12010iAE70,KE70,TE7#197903-198006

ENGINE ROOM

main82661-12011iAE70,KE70,TE7#198006-198108

ENGINE ROOM

main82661-12012iAE70,CE70,KE70,TE71198108-198304

ENGINE ROOM

82660BLOCK ASSY, RELAY, ENGINE ROOM

main82660-12010iAE70,KE70,TE7#197903-198006

main82660-12011iAE70,KE70,TE7#198006-198011

main82660-12080iAE70,KE70,TE7#198011-198108

main82660-12081iAE70,CE70,KE70,TE71198108-198304

83391SWITCH, VACUUM

main83391-12070iKE70..3FC;KE70..5F..DX198108-198304

70M

main83391-12081iKE70198108-198304

500B

main83391-14010iAE70,TE70197903-198108

main83391-14061iAE70198108-198304

83399BRACKET, VACUUM SWITCH

main83399-12060iAE70,TE70197903-198108

main83399-12080iKE70..3FC;KE70..5F..DX198108-198304

main83399-22011iKE70..MTM..2D;KE70..4F..DX..4D;KE70..MTM..(SE,SPD,XL)..4D198108-198304

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-12010iAE70,KE70,TE71197903-197908

main83420-16010iAE70,CE70,KE70,TE7#197908-198304

DENSO

sub83420-20020

main83420-20020iAE70,CE70,KE70,TE7#197908-198304

YAZAKI

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-10020iTE71..4D;AE70,KE70,TE70..DX,SE,SPD,ST,XL197903-198304

sub83530-14030

main83530-12040iTE71..4D198105-198304

sub83530-14040

main83530-36011iCE70198202-198304

sub83530-30060

84210SWITCH ASSY, BACK-UP LAMP

main84210-10051iTE7#..MTM197903-198304

main84210-10060iAE70,KE70..MTM197903-198304

main84210-14010iCE70..5F198202-198304

84540SWITCH ASSY, NEUTRAL START

main84540-12090iTE70..3FC197908-198008

sub84540-12130

sub90461-12223

sub93385-16025

main84540-12100iKE70..2FC197903-198108

main84540-12130iTE70..3FC198008-198108

sub84540-12091

main84540-14080iCE70..4FC198202-198304

main84540-14090iAE70,KE70..3FC198108-198304

main84540-22130iAE70..3FC197910-198008

sub84540-22131

sub90461-10284

sub93385-16025

main84540-22131iAE70..3FC198008-198108

sub84540-14080

85915RELAY, MAIN

main90987-02001iAE70,KE70,TE7#197903-198012

sub90999-99089

main90987-02004iAE70,CE70,KE70,TE7#198012-198304

85916RELAY, LIGHT CONTROL

main90987-01001iAE70,KE70,TE7#197903-198012

sub90999-99088

main90987-01003iAE70,CE70,KE70,TE7#198012-198304

85925RELAY, RADIATOR FAN

main90987-03001iKE70197903-198304

89427SWITCH, TEMPERATURE DETECT

main89427-12051iCE70,KE70..4F,4FC,5F197903-198304

HEATER

89428SWITCH, TEMPERATURE DETECT, NO.2

main89428-10040iKE70197903-198108

COOLING FAN,COLD SPEC,MARK=98B

main89428-10050iKE70..MTM198108-198304

COOLING FAN,MARK=98B

main89428-30030iKE70197903-198108

COOLING FAN,MARK=95B

main89428-30031iKE70..MTM..2D;KE70..4F..DX..4D;KE70..MTM..(SE,SPD,XL)..4D198108-198304

COOLING FAN,MARK=95B

89465SENSOR, OXYGEN

main89465-19035iTE71197903-198108

main89465-19045iTE71198108-198304

main89465-19065iAE70,KE70198108-198304

sub89465-19066

89466GASKET, OXYGEN SENSOR

main89466-30010iTE71197903-198304

sub89466-20020

89620IGNITER ASSY

main89620-12130iKE70197903-198103

IGNITER SIZE 75X69,MATSUSHITA

main89620-12131iKE70..MTM198108-198304

MATSUSHITA

sub89620-12141

main89620-12140iKE70197903-198108

DENSO

sub89620-12H90

main89620-12141iKE70..MTM198108-198304

DENSO

main89620-12150iTE71197903-198108

sub89620-12H91

main89620-12160iTE70197908-198108

main89620-12170iAE70197903-198108

DENSO

main89620-12180iAE70197903-198008

MATSUSHITA

main89620-12181iAE70198008-198108

MATSUSHITA

main89620-12182iAE70198108-198304

MATSUSHITA

sub89620-12250

main89620-12220iKE70..3FC198108-198304

main89620-12230iKE70198103-198108

IGNITER SIZE 59X43,MATSUSHITA

sub89620-12400

main89620-12250iAE70198108-198304

DENSO

sub89620-14H93

8261712010

main82617-12010

8271112510WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12510

9011906067

main90119-06067

9017908012

main90179-08012

9017908059

main90179-08059

9020108084

main90201-08084

9046106063

main90461-06063

9046108312

main90461-08312

9165640616

main91656-40616

9321016010

main93210-16010

9451100600

main94511-00600

9461110601

main94611-10601
