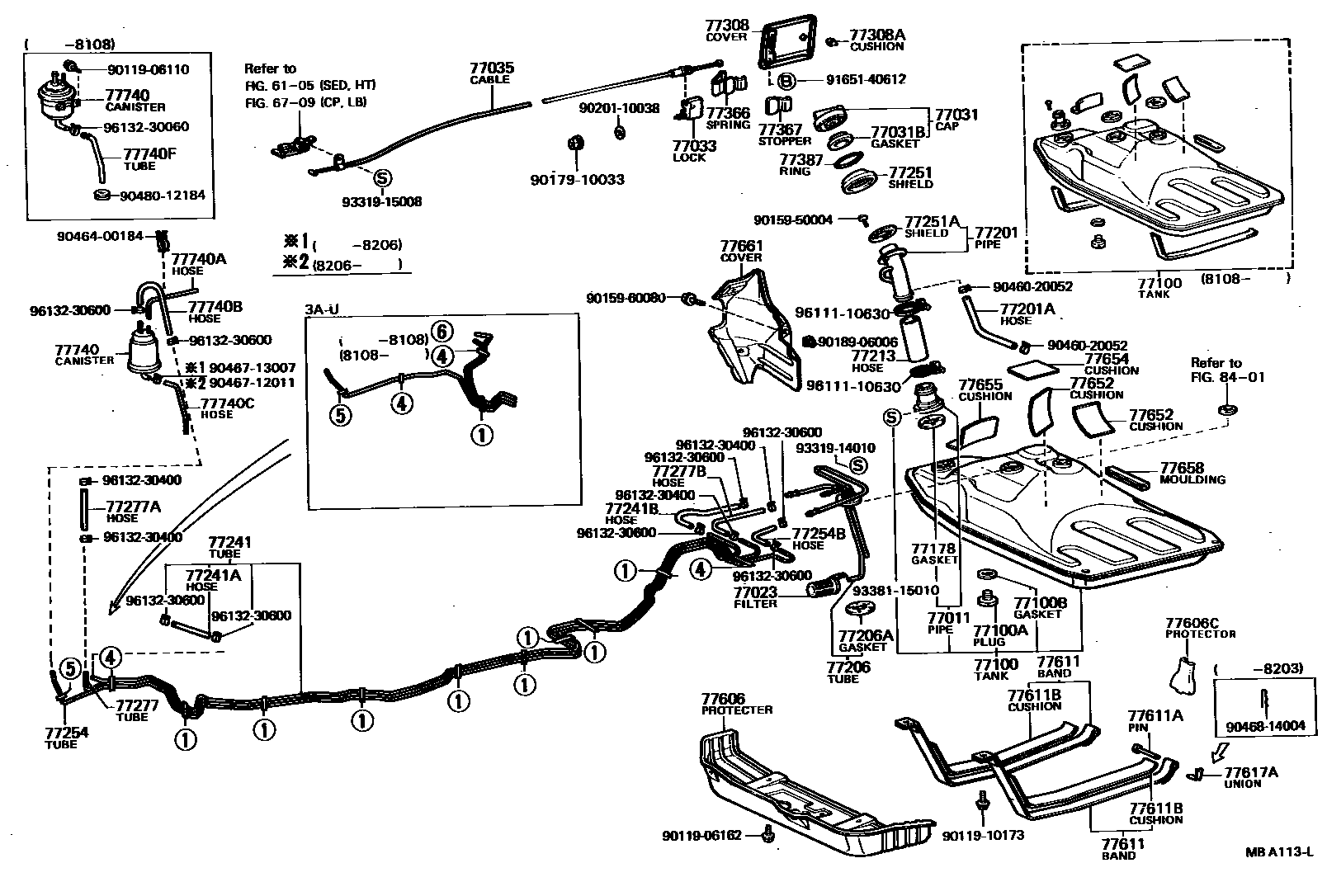

FUEL TANK & TUBE

0001 1 0002 1 0003 1 0004 1

6105

6709

77011PIPE SUB-ASSY, FUEL TANK FILLER, LOWER

main77011-12010iAE70,CE70,KE70,TE7#197903-198304

sub77011-10020

77023FILTER SUB-ASSY, FUEL SUCTION TUBE

main77023-12050iAE70,KE70,TE70197903-198304

main77023-14020iTE71197903-198304

main77023-22040iCE70198202-198304

77031CAP ASSY, FUEL TANK

main77310-12090iAE70,KE70,TE7#197908-198109

sub77310-12100

main77310-12100iAE70,KE70,TE71198109-198304

main77310-14070iAE70,KE70,TE71197903-197908

main77310-35061iCE70198203-198304

77031BGASKET (FOR FUEL TANK CAP)

main77316-12050iAE70,CE70,KE70,TE7#197903-198304

77033LOCK SUB-ASSY, FUEL TANK CAP

main77037-12010iAE70,KE70,TE7#..GT,SE,SR,ST,TRR,XL197903-198304

77035CABLE SUB-ASSY, FUEL LID LOCK CONTROL

main77035-12020iAE70,KE70,TE7#..GT,SE,SR,ST,TRR,XL197903-198304

77100TANK ASSY, FUEL

main77001-12906iAE70,KE70,TE70197903-198108

sub77001-19065

main77001-12907iTE71197903-198108

sub77001-19075

main77001-19065iAE70,KE70198108-198304

sub77001-19195

main77001-19075iCE70,TE71198108-198304

sub77001-19155

77100APLUG(FOR FUEL TANK)

main90341-20004iAE70,CE70,KE70,TE71198212-198304

OD=42

main90341-24036iAE70,CE70,KE70,TE7#197903-198212

OD=46

77100BGASKET(FOR FUEL TANK)

main90430-20007iAE70,CE70,KE70,TE71198212-198304

OD=42

main90430-24047iAE70,CE70,KE70,TE7#197903-198212

OD=46

77178GASKET, FUEL TANK FILLER PIPE, LOWER

main77178-10010iAE70,CE70,KE70,TE7#197903-198304

77201PIPE SUB-ASSY, FUEL TANK INLET

main77201-12210iAE70,KE70,TE71197903-197906

main77201-12211iAE70,KE70,TE71197906-197908

sub77201-12240

main77201-12240iAE70,CE70,KE70,TE7#197908-198208

sub77201-12241

sub90445-18021

main77201-12241iAE70,CE70,KE70,TE71198208-198304

77201AHOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE)

main90445-18012iAE70,CE70,KE70,TE71198208-198304

main90445-18046iAE70,CE70,KE70,TE7#197903-198208

77206TUBE SUB-ASSY, FUEL TANK SUCTION

main77017-12140iAE70,KE70,TE70197903-198304

main77017-12150iTE71197903-198304

main77017-12180iCE70198202-198304

77206AGASKET (FOR FUEL TANK SUCTION TUBE)

main77169-14020iAE70,CE70,KE70,TE7#197903-198304

77213HOSE, FUEL TANK SUB INLET

main77213-12110iAE70,CE70,KE70,TE7#197903-198304

77241TUBE, FUEL MAIN, NO.1

main77205-12050iTE71197903-198304

main77251-12060iKE70,TE70197903-198304

main77251-12070iAE70197903-198108

main77251-12071iAE70198108-198304

main77251-12130iCE70198202-198304

77241AHOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1)

main95332-06020iKE70,TE70197903-198304

sub95333-06020

main95332-06020iKE70,TE70197903-198304

sub95333-06020

main95332-08020iCE70198202-198304

sub95333-08020

77241BHOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1)

main77259-12070iTE71197903-198304

main95332-06020iAE70,KE70,TE70197903-198304

sub95333-06020

main95332-08020iCE70198202-198304

sub95333-08020

77251SHIELD, FUEL TANK, INLET, NO.1

main77292-12020iAE70,KE70,TE71197903-197908

main77292-12030iAE70,CE70,KE70,TE7#197908-198304

77251ASHIELD, FUEL TANK, INLET, NO.2

main77291-12020iAE70,CE70,KE70,TE7#197906-198304

main77291-22010iAE70,KE70,TE71197903-197906

77254TUBE, FUEL EMISSION, NO.1

main77261-12100iKE70,TE70197903-198304

main77261-12110iTE71197903-198304

main77261-12130iAE70197903-198304

77254BHOSE, FUEL, NO.2 (FOR EMISSION TUBE, NO.1)

main95332-06020iAE70,KE70,TE70197903-198304

sub95333-06020

main95332-06030iTE71197903-198304

sub95333-06030

77277TUBE, FUEL RETURN, NO.1

main77255-12050iKE70197903-198304

main77255-12060iAE70197903-198108

main77255-12061iAE70198108-198304

main77255-12070iTE71197903-198304

main77255-12100iTE70197908-198108

main77255-12120iCE70198202-198304

77277AHOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1)

main95332-04030iTE70197908-198108

sub95333-04030

main95332-04030iAE70197903-198304

sub95333-04030

main95332-04040iKE70197903-198304

sub95333-04040

main95332-06030iTE71197903-198304

sub95333-06030

main95332-06030iCE70198202-198304

sub95333-06030

77277BHOSE, FUEL, NO.2(FOR RETURN TUBE, NO.1)

main95332-04020iAE70,KE70,TE70197903-198304

sub95333-04020

main95332-06020iCE70198202-198304

sub95333-06020

main95332-06030iTE71197903-198304

sub95333-06030

77308COVER SUB-ASSY, FUEL INLET BOX

main77350-12010iAE70,KE70,TE7#..4D197903-197910

sub77350-12030

main77350-12020iAE70,KE70,TE7#..2D197903-197910

sub77350-12040

main77350-12030iAE70,KE70,TE7#..4D197910-197911

sub77350-12031

sub77358-12021

sub77366-12011

main77350-12031iAE70,CE70,KE70,TE7#..4D197911-198304

main77350-12040iAE70,KE70,TE7#..2D197910-197911

main77350-12041iAE70,KE70,TE7#..2D197911-198304

77308ACUSHION(FOR FUEL INLET BOX COVER)

main90541-08003iAE70,CE70,KE70,TE7#..4D197903-198304

main90541-10006iAE70,KE70,TE7#..2D197903-198304

77366SPRING, FUEL FILLER OPENING LID HINGE

main77366-12010iAE70,KE70,TE7#..GT,SE,SR,ST,TRR,XL197903-197911

main77366-12011iAE70,CE70,KE70,TE71..DX,GT,SE,SR,SX,TRR,XL197911-198304

77367STOPPER, FUEL FILLER OPENING LID

main77358-12020iKE70;AE70..DX197903-197911

main77358-12021iKE70;AE70..DX197911-198304

77387RING, FUEL INLET BOX

main77391-16010iAE70,CE70,KE70,TE7#197903-198304

77606PROTECTOR SUB-ASSY, FUEL TANK, NO.1

main77641-12100iAE70,CE70,KE70,TE7#197903-198304

COLD SPEC

main77641-12111iAE70,CE70,KE70,TE71198108-198304

77606CPROTECTOR, FUEL TANK, NO.2

main77642-12010iAE70,CE70,KE70,TE71198108-198304

77611BAND, FUEL TANK

main77601-12030iAE70,KE70,TE7#197903-198108

RH

sub77601-16040

main77601-12030iAE70,CE70,KE70,TE71198108-198304

RH,COLD SPEC

sub77601-16040

main77601-12040iAE70,CE70,KE70,TE71198108-198207

RH

sub77601-12050

main77601-12050iAE70,CE70,KE70,TE71198207-198304

RH

main77602-12030iAE70,CE70,KE70,TE7#197903-198304

LH

sub77602-16040

77611APIN (FOR FUEL TANK BAND)

main90240-08020iAE70,CE70,KE70,TE7#197903-198304

77611BCUSHION, FUEL TANK, NO.4

main77654-12020iAE70,KE70,TE7#197903-198102

sub77654-12021

main77654-12021iAE70,CE70,KE70,TE7#198102-198304

77617AUNION, AUXILIARY FUEL BAND

main77617-12010iAE70,CE70,KE70,TE71198203-198304

77652CUSHION, FUEL TANK, NO.1

main77651-12040iAE70,KE70,TE7#197903-198104

sub77651-12041

main77651-12040iAE70,KE70,TE7#198104-198107

FR

sub77651-12041

main77651-12041iAE70,CE70,KE70,TE7#198107-198304

FR

main77655-12021iAE70,CE70,KE70,TE7#198104-198304

RR

77654CUSHION, FUEL TANK, NO.2

main77652-12040iAE70,CE70,KE70,TE7#197903-198207

sub77652-12041

main77652-12041iAE70,CE70,KE70,TE71198207-198304

77655CUSHION, FUEL TANK, NO.3

main77653-12030iAE70,KE70,TE7#197903-198107

sub77653-12031

main77653-12031iAE70,CE70,KE70,TE7#198107-198304

77658MOULDING, FUEL TANK EDGE

main77658-12010iAE70,CE70,KE70,TE7#197903-198304

77661COVER, FUEL INLET PIPE

main77661-12010iAE70,CE70,KE70,TE7#..4D197903-198304

main77661-12020iAE70,KE70,TE7#..2D197903-198304

77740CANISTER ASSY, CHARCOAL

main77704-12250iKE70198108-198304

main77704-12270iAE70198108-198304

main77740-13010iKE70197903-198108

main77740-15010iAE70,TE70197903-198108

main77740-20160iTE71197903-198304

77740AHOSE, FUEL, NO.1(FOR CHARCOAL CANISTER)

main90445-08091iTE71197905-197910

L=1000

sub90445-08201

main90445-08192iTE71197910-198304

L=1000

sub90999-92006

main95411-19960iAE70197903-198304

sub90999-92003

main95411-19995iTE71197903-197905

sub90999-92004

77740BHOSE, FUEL, NO.2(FOR CHARCOAL CANISTER)

main95332-06030iAE70,KE70,TE70197903-198107

sub95333-06030

main95332-06030iTE71197903-198304

sub95333-06030

main95332-06040iAE70,KE70198107-198304

sub95333-06040

77740CHOSE, FUEL, NO.3(FOR CHARCOAL CANISTER)

main90445-12119iTE71198206-198304

main90445-12123iAE70198206-198304

L=260

main95332-08010iTE71197903-198206

main95332-08030iAE70,KE70198108-198304

sub95333-08030

77740FTUBE, FUEL, NO.1(FOR CHARCOAL CANISTER)

main77264-12070iAE70,KE70,TE70197903-198108

8401

9011906110

main90119-06110

9011906162

main90119-06162

9011910173

main90119-10173

9015950004

main90159-50004

9015960080

main90159-60080

9017910033

main90179-10033

9018906006

main90189-06006

9020110038

main90201-10038

9046020052

main90460-20052

9046400184

main90464-00184

9046712011

main90467-12011

9046713007

main90467-13007

9046814004

main90468-14004

9048012184

main90480-12184

9165140612

main91651-40612

9331914010

main93319-14010

9331915008

main93319-15008

9338115010

main93381-15010

9611110630

main96111-10630

9613230060

main96132-30060

9613230400

main96132-30400

9613230600

main96132-30600

71 parts on this diagram · 4 diagrams in section
