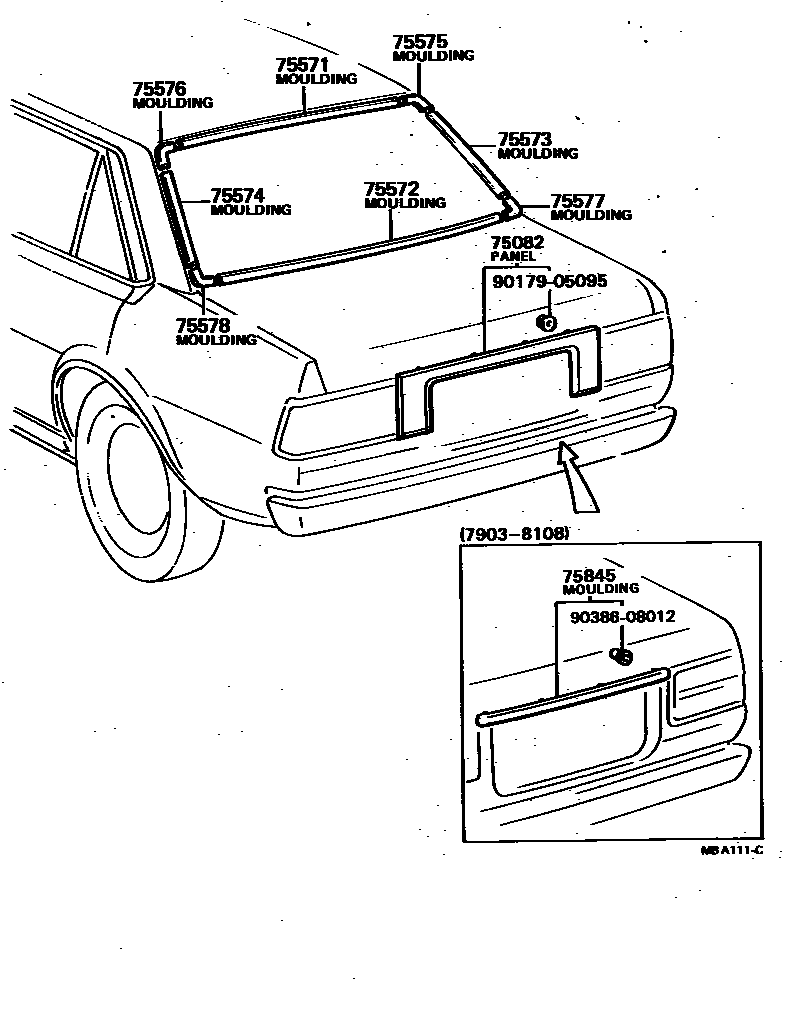

REAR MOULDING

0001 1 0002 1 0003 1 0004 1

75082PANEL SUB-ASSY, LOWER BACK FINISH, CENTER

main75082-19265iAE70,CE70,KE70,TE71..4D198108-198304

75571MOULDING, BACK WINDOW, OUTSIDE UPPER

main75571-12200iAE70,KE70,TE70..HT..(DX,SE,XL)197903-198304

main75571-12210iAE70,CE70,KE70,TE7#..(DX,GT,SE,SX,XL)..4D197903-198304

main75571-12220iAE70,KE70,TE70..CP..(DX,ST)197903-198108

main75571-12230iAE70,KE70,TE70..LB..(DX,SE,XL)197903-198304

75572MOULDING, BACK WINDOW, LOWER

main75575-12140iAE70,KE70,TE70..HT..(DX,SE,XL)197903-198304

main75575-12150iAE70,CE70,KE70,TE7#..(DX,GT,SE,SX,XL)..4D197903-198304

main75575-12160iAE70,KE70,TE70..CP..(DX,ST)197903-198108

main75575-12170iAE70,KE70,TE70..LB..(DX,SE,XL)197903-198304

75573MOULDING, BACK WINDOW SIDE, RH

main75573-12180iAE70,KE70,TE70..HT..(DX,SE,XL)197903-198304

sub75573-12210

main75573-12190iAE70,CE70,KE70,TE7#..(DX,GT,SE,SX,XL)..4D197903-198304

main75573-12200iAE70,KE70,TE70..CP..(DX,ST)197903-198108

main75573-12210iAE70,KE70,TE70..LB..(DX,SE,XL)197903-198304

75574MOULDING, BACK WINDOW SIDE, LH

main75573-12180iAE70,KE70,TE70..HT..(DX,SE,XL)197903-198304

sub75573-12210

main75573-12190iAE70,CE70,KE70,TE7#..(DX,GT,SE,SX,XL)..4D197903-198304

main75573-12200iAE70,KE70,TE70..CP..(DX,ST)197903-198108

main75573-12210iAE70,KE70,TE70..LB..(DX,SE,XL)197906-198304

main75574-12110iAE70,KE70..LB197903-197906

sub75573-12210

75575MOULDING, BACK WINDOW CORNER, UPPER RH

main75581-12090iAE70,KE70,TE70..HT..(DX,SE,XL)197903-198304

main75581-12110iAE70,CE70,KE70,TE7#..(DX,GT,SE,SX,XL)..4D197903-198304

main75581-12120iAE70,KE70,TE70..CP..(DX,ST)197903-198108

main75581-12130iAE70,KE70,TE70..LB..(DX,SE,XL)197903-198304

75576MOULDING, BACK WINDOW CORNER, UPPER LH

main75581-12090iAE70,KE70,TE70..HT..(DX,SE,XL)197903-198304

main75581-12110iAE70,CE70,KE70,TE7#..(DX,GT,SE,SX,XL)..4D197903-198304

main75581-12120iAE70,KE70,TE70..CP..(DX,ST)197903-198108

main75581-12130iAE70,KE70,TE70..LB..(DX,SE,XL)197903-198304

75577MOULDING, BACK WINDOW CORNER, LOWER RH

main75583-12080iAE70,CE70,KE70,TE7#..(DX,GT,SE,SX,XL)..4D197903-198304

sub75583-12070

main75583-12100iAE70,KE70,TE70..CP..(DX,ST)197903-198108

main75583-12110iAE70,KE70,TE70..LB..(DX,SE,XL)197903-198304

75578MOULDING, BACK WINDOW CORNER, LOWER LH

main75583-12080iAE70,CE70,KE70,TE7#..(DX,GT,SE,SX,XL)..4D197903-198304

sub75583-12070

main75583-12100iAE70,KE70,TE70..CP..(DX,ST)197903-198108

main75583-12110iAE70,KE70,TE70..LB..(DX,SE,XL)197903-198304

75845MOULDING, BODY LOWER BACK PANEL, CENTER

main75840-12100iAE70..HT..(3FC,5F)..SE198202-198202

LIMITED EDITION

main75840-19035iAE70,TE70..HT..SE197903-198108

sub75840-19045

main75840-19045iAE70,KE70,TE7#..HT..(GT,XL)197903-198108

main75840-19055iAE70,KE70,TE7#..(GT,SE,XL)..4D197903-198108

main75840-19075iAE70,KE70,TE7#..SR,ST,TRR197903-198108

main75840-19076iAE70,KE70,TE71..CP198108-198304

main75840-19095iAE70,KE70,TE71..HT198108-198304

sub75840-19045

9017905095

main90179-05095

9038608012

main90386-08012

12 parts on this diagram · 4 diagrams in section
