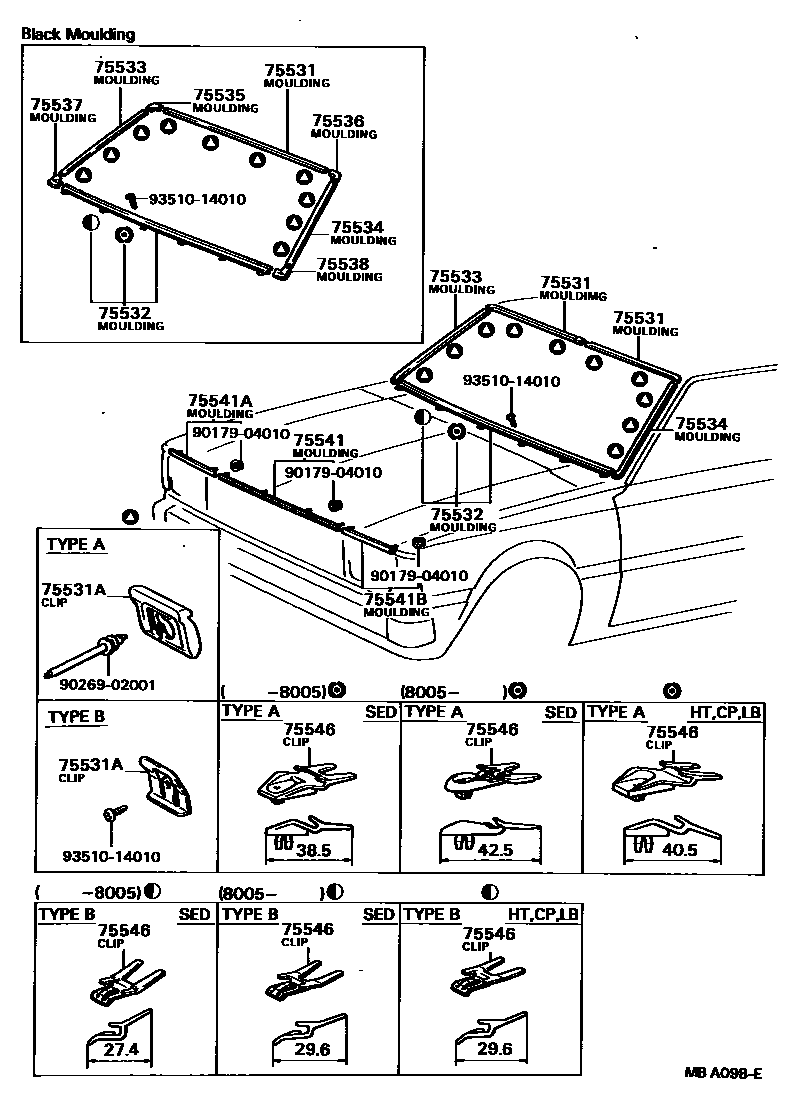

FRONT MOULDING

75531MOULDING, WINDSHIELD, OUTER UPPER

main75531-12180iAE70,CE70,KE70,TE7#..4D197903-198304

RH

main75531-12200iAE70,KE70,TE70..(DX,SE,ST,XL)..2D197903-198304

RH

main75531-12220iAE70,KE70,TE7#..(GT,SR,SX,TRR,TRS)..2D197903-198304

main75532-12110iAE70,CE70,KE70,TE7#..4D197903-198304

LH

main75532-12120iAE70,KE70,TE70..(DX,SE,ST,XL)..2D197903-198304

LH

75531ACLIP, WINDSHIELD MOULDING SET, NO.1

main75545-12030iAE70,KE70,TE7#197903-198105

TYPEA

sub75545-12031

main75545-12031iAE70,CE70,KE70,TE7#198105-198304

TYPEA

main75545-30040iAE70,CE70,KE70,TE7#197903-198304

TYPE B

75532MOULDING, WINDSHIELD, LOWER

main75504-12010iAE70,KE70,TE7#..4D197903-198005

main75504-12011iAE70,CE70,KE70,TE7#..4D198005-198304

main75504-12020iAE70,KE70,TE70..(DX,SE,ST,XL)..2D197903-198304

main75504-12030iAE70,KE70,TE7#..(GT,SR,SX,TRR,TRS)..2D197903-198304

75533MOULDING, WINDSHIELD, OUTSIDE RH

main75533-12190iAE70,KE70,TE7#..4D197903-198005

main75533-12191iAE70,CE70,KE70,TE7#..4D198005-198304

main75533-12210iAE70,KE70,TE70..(DX,SE,ST,XL)..2D197903-198304

main75533-12230iAE70,KE70,TE7#..(GT,SR,SX,TRR,TRS)..2D197903-198304

75534MOULDING, WINDSHIELD, OUTSIDE LH

main75534-12120iAE70,KE70,TE7#..4D197903-198005

main75534-12121iAE70,CE70,KE70,TE7#..4D198005-198304

main75534-12140iAE70,KE70,TE70..(DX,SE,ST,XL)..2D197903-198304

main75534-12160iAE70,KE70,TE7#..(GT,SR,SX,TRR,TRS)..2D197903-198304

75535MOULDING, WINDSHIELD CORNER, UPPER RH

main75541-12110iAE70,KE70,TE7#..(GT,SR,TRR)..2D197903-198304

75536MOULDING, WINDSHIELD CORNER, UPPER LH

main75542-12080iAE70,TE7#..(GT,SR,SX,TRR,TRS)..2D197903-198304

75537MOULDING, WINDSHIELD CORNER, LOWER RH

main75543-12060iAE70,KE70,TE7#..(GT,SR,SX,TRR,TRS)..2D197903-198304

75538MOULDING, WINDSHIELD CORNER, LOWER LH

main75544-12040iAE70,TE7#..(GT,SR,SX,TRR,TRS)..2D197903-198304

75541MOULDING, HOOD, FRONT

main75770-19145iAE70,KE70,TE7#..4D197903-198108

75541AMOULDING, HOOD, FRONT RH

main75780-19045iAE70,KE70,TE7#..4D197903-198108

75541BMOULDING, HOOD, FRONT LH

main75790-19045iAE70,KE70,TE7#..4D197903-198108

75546CLIP, WINDSHIELD OUTSIDE MOULDING

main75546-12010iAE70,KE70,TE7#..4D197903-198005

TYPE A

main75546-12011iAE70,CE70,KE70,TE7#..4D198005-198304

TYPE A

main75546-12050iAE70,KE70,TE7#..2D197903-198304

TYPE A

main75547-12010iAE70,KE70,TE7#..4D197903-198005

TYPE B

main75547-12011iAE70,CE70,KE70,TE7#..4D198005-198304

TYPE B

main75547-12020iAE70,KE70,TE7#..2D197903-198304

TYPE B

9017904010

main90179-04010

9026902001

main90269-02001

9351014010

main93510-14010

16 parts on this diagram · 1 diagram in section
