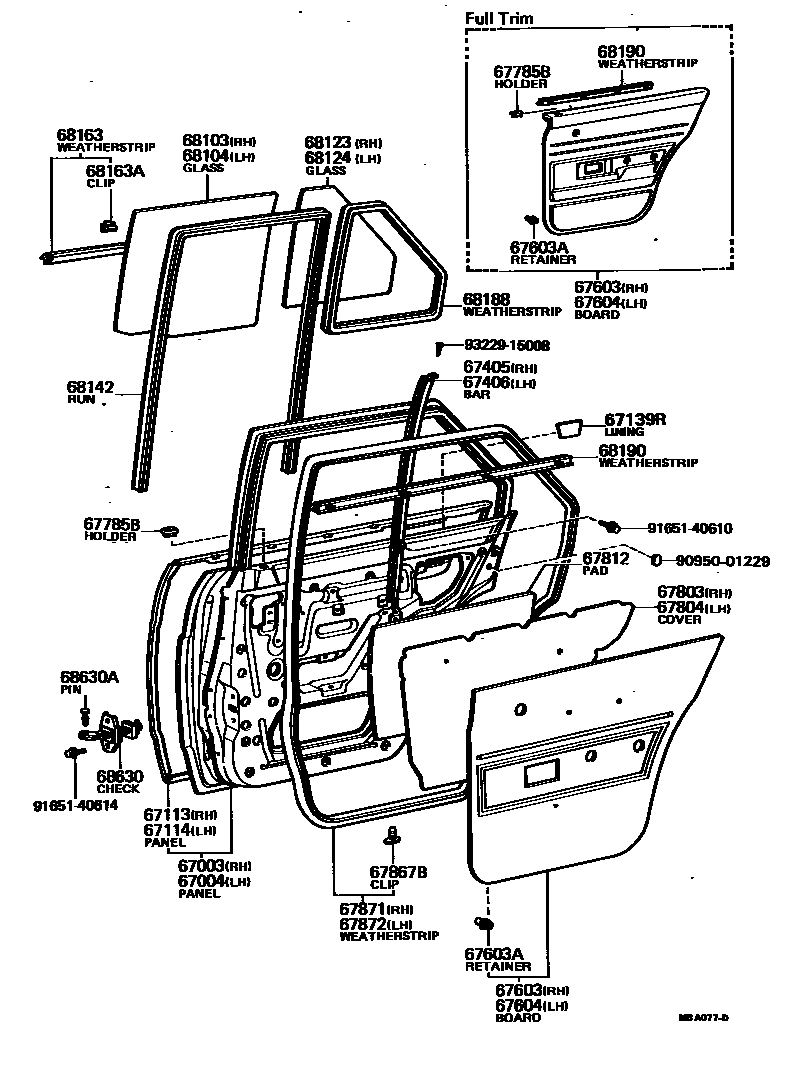

REAR DOOR PANEL & GLASS
67003PANEL SUB-ASSY, REAR DOOR, RH
67004PANEL SUB-ASSY, REAR DOOR, LH
67113PANEL, REAR DOOR, OUTER RH
sub67113-12090
67114PANEL, REAR DOOR, OUTER LH
sub67114-12090
67139RLINING, DOOR OUTSIDE PANEL REINFORCEMENT
67405BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH
67406BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH
67603BOARD SUB-ASSY, REAR DOOR TRIM, RH
BLACK,BLACK,TRIM2#
BLUE,BLUE,TRIM8#
LIGHT BROWN,BROWN,TRIM4#
LISSE,LIGHT BROWN,BROWN,TRIM4#
sub67630-12231
BLACK,BLACK,TRIM2#
BLUE,BLUE,TRIM8#
LIGHT BROWN,BROWN,TRIM4#
BLACK,BLACK,TRIM2#
BLUE,BLUE,TRIM8#
LIGHT BROWN,BROWN,TRIM4#
67603ARETAINER(FOR REAR DOOR TRIM BOARD)
67604BOARD SUB-ASSY, REAR DOOR TRIM, LH
BLACK,BLACK,TRIM2#
BLUE,BLUE,TRIM8#
LIGHT BROWN,BROWN,TRIM4#
LISSE,LIGHT BROWN,BROWN,TRIM4#
sub67640-12231
BLACK,BLACK,TRIM2#
BLUE,BLUE,TRIM8#
LIGHT BROWN,BROWN,TRIM4#
BLACK,BLACK,TRIM2#
BLUE,BLUE,TRIM8#
LIGHT BROWN,BROWN,TRIM4#
67785BHOLDER, DOOR LOCKING BUTTON COLLAR(FOR REAR DOOR)
67803COVER SUB-ASSY, REAR DOOR SERVICE HOLE, RH
sub67841-12120
67804COVER SUB-ASSY, REAR DOOR SERVICE HOLE, LH
sub67841-12120
67812PAD, REAR DOOR SILENCER
sub67812-12010
67867BCLIP, DOOR WEATHERSTRIP(FOR REAR DOOR)
67871WEATHERSTRIP, REAR DOOR, RH
67872WEATHERSTRIP, REAR DOOR, LH
68103GLASS SUB-ASSY, REAR DOOR, RH
*TT,T=3.5
BRONZE,*TT,T=3.5
68104GLASS SUB-ASSY, REAR DOOR, LH
*TT,T=3.5
BRONZE,*TT,T=3.5
68123GLASS, REAR DOOR WINDOW, RH
*TT,T=3.5
BRONZE,*TT,T=3.5
68124GLASS, REAR DOOR WINDOW, LH
*TT,T=3.5
BRONZE,*TT,T=3.5
68142RUN, REAR DOOR GLASS
L=1829.5
68163WEATHERSTRIP, REAR DOOR GLASS, OUTER
68163ACLIP(FOR REAR DOOR GLASS OUTER WEATHERSTRIP)
68188WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH
RH
LH
68190WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER
LISSE
68630APIN(FOR REAR DOOR CHECK)
sub68617-12010
9095001229
main90950-01229
9165140610
main91651-40610
9165140614
main91651-40614
9322915008
main93229-15008
32 parts on this diagram · 1 diagram in section
