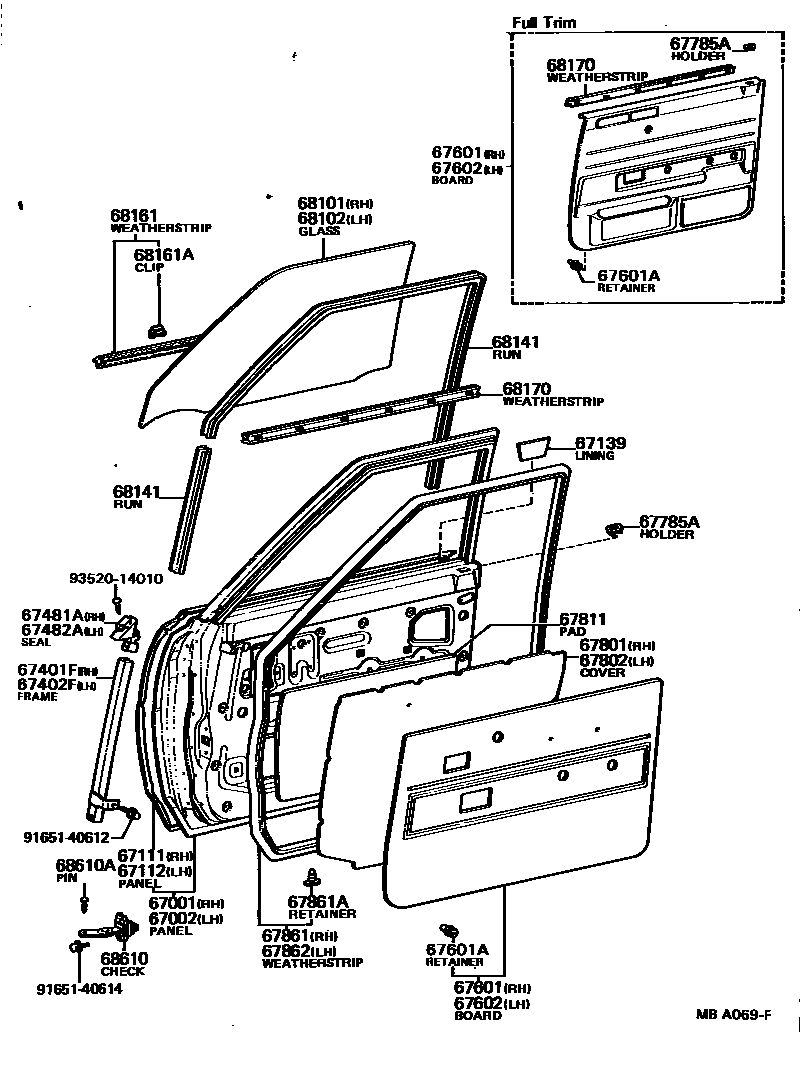

FRONT DOOR PANEL & GLASS
67001PANEL SUB-ASSY, FRONT DOOR, RH
67002PANEL SUB-ASSY, FRONT DOOR, LH
67111PANEL, FRONT DOOR, OUTER RH
67112PANEL, FRONT DOOR, OUTER LH
67139LINING, DOOR OUTSIDE PANEL REINFORCEMENT
67401FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH
67402FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH
67481ASEAL, FRONT DOOR FRONT LOWER FRAME, RH
67482ASEAL, FRONT DOOR FRONT LOWER FRAME, LH
67601BOARD SUB-ASSY, FRONT DOOR TRIM, RH
BLACK,BLACK,TRIM2#
sub67610-12870
BLUE,BLUE,TRIM8#
sub67610-12870
D-BROWN,BROWN,TRIM4#
sub67610-12870
D-BROWN,BROWN,TRIM4#
sub67610-12870
BLACK,BLACK,TRIM2#
BLUE,BLUE,TRIM8#
D-BROWN,BROWN,TRIM4#
BLACK,BLACK,TRIM2#
BLACK,BLACK,TRIM2#
BLUE,BLUE,TRIM8#
L-BROWN,BROWN,TRIM4#
L-BROWN,BROWN,TRIM4#
LISSE,L-BROWN,BROWN,TRIM4#
BLACK,BLACK,TRIM2#
BLUE,BLUE,TRIM8#
L-BROWN,BROWN,TRIM4#
BLACK,BLACK,TRIM2#
BLUE,BLUE,TRIM8#
L-BROWN,BROWN,TRIM4#
L-BROWN,BROWN,TRIM4#
BLACK,BLACK,TRIM2#
BLUE,BLUE,TRIM8#
L-BROWN,BROWN,TRIM4#
BLACK,BLACK,TRIM2#
BLUE,BLUE,TRIM8#
L-BROWN,BROWN,TRIM4#
L-BROWN,BROWN,TRIM4#
BLACK,BLACK,TRIM2#
BLUE,BLUE,TRIM8#
D-BROWN,BROWN,TRIM4#
BLACK,BLACK,TRIM2#
BLUE,BLUE,TRIM8#
D-BROWN,BROWN,TRIM4#
BLACK & GRAY,BLACK,TRIM2#
BLUE & IVORY,BLUE,TRIM8#
D-BROWN & BEIGE,BROWN,TRIM4#
D-BROWN & L-BROWN,BROWN,TRIM4#
BLACK,BLACK,TRIM2#
BLUE,BLUE,TRIM8#
D-BROWN,BROWN,TRIM4#
BLACK,BLACK,TRIM2#
BLUE,BLUE,TRIM8#
D-BROWN,BROWN,TRIM4#
BLACK,BLACK,TRIM2#
L-BROWN,BROWN,TRIM4#
L-BROWN,BROWN,TRIM4#
LISSE,TERRA COTTA
BLACK & GRAY,BLACK,TRIM2#
BLUE,BLUE,TRIM8#
D-BROWN & BEIGE,BROWN,TRIM4#
LIMITEDEDITION,D-BROWN&L-BROWN,BROWN,TRIM4#
W/POCKET,BLACK,BLACK,TRIM2#
W/POCKET,BLUE,BLUE,TRIM8#
W/POCKET,D-BROWN,BROWN,TRIM4#
APEX
67601ARETAINER(FOR FRONT DOOR TRIM BOARD)
67602BOARD SUB-ASSY, FRONT DOOR TRIM, LH
BLACK,BLACK,TRIM2#
BLUE,BLUE,TRIM8#
D-BROWN,BROWN,TRIM4#
BLACK,BLACK,TRIM2#
BLACK,BLACK,TRIM2#
BLUE,BLUE,TRIM8#
L-BROWN,BROWN,TRIM4#
BLACK,BLACK,TRIM2#
BLUE,BLUE,TRIM8#
L-BROWN,BROWN,TRIM4#
BLACK,BLACK,TRIM2#
BLUE,BLUE,TRIM8#
L-BROWN,BROWN,TRIM4#
L-BROWN,BROWN,TRIM4#
BLACK,BLACK,TRIM2#
BLUE,BLUE,TRIM8#
L-BROWN,BROWN,TRIM4#
BLACK,BLACK,TRIM2#
BLUE,BLUE,TRIM8#
L-BROWN,BROWN,TRIM4#
L-BROWN,BROWN,TRIM4#
BLACK,BLACK,TRIM2#
BLUE,BLUE,TRIM8#
D-BROWN,BROWN,TRIM4#
BLACK & GRAY,BLACK,TRIM2#
BLUE & IVORY,BLUE,TRIM8#
D-BROWN & BEIGE,BROWN,TRIM4#
D-BROWN & L-BROWN,BROWN,TRIM4#
BLACK & GRAY,BLACK,TRIM2#
BLUE & IVORY,BLUE,TRIM8#
D-BROWN & L-BROWN,BROWN,TRIM4#
BLACK & GRAY,BLACK,TRIM2#
BLUE,BLUE,TRIM8#
D-BROWN & BEIGE,BROWN,TRIM4#
BLACK,BLACK,TRIM2#
BLUE,BLUE,TRIM8#
D-BROWN,BROWN,TRIM4#
BLACK,BLACK,TRIM2#
L-BROWN,BROWN,TRIM4#
L-BROWN,BROWN,TRIM4#
BLACK & GRAY,BLACK,TRIM2#
BLUE,BLUE,TRIM8#
D-BROWN & BEIGE,BROWN,TRIM4#
D-BROWN & L-BROWN,BROWN,TRIM4#
LISSE,TERRA COTTA
BLACK & GRAY,BLACK,TRIM2#
BLUE,BLUE,TRIM8#
D-BROWN & BEIGE,BROWN,TRIM4#
LIMITEDEDITION,D-BROWN&L-BROWN,BROWN,TRIM4#
APEX
BLACK,BLACK,TRIM2#
BLUE,BLUE,TRIM8#
D-BROWN,BROWN,TRIM4#
67785AHOLDER, DOOR LOCKING BUTTON COLLAR(FOR FRONT DOOR)
67811PAD, FRONT DOOR SILENCER
67861WEATHERSTRIP, FRONT DOOR, RH
67861ARETAINER(FOR FRONT DOOR WEATHERSTRIP)
67862WEATHERSTRIP, FRONT DOOR, LH
68101GLASS SUB-ASSY, FRONT DOOR, RH
*TT,T=5.0
*TT,T=5.0
*TT,T=5.0
*TT,T=5.0
*TT,T=5.0
*TT,T=5.0
BRONZE,*TT,T=5.0
BRONZE,*TT,T=4.0
*TT,T=3.5
68102GLASS SUB-ASSY, FRONT DOOR, LH
*TT,T=5.0
*TT,T=5.0
*TT,T=5.0
*TT,T=5.0
*TT,T=5.0
*TT,T=5.0
BRONZE,*TT,T=5.0
BRONZE,*TT,T=4.0
*TT,T=3.5
68141RUN, FRONT DOOR GLASS
L=1678
L=1748
L=444,VINYL CHLORIDE
68161WEATHERSTRIP, FRONT DOOR GLASS, OUTER
RH
LH
68161ACLIP(FOR FRONT DOOR GLASS OUTER WEATHERSTRIP)
68170WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER
RH
LISSE
RH
LH
LH
68610CHECK ASSY, FRONT DOOR
68610APIN(FOR FRONT DOOR CHECK)
9165140612
9165140614
9352014010
30 parts on this diagram · 4 diagrams in section
