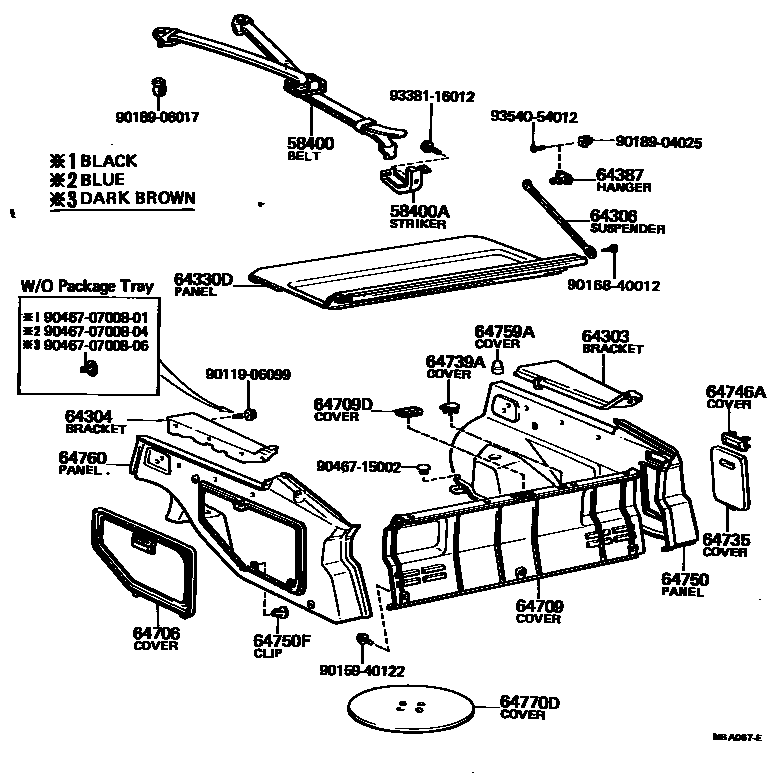

DECK BOARD & DECK TRIM COVER

0001 1 0002 1 0003 1

58400BELT ASSY, LUGGAGE HOLD, NO.1

main58400-12020iAE70,KE70,TE7#..LB..(GT,SE,XL)197908-198102

sub58400-12021

main58400-12021iAE70,KE70,TE7#..LB..(GT,SE,XL)198102-198304

58400ASTRIKER, LUGGAGE HOLD BELT

main58461-12010iAE70,KE70,TE7#..LB..(GT,SE,XL)197908-198304

64303BRACKET SUB-ASSY, PACKAGE TRAY, RH

main64301-12010-01iAE70,KE70,TE7#..CP197903-198304

BLACK,BLACK,TRIM2#

main64301-12010-04iAE70,KE70,TE7#..CP197903-198304

BLUE,BLUE,TRIM8#

main64301-12010-06iAE70,KE70,TE7#..CP197903-198304

DARK BROWN,BROWN,TRIM4#

64304BRACKET SUB-ASSY, PACKAGE TRAY, LH

main64302-12010-01iAE70,KE70,TE7#..CP197903-198304

BLACK,BLACK,TRIM2#

main64302-12010-04iAE70,KE70,TE7#..CP197903-198304

BLUE,BLUE,TRIM8#

main64302-12010-06iAE70,KE70,TE7#..CP197903-198304

DARK BROWN,BROWN,TRIM4#

64306SUSPENDER SUB-ASSY, PACKAGE TRAY TRIM

main64367-12010iAE70,KE70,TE7#..CP197903-198304

64330DPANEL ASSY, PACKAGE TRAY TRIM

main64330-12400-01iAE70,KE70,TE7#..CP197903-198304

BLACK,BLACK,TRIM2#

sub64330-12400

main64330-12400-04iAE70,KE70,TE7#..CP197903-198304

BLUE,BLUE,TRIM8#

sub64330-12400

main64330-12400-06iAE70,KE70,TE7#..CP197903-198304

DARK BROWN,BROWN,TRIM4#

sub64330-12400

64387HANGER, PACKAGE TRAY TRIM

main64381-12010iAE70,KE70,TE7#..CP197903-198304

64706COVER SUB-ASSY, QUARTER TRIM, JACK

main64707-12020-01iAE70,KE70,TE7#..CP,LB197903-198304

BLACK,BLACK,TRIM2#

sub64707-12020

main64707-12020-04iAE70,KE70,TE7#..CP,LB197903-198304

BLUE,BLUE,TRIM8#

sub64707-12020

main64707-12020-06iAE70,KE70,TE7#..CP,LB197903-198304

DARK BROWN,BROWN,TRIM4#

sub64707-12020

64709COVER SUB-ASSY, LOWER BACK PANEL

main64706-12010-01iAE70,KE70,TE7#..CP197903-198304

BLACK,BLACK,TRIM2#

main64706-12010-04iAE70,KE70,TE7#..CP197903-198304

BLUE,BLUE,TRIM8#

main64706-12010-06iAE70,KE70,TE7#..CP197903-198304

DARK BROWN,BROWN,TRIM4#

main64706-12020-01iAE70,KE70,TE7#..LB197903-198005

BLACK,BLACK,TRIM2#

main64706-12020-04iAE70,KE70,TE7#..LB197903-198005

BLUE,BLUE,TRIM8#

main64706-12020-06iAE70,KE70,TE7#..LB197903-198005

DARK BROWN,DARK BROWN,TRIM4#

main64716-12030-01iAE70,KE70,TE7#..LB198005-198304

BLACK,BLACK,TRIM2#

sub64706-12020

main64716-12030-04iAE70,KE70,TE7#..LB198005-198304

BLUE,BLUE,TRIM8#

sub64706-12020

main64716-12030-06iAE70,KE70,TE7#..LB198005-198304

DARK BROWN,BROWN,TRIM4#

sub64706-12020

64709DCOVER, BACK DOOR STRIKER

main64749-12020-01iAE70,KE70,TE7#..CP,LB197903-198304

BLACK,BLACK,TRIM2#

main64749-12020-04iAE70,KE70,TE7#..CP,LB197903-198304

BLUE,BLUE,TRIM8#

main64749-12020-06iAE70,KE70,TE7#..CP,LB197903-198304

DARK BROWN,BROWN,TRIM4#

64735COVER, DECK TRIM SIDE SERVICE HOLE

main64735-12010-01iAE70,KE70,TE7#..CP197903-198304

BLACK,BLACK,TRIM2#

main64735-12010-04iAE70,KE70,TE7#..CP197903-198304

BLUE,BLUE,TRIM8#

main64735-12010-06iAE70,KE70,TE7#..CP197903-198304

DARK BROWN,BROWN,TRIM4#

main64735-12020-01iAE70,KE70,TE7#..LB197903-198304

BLACK,BLACK,TRIM2#

sub64735-12020

main64735-12020-04iAE70,KE70,TE7#..LB197903-198304

BLUE,BLUE,TRIM8#

sub64735-12020

main64735-12020-06iAE70,KE70,TE7#..LB197903-198304

DARK BROWN,BROWN,TRIM4#

sub64735-12020

64739ACOVER, DECK TRIM REAR WASHER

main64739-12020-01iKE70,TE71..SR,TRS197903-198304

BLACK,BLACK,TRIM2#

main64739-12020-04iKE70,TE71..SR,TRS197903-198304

BLUE,BLUE,TRIM8#

main64739-12020-06iAE70,KE70..LB..(DX,SX,XL)197903-198304

DARK BROWN,BROWN,TRIM4#

64746ACOVER, DECK TRIM SIDE LAMP HOLE

main64746-12020-01iAE70,KE70,TE70..(CP,LB)..(DX,SE,XL)197903-198304

BLACK,BLACK,TRIM2#

sub64746-12020

main64746-12020-04iKE70,TE71..SR,TRS197903-198304

BLUE,BLUE,TRIM8#

sub64746-12020

main64746-12020-06iKE70..DX..2D197903-198304

DARK BROWN,BROWN,TRIM4#

sub64746-12020

64750PANEL ASSY, DECK SIDE TRIM, RH

main64731-12900-01iAE70,KE70,TE7#..CP197903-198304

BLACK,BLACK,TRIM2#

main64731-12900-04iAE70,KE70,TE7#..CP197903-198304

BLUE,BLUE,TRIM8#

main64731-12900-06iAE70,KE70,TE7#..CP197903-198304

DARK BROWN,BROWN,TRIM4#

main64731-12901-01iAE70,KE70,TE7#..LB197903-198304

BLACK,BLACK,TRIM2#

main64731-12901-04iAE70,KE70,TE7#..LB197903-198304

BLUE,BLUE,TRIM8#

main64731-12901-06iAE70,KE70,TE7#..LB197903-198304

DARK BROWN,BROWN,TRIM4#

64750FCLIP(FOR DECK SIDE TRIM PANEL)

main90467-10005-01iAE70,KE70,TE7#..CP,LB197903-198304

BLACK,BLACK,TRIM2#

sub90467-10005

sub90467-06017

main90467-10005-04iAE70,KE70,TE7#..CP,LB197903-198304

BLUE,BLUE,TRIM8#

sub90467-10005

sub90467-06017

main90467-10005-16iAE70,KE70,TE7#..CP,LB197903-198304

DARK BROWN,BROWN,TRIM4#

sub90467-10005

sub90467-06017

64759ACOVER, SHOCK ABSORBER HEAD

main64759-14010-11iAE70,KE70,TE7#..CP,LB197903-198304

BLACK,BLACK,TRIM2#

sub64759-14010

main64759-14010-14iAE70,KE70,TE7#..CP,LB197903-198304

BLUE,BLUE,TRIM8#

sub64759-14010

main64759-14010-46iAE70,KE70,TE7#..CP,LB197903-198304

DARK BROWN,BROWN,TRIM4#

sub64759-14010

64760PANEL ASSY, DECK SIDE TRIM, LH

main64732-12900-01iAE70,KE70,TE7#..CP197903-198304

BLACK,BLACK,TRIM2#

main64732-12900-04iAE70,KE70,TE7#..CP197903-198304

BLUE,BLUE,TRIM8#

main64732-12900-06iAE70,KE70,TE7#..CP197903-198304

DARK BROWN,BROWN,TRIM4#

main64732-12901-01iAE70,KE70,TE7#..LB197903-198304

BLACK,BLACK,TRIM2#

main64732-12901-04iAE70,KE70,TE7#..LB197903-198304

BLUE,BLUE,TRIM8#

main64732-12901-06iAE70,KE70,TE7#..LB197903-198304

DARK BROWN,BROWN,TRIM4#

64770DCOVER ASSY, SPARE WHEEL

main64770-20030iAE70,KE70,TE7#..CP,LB197903-198304

9011906099

main90119-06099

9015940122

main90159-40122

9016840012

main90168-40012

9018904025

main90189-04025

9018906017

main90189-06017

904670700801

main90467-0700801

904670700804

main90467-0700804

904670700806

main90467-0700806

9046715002

main90467-15002

9338116012

main93381-16012

9354054012

main93540-54012

29 parts on this diagram · 3 diagrams in section
