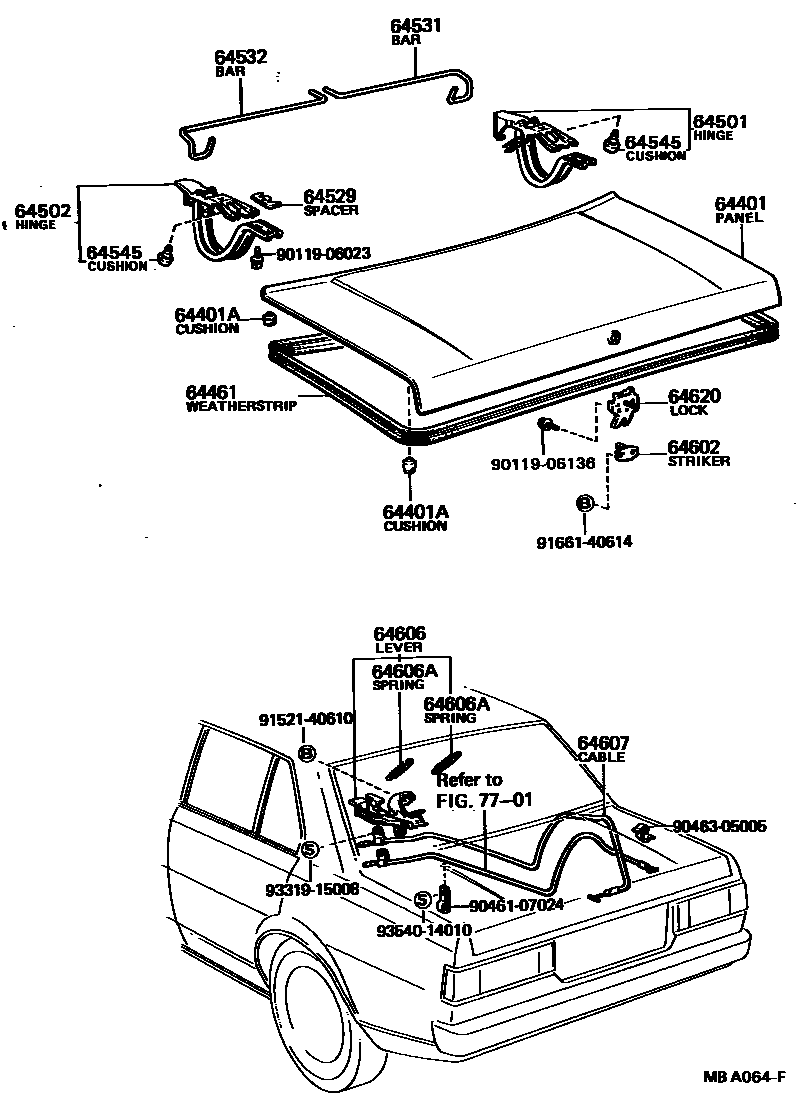

LUGGAGE COMPARTMENT DOOR & LOCK

64401PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR

main64401-12907iAE70,KE70,TE7#..HT197903-198101

sub64401-12912

main64401-12908iAE70,CE70,KE70,TE7#..4D197903-198304

main64401-12912iAE70,KE70,TE7#..HT198101-198304

64401ACUSHION(FOR LUGGAGE COMPARTMENT DOOR PANEL)

main90541-07003iAE70,KE70,TE7#..HT,SED197903-198304

FR

main90541-09007iAE70,CE70,KE70,TE7#..HT,SED197903-198304

RR

main90541-09130iAE70,KE70,TE71..HT198108-198304

FR

64461WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR

main64461-12190iAE70,KE70,TE7#..HT197903-198304

main64461-12210iAE70,CE70,KE70,TE7#..4D197903-198304

64501HINGE SUB-ASSY, LUGGAGE COMPARTMENT DOOR, RH

main64510-12140iAE70,CE70,KE70,TE7#..4D197903-198304

main64510-12160iAE70,KE70,TE7#..HT197903-198304

64502HINGE SUB-ASSY, LUGGAGE COMPARTMENT DOOR, LH

main64520-12140iAE70,CE70,KE70,TE7#..4D197903-198304

main64520-12150iAE70,KE70,TE7#..HT197903-198304

64529SPACER, LUGGAGE COMPARTMENT DOOR HINGE

main64529-20010iAE70,CE70,KE70,TE7#..4D197903-198304

main64529-22010iAE70,KE70,TE7#..HT197903-198304

64531BAR, LUGGAGE DOOR HINGE TORSION, RH

main64531-12110iAE70,CE70,KE70,TE7#..4D197903-198304

main64531-12120iAE70,KE70,TE7#..HT197903-198304

64532BAR, LUGGAGE DOOR HINGE TORSION, LH

main64532-12090iAE70,CE70,KE70,TE7#..4D197903-198304

main64532-12110iAE70,KE70,TE7#..HT197903-198304

64545CUSHION, LUGGAGE DOOR HINGE

main90541-07007iAE70,KE70,TE7#..HT197903-198304

main90541-09013iAE70,KE70,TE7#..4D197903-198006

main90541-09014iAE70,CE70,KE70,TE7#..4D198006-198304

64602STRIKER SUB-ASSY, LUGGAGE COMPARTMENT DOOR LOCK

main64620-22030iAE70,CE70,KE70,TE7#..HT,SED197903-198304

64606LEVER SUB-ASSY, LUGGAGE DOOR LOCK OPEN

main64606-12030iAE70,KE70,TE7#..(HT,SED)..(GT,SE,XL)197903-198304

64606ASPRING, TENSION(FOR LUGGAGE DOOR LOCK OPEN LEVER)

main90506-09004iAE70,KE70,TE7#..(HT,SED)..(GT,SE,XL)197903-198304

64607CABLE SUB-ASSY, LUGGAGE DOOR LOCK CONTROL

main64607-12060iAE70,KE70,TE7#..(HT,SED)..(GT,SE,XL)197903-198304

sub64607-20020

64620LOCK ASSY, LUGGAGE COMPARTMENT DOOR

main64610-12020iAE70,CE70,KE70,TE7#..HT,SED197903-198304

7701

9011906023

main90119-06023

9011906136

main90119-06136

9046107024

main90461-07024

9046305005

main90463-05005

9152140610

main91521-40610

9166140614

main91661-40614

9331915008

main93319-15008

9354014010

main93540-14010

23 parts on this diagram · 1 diagram in section
