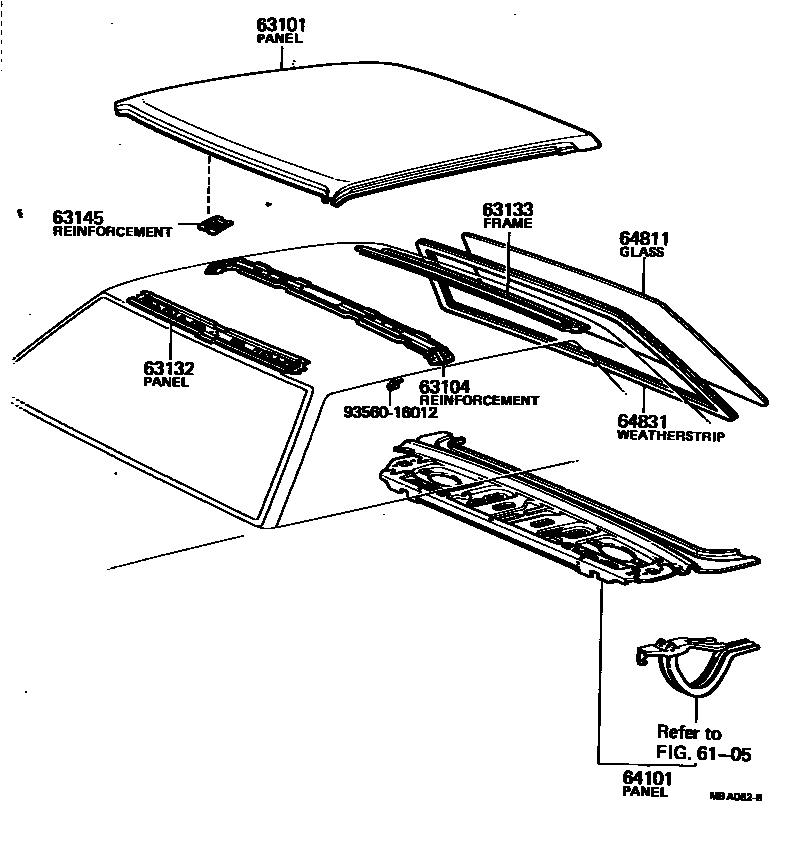

ROOF PANEL & BACK WINDOW GLASS

0001 1 0002 1 0003 1 0004 1

6105

63101PANEL SUB-ASSY, ROOF

main63111-12130iAE70,KE70,TE7#..HT197903-198304

main63111-12140iAE70,CE70,KE70,TE7#..4D197903-198304

main63111-12150iAE70,KE70,TE7#..CP197903-198304

main63111-12160iAE70,KE70,TE7#..LB197903-198304

main63111-12170iAE70,KE70,TE7#..LB..(GT,SE,XL)197908-198304

W/REMOVABLE ROOF

main63111-12180iAE70,TE71..CP198108-198304

W/REMOVABLE ROOF

63104REINFORCEMENT SUB-ASSY, ROOF PANEL, CENTER

main63141-12060iAE70,CE70,KE70,TE7#..4D197903-198304

main63141-12070iAE70,KE70,TE7#..CP,HT197903-198304

main63141-12080iAE70,KE70,TE7#..LB197903-198304

63132PANEL, WINDSHIELD HEADER, INNER

main63132-12080iAE70,CE70,KE70,TE7#..4D197903-198304

main63132-12090iAE70,KE70,TE7#..2D197903-198304

63133FRAME, BACK WINDOW OPENING, UPPER

main63105-12010iKE70..CP..DX197903-198108

main63105-12020iAE70,KE70,TE7#..CP197903-198304

W/RR DEFOGGER,RR WIPER

main63105-12030iKE70,TE71..SR,TRS197903-198304

W/RR DEFOGGER,W/O RR WIPER

main63105-12050iKE70..LB..DX197903-198304

main63105-12060iAE70,KE70,TE70..LB..(DX,SX,XL)197903-198304

W/RR DEFOGGER,W/O RR WIPER

main63105-12070iAE70,KE70,TE7#..LB197903-198304

W/RR DEFOGGER,RR WIPER

main63133-12110iAE70,KE70,TE7#..HT197903-198304

main63133-12120iAE70,CE70,KE70,TE7#..4D197903-198304

63145REINFORCEMENT, WINDSHIELD HEADER INNER PANEL

main63145-12020iAE70,CE70,KE70,TE7#..4D197903-198304

main63145-12030iAE70,KE70,TE7#..2D197903-198304

64101PANEL SUB-ASSY, UPPER BACK

main64101-12170iAE70,KE70,TE7#..HT197903-198108

main64101-12180iAE70,CE70,KE70,TE7#..4D197903-198304

main64101-12210iAE70,KE70,TE71..HT198108-198304

64811GLASS, BACK WINDOW

main64801-12230iAE70,KE70,TE7#..HT197903-198304

*TT,T=4.0,W/RR DEFOGGER

main64801-12250iAE70,CE70,KE70,TE7#..4D197903-198304

*TT,T=4.0,W/RR DEFOGGER

main64801-12300iAE70..HT..(3FC,5F)..SE198202-198202

BRONZE,*TT,T=4.0,W/RR DEFOGGER

main64801-12430iAE70..(3FC,5F)..SE..4D198210-198304

BRONZE,*TT,T=4.0,W/RR DEFOGER

main64811-12490iKE70..HT..DX197903-198108

*TT,T=4.0

sub64801-12090

main64811-12530iAE70,CE70,KE70..(DX,SPD)..4D197903-198304

*TT,T=4.0

sub64801-12250

64831WEATHERSTRIP, BACK WINDOW GLASS

main64812-12230iAE70,KE70,TE70..HT197903-198304

main64812-12240iAE70,TE71..HT..(GT,SX)197903-198304

main64812-12250iAE70,CE70,KE70,TE7#..(DX,GT,SE,SX,XL)..4D197903-198304

main64812-12260iCE70,KE70..SPD197903-198304

9356016012

main93560-16012

10 parts on this diagram · 4 diagrams in section
