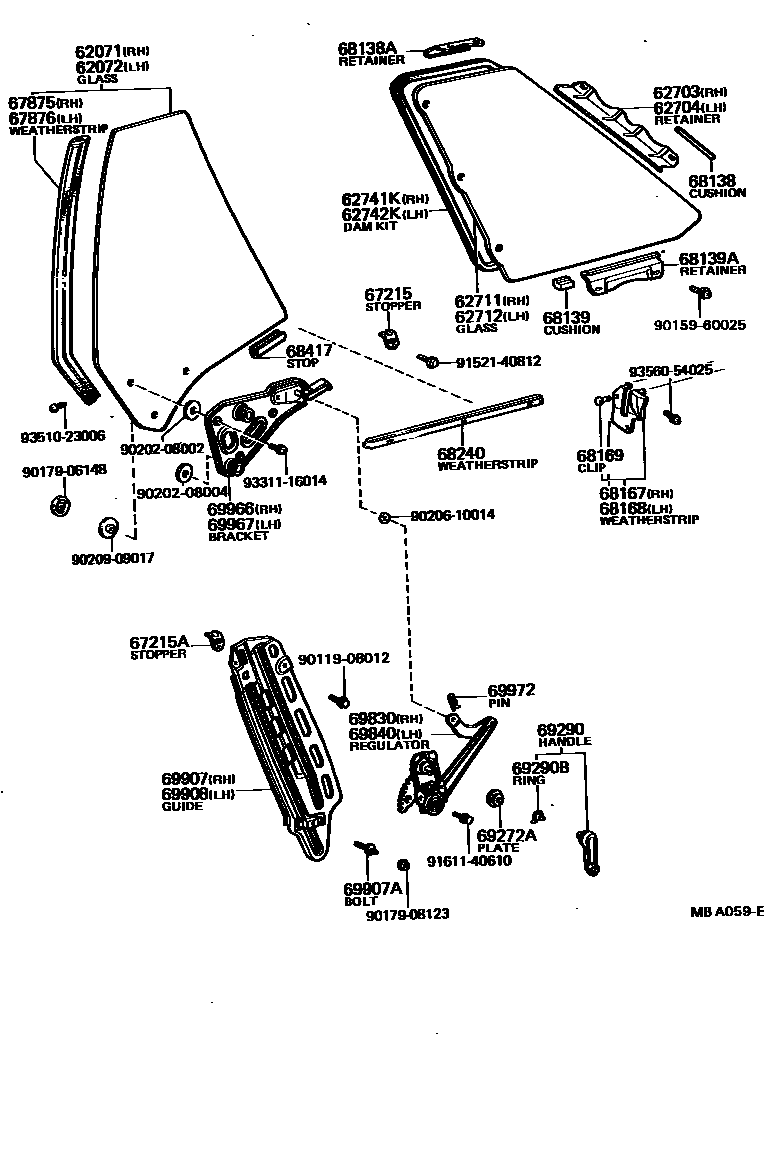

QUARTER WINDOW

0001 1 0002 1 0003 1

62071GLASS SUB-ASSY, QUARTER, RH

main62071-12130iAE70,KE70,TE70..HT,LB197903-198108

*TT,T=4.0

main62071-12150iTE71..GT..2D197903-198209

*TT,T=4.0

sub62071-12170

main62071-12160iAE70..HT..(3FC,5F)..SE198202-198202

BRONZE,*TT,T=4.0

main62071-12170iAE70,KE70,TE71..HT,LB198209-198304

*TT,T=4.0

62072GLASS SUB-ASSY, QUARTER, LH

main62072-12130iAE70,KE70,TE70..HT,LB197903-198108

*TT,T=4.0

main62072-12150iTE71..GT..2D197903-198209

*TT,T=4.0

sub62072-12170

main62072-12160iAE70..HT..(3FC,5F)..SE198202-198202

BRONZE,*TT,T=4.0

main62072-12170iAE70,KE70,TE71..HT,LB198209-198304

*TT,T=4.0

62703RETAINER SUB-ASSY, QUARTER WINDOW GLASS, RH

main69965-12030iAE70,KE70,TE7#..HT197903-198304

62704RETAINER SUB-ASSY, QUARTER WINDOW GLASS, LH

main69965-12030iAE70,KE70,TE7#..HT197903-198304

62711GLASS, QUARTER WINDOW, RH

main62711-12280iAE70,KE70,TE7#..CP197903-198108

*TT,T=4.0,FR

sub62711-12281

main62711-12281iAE70,KE70,TE71..CP198108-198304

*TT,T=4.0,FR

main68133-12010iAE70,KE70,TE7#..HT197903-198304

*TT,T=4.0

main68133-12030iAE70,KE70,TE7#..CP197903-198108

*TT,T=4.0,RR

sub68133-12031

main68133-12031iAE70,KE70,TE71..CP198108-198304

*TT,T=4.0,RR

main68133-12040iAE70,KE70,TE7#..LB197903-198108

*TT,T=4.0

sub68133-12070

main68133-12070iAE70,KE70,TE71..LB198108-198304

*TT,T=4.0

main68133-12080iAE70..HT..(3FC,5F)..SE198202-198202

BRONZE,*TT,T=4.0

62712GLASS, QUARTER WINDOW, LH

main62712-12280iAE70,KE70,TE7#..CP197903-198108

*TT,T=4.0,FR

sub62712-12281

main62712-12281iAE70,KE70,TE71..CP198108-198304

*TT,T=4.0,FR

main68134-12010iAE70,KE70,TE7#..HT197903-198304

*TT,T=4.0

main68134-12030iAE70,KE70,TE7#..CP197903-198108

*TT,T=4.0,RR

sub68134-12031

main68134-12031iAE70,KE70,TE71..CP198108-198304

*TT,T=4.0,RR

main68134-12040iAE70,KE70,TE7#..LB197903-198108

*TT,T=4.0

sub68134-12070

main68134-12070iAE70,KE70,TE71..LB198108-198304

*TT,T=4.0

main68134-12080iAE70..HT..(3FC,5F)..SE198202-198202

BRONZE,*TT,T=4.0

62741WEATHERSTRIP, QUARTER WINDOW, RH

main62741-12100iAE70,KE70,TE7#..CP197903-198304

62741KDAM KIT, QUARTER WINDOW, RH

main04681-12010iAE70,KE70,TE7#..2D197903-198304

62742WEATHERSTRIP, QUARTER WINDOW, LH

main62742-12100iAE70,KE70,TE7#..CP197903-198304

62742KDAM KIT, QUARTER WINDOW, LH

main04681-12010iAE70,KE70,TE7#..2D197903-198304

67215STOPPER, QUARTER WINDOW, UPPER FRONT

main67215-95500iAE70,KE70,TE7#..HT,LB197903-198304

67215ASTOPPER, QUARTER WINDOW, UPPER

main67215-12030iAE70,KE70,TE7#..HT,LB197903-198304

67875WEATHERSTRIP, REAR QUARTER WINDOW GLASS, RH

main67081-12020iAE70,KE70,TE7#..HT,LB197903-198209

sub67081-12030

main67081-12030iAE70,KE70,TE71..HT,LB198209-198304

67876WEATHERSTRIP, REAR QUARTER WINDOW GLASS, LH

main67082-12020iAE70,KE70,TE7#..HT,LB197903-198209

sub67082-12030

main67082-12030iAE70,KE70,TE71..HT,LB198209-198304

68138CUSHION, QUARTER WINDOW, NO.2 UPPER

main68138-12010iAE70,KE70,TE7#..HT197903-198304

main68138-12020iAE70,KE70,TE7#..CP,LB197903-198304

68138ARETAINER, QUARTER WINDOW, NO.2 UPPER

main68144-12010iAE70,KE70,TE7#..HT197903-198304

main68144-12030iAE70,KE70,TE7#..LB197903-198304

main68144-12040iAE70,KE70,TE7#..CP197903-198304

RH

main68184-12030iAE70,KE70,TE7#..CP197903-198304

LH

68139CUSHION, QUARTER WINDOW, NO.2 LOWER

main68139-12020iAE70,KE70,TE7#..HT197903-197912

main68139-12030iAE70,KE70,TE7#..CP,LB197903-198304

68139ARETAINER, QUARTER WINDOW, NO.2 LOWER

main68145-12010iAE70,KE70,TE7#..HT197903-198304

main68145-12020iAE70,KE70,TE7#..LB197905-198304

RH

main68145-12030iAE70,KE70,TE71..LB197903-197905

sub68145-12020

sub68185-12020

main68145-12040iAE70,KE70,TE7#..CP197903-198304

RH

main68185-12010iAE70,KE70,TE7#..CP197903-198304

LH

main68185-12020iAE70,KE70,TE7#..LB197905-198304

LH

68167WEATHERSTRIP, REAR QUARTER FRONT CORNER, RH

main67941-12020iAE70,KE70,TE71..HT,LB197903-197907

sub67941-12021

main67941-12021iAE70,KE70,TE7#..HT,LB197907-198304

68168WEATHERSTRIP, REAR QUARTER FRONT CORNER, LH

main67942-12020iAE70,KE70,TE71..HT,LB197903-197907

sub67942-12021

main67942-12021iAE70,KE70,TE7#..HT,LB197907-198304

68169CLIP, CORNER WEATHERSTRIP

main67869-30020iAE70,KE70,TE7#..HT,LB197903-198304

68240WEATHERSTRIP ASSY, QUARTER GLASS, INNER

main68190-12090iAE70,KE70,TE7#..HT,LB197903-198304

RH

main68240-12040iAE70,KE70,TE7#..HT,LB197903-198304

LH

68417STOPPER, REAR QUARTER GLASS, LOWER

main67218-12010iAE70,KE70,TE7#..HT,LB197903-198304

69272APLATE, DOOR WINDOW REGULATOR HANDLE

main69272-30010iAE70,TE7#..(GT,SE)..2D197903-198108

main69285-22010iAE70,TE70..XL..2D197903-198304

69290HANDLE ASSY, QUARTER WINDOW REGULATOR

main69260-12010-04iAE70,KE70,TE70..HT..(DX,XL)197903-198108

BLUE,BLUE,TRIM8#

sub69260-12010

main69260-12010-11iAE70,KE70,TE70..HT..(DX,XL)197903-198108

BLACK,BLACK,TRIM2#

sub69260-12010

main69260-12010-26iAE70,KE70,TE70..HT..(DX,XL)197903-198108

DARK BROWN,BROWN,TRIM4#

sub69260-12010

main69260-12030-01iAE70,TE7#..LB..(GT,SE)197903-198108

BLACK,BLACK,TRIM2#

main69260-12030-04iAE70,TE7#..LB..(GT,SE)197903-198108

BLUE,BLUE,TRIM8#

main69260-12030-06iAE70,TE7#..LB..(GT,SE)197903-198108

DARK BROWN,BROWN,TRIM4#

main69260-12050-01iAE70,KE70,TE70..LB..(DX,XL)197903-198108

KOJIMA,BLACK,BLACK,TRIM2#

sub69260-12050

main69260-12050-04iAE70,KE70,TE70..LB..(DX,XL)197903-198108

KOJIMA,BLUE,BLUE,TRIM8#

sub69260-12050

main69260-12050-06iAE70,KE70,TE70..LB..(DX,XL)197903-198108

KOJIMA,DARK BROWN,BROWN,TRIM4#

sub69260-12050

main69260-12060-01iAE70,KE70..HT..(SX,XL)198108-198304

KOJIMA,BLACK,BLACK,TRIM2#

sub69260-14020

main69260-12060-06iAE70,KE70..HT..(SX,XL)198108-198304

KOJIMA,DARK BROWN,BROWN,TRIM4#

sub69260-14020

main69260-12060-14iAE70,KE70..HT..(SX,XL)198108-198304

KOJIMA,BLUE,BLUE,TRIM8#

sub69260-14020

main69260-12070-01iAE70,KE70,TE71..HT..(GT,SE)198108-198304

KOJIMA,BLACK,BLACK,TRIM2#

sub69260-14030

main69260-12070-06iAE70,KE70,TE71..HT..(GT,SE)198108-198304

KOJIMA,DARK BROWN,BROWN,TRIM4#

sub69260-14030

main69260-12070-14iAE70,KE70,TE71..LB198108-198304

KOJIMA,BLUE,BLUE,TRIM8#

sub69260-14030

main69260-14020-01iAE70,KE70..HT..(SX,XL)198108-198304

AISIN,BLACK,BLACK,TRIM2#

sub69260-14020

sub69260-22030

main69260-14020-06iAE70,KE70..HT..(SX,XL)198108-198304

AISIN,DARK BROWN,BROWN,TRIM4#

sub69260-14020

sub69260-22030

main69260-14020-14iAE70,KE70..HT..(SX,XL)198108-198304

AISIN,BLUE,BLUE,TRIM8#

sub69260-14020

sub69260-22030

main69260-14030-01iAE70,KE70,TE71..HT..(GT,SE)198108-198304

AISIN,BLACK,BLACK,TRIM2#

sub69260-14030

main69260-14030-06iAE70,KE70,TE71..HT..(GT,SE)198108-198304

AISIN,DARK BROWN,BROWN,TRIM4#

sub69260-14030

main69260-14030-14iAE70,KE70,TE71..HT..(GT,SE)198108-198304

AISIN,BLUE,BLUE,TRIM8#

sub69260-14030

main69260-20050-01iAE70,KE70,TE70..LB..(DX,XL)197903-198108

AISIN,BLACK,BLACK,TRIM2#

sub69260-20050

main69260-20050-04iAE70,KE70,TE70..LB..(DX,XL)197903-198108

AISIN,BLUE,BLUE,TRIM8#

sub69260-20050

main69260-20050-06iAE70,KE70,TE70..LB..(DX,XL)197903-198108

AISIN,DARK BROWN,BROWN,TRIM4#

sub69260-20050

main69260-22020-01iAE70,TE7#..HT..(GT,SE)197903-198108

BLACK,BLACK,TRIM2#

sub69260-22020

sub69260-14030

main69260-22020-04iAE70,TE7#..HT..(GT,SE)197903-198108

BLUE,BLUE,TRIM8#

sub69260-22020

sub69260-14030

main69260-22020-16iAE70,TE7#..HT..(GT,SE)197903-198108

DARK BROWN,BROWN,TRIM4#

sub69260-22020

sub69260-14030

69290BRING, SNAP(FOR QUARTER WINDOW REGULATOR HANDLE)

main90520-01002iAE70,KE70,TE71..HT,LB198108-198304

main90520-01274iAE70,KE70,TE7#..HT,LB197903-198108

69830REGULATOR ASSY, REAR QUARTER WINDOW, RH

main69803-12040iAE70,KE70,TE7#..HT,LB197903-198304

69840REGULATOR ASSY, REAR QUARTER WINDOW, LH

main69804-12040iAE70,KE70,TE7#..HT,LB197903-198304

69907GUIDE SUB-ASSY, QUARTER REGULATOR ROLLER, RH

main67405-12030iAE70,KE70,TE7#..HT,LB197903-198304

69907ABOLT, STUD, NO.1(FOR QUARTER REGULATOR ROLLER GUIDE)

main90116-08076iAE70,KE70,TE7#..HT,LB197903-198304

69908GUIDE SUB-ASSY, QUARTER REGULATOR ROLLER, LH

main67406-12030iAE70,KE70,TE7#..HT,LB197903-198304

69966BRACKET, REAR QUARTER WINDOW GLASS, RH

main69905-12060iAE70,KE70,TE7#..HT,LB197903-198304

69967BRACKET, REAR QUARTER WINDOW GLASS, LH

main69906-12050iAE70,KE70,TE7#..HT,LB197903-198304

69972PIN, QUARTER GLASS CHANNEL SETTING

main69972-30010iAE70,KE70,TE7#..HT,LB197903-198304

9011908012

main90119-08012

9015960025

main90159-60025

9017906148

main90179-06148

9017908123

main90179-08123

9020208002

main90202-08002

9020208004

main90202-08004

9020610014

main90206-10014

9020909017

main90209-09017

9152140812

main91521-40812

9161140610

main91611-40610

9331116014

main93311-16014

9351023006

main93510-23006

9356054025

main93560-54025

47 parts on this diagram · 3 diagrams in section
