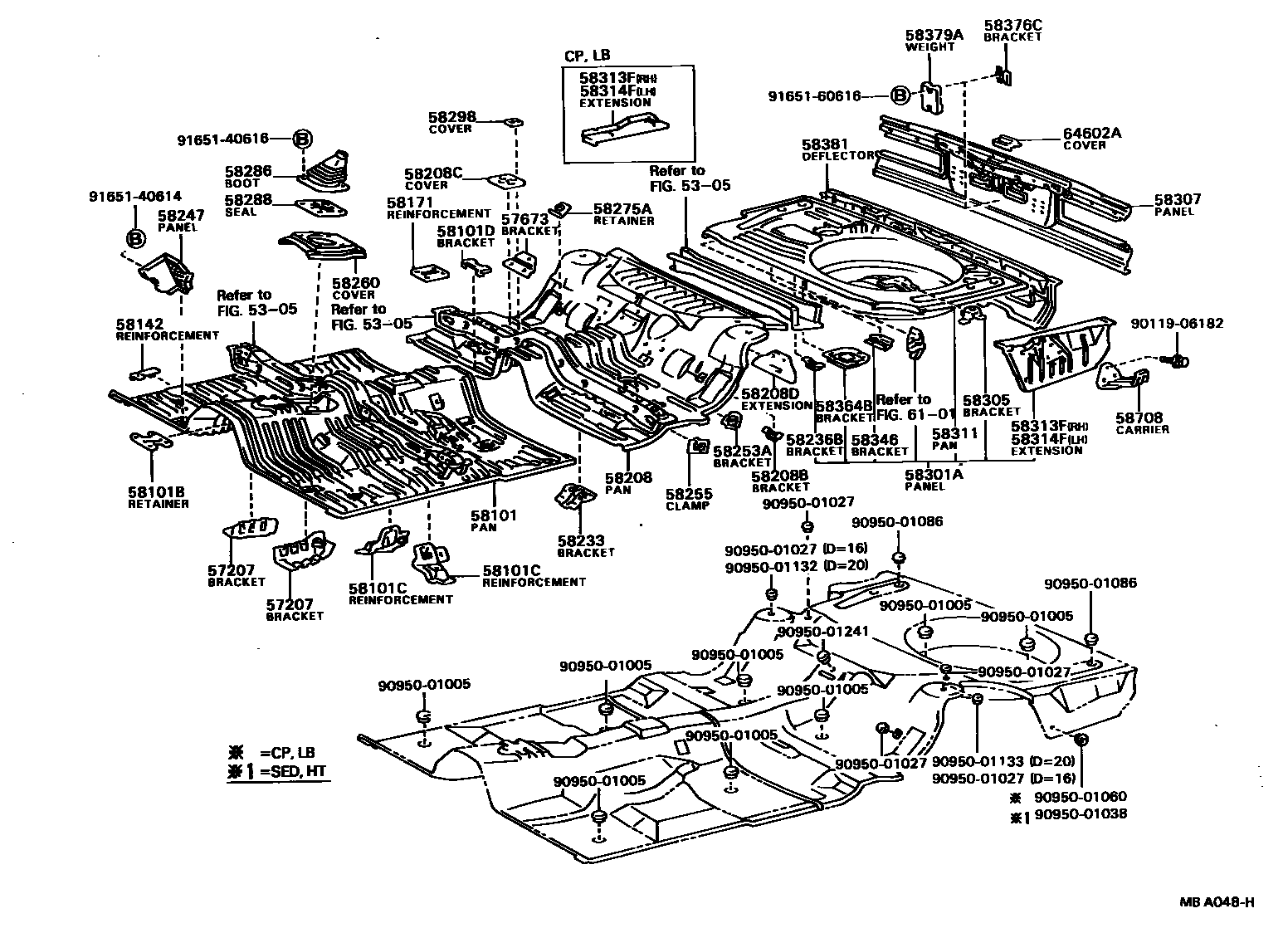

FLOOR PAN & LOWER BACK PANEL

5305

57207BRACKET SUB-ASSY, ENGINE REAR MOUNTING MEMBER

main57207-12030iAE70,KE70,TE7#197903-198107

RH

main57207-12050iAE70,CE70,KE70,TE7#198107-198304

RH

main57208-12040iAE70,KE70,TE7#197903-198107

LH

main57208-12060iAE70,CE70,KE70,TE7#198107-198304

LH

57673BRACKET, REAR SEATBACK HINGE MOUNTING

main57673-12020iAE70,KE70,TE70..CP,LB197903-198304

58101PAN SUB-ASSY, FRONT FLOOR

main58111-12140iAE70,CE70,KE70,TE7#197903-198304

58101BRETAINER, CONSOLE BOX MOUNTING

main58164-12010iAE70,CE70,KE70,TE7#197903-198304

58101CREINFORCEMENT SUB-ASSY, DRIVE SHAFT SUPPORT

main58205-12020iAE70,CE70,KE70,TE7#197903-198304

RH

main58206-12020iAE70,CE70,KE70,TE7#197903-198304

LH

58101DBRACKET, PARKING BRAKE CABLE GUIDE

main58264-12020iAE70,CE70,KE70,TE7#197903-198304

58142REINFORCEMENT, FLOOR SIDE MEMBER TO FLOOR PAN

main58141-16010iAE70,CE70,KE70,TE7#197903-198304

58171REINFORCEMENT, PARKING BRAKE BASE

main58171-12040iAE70,CE70,KE70,TE7#197903-198304

58208PAN, CENTER FLOOR

main58211-12090iAE70,KE70,TE7#197903-198109

sub58211-12130

main58211-12130iAE70,CE70,KE70,TE71198109-198304

58208BBRACKET, CENTER FLOOR HEAT INSULATOR

main58236-14010iAE70,CE70,KE70,TE7#197903-198304

58208CCOVER, CENTER FLOOR HOLE

main58285-12010iAE70,CE70,KE70,TE7#197903-198304

58208DEXTENSION, CENTER FLOOR TO BRACE

main64227-12040iAE70,CE70,KE70,TE71..4D197903-198304

58233BRACKET, EXHAUST PIPE MOUNTING

main58233-12010iAE70,CE70,KE70,TE71197903-198304

58236BBRACKET, CENTER FLOOR HEAT INSULATOR

main58236-14010iAE70,CE70,KE70,TE71198208-198304

58247PANEL, FOOTREST, INSIDE

main58190-12010iAE70,TE7#..GT,SR,TRR198002-198108

main58191-12030iAE70,TE7#..GT,SR,TRR197903-198002

sub58190-12010

main58191-12040iAE70,KE70,TE71..(GT,SE,SR,SX,TRR,TRS,XL)..2D198108-198304

58253ABRACKET, PARKING CABLE CLAMP

main58253-12030iTE71197903-198304

RH

main58254-12030iTE71197903-198304

LH

58255CLAMP, PARKING BRAKE CABLE, NO.1

main58207-12040iAE70,CE70,KE70,TE7#197903-198304

RH

main58208-12040iAE70,CE70,KE70,TE7#197903-198304

LH

58260COVER ASSY, TRANSMISSION, FRONT

main58281-12010iAE70,CE70,KE70,TE7#..MTM197903-198304

main58281-12020iAE70,CE70,KE70,TE70..ATM197903-198304

58275ARETAINER, REAR SEATBACK TO CENTER FLOOR

main58275-12010iAE70,KE70,TE7#..HT,SED197903-198304

58286BOOT, SHIFT & SELECT LEVER, NO.1

main58280-12070iAE70,KE70,TE7#..GT,SE,SR,ST,TRR,XL197903-198304

main58280-12080-01iAE70,KE70,TE71..MTM..2D197903-198304

BLACK,BLACK,TRIM2#

sub58280-12080

main58280-12080-04iAE70,KE70..MTM..(ST,XL)197903-198304

BLUE,BLUE,TRIM8#

sub58280-12080

main58280-12080-05iAE70,KE70..MTM..XL..4D197903-197908

BEIGE,BEIGE,TRIM4#

sub58280-12080

main58280-12080-06iAE70,KE70,TE71..MTM..2D197903-198304

DARK BROWN,BROWN,TRIM4#

sub58280-12080

main58280-12090iAE70,CE70,KE70..MTM..(DX,SPD)..4D197903-198304

58288SEAL, SHIFT LEVER BOOT

main58288-12050iAE70,TE7#..MTM197903-198304

main58288-12060iKE70..MTM197903-198304

main58288-12070iCE70..5F198202-198304

58298COVER, CENTER FLOOR HOLE, NO.2

main58298-12010iAE70,CE70,KE70,TE71198108-198304

58301APANEL SUB-ASSY, REAR FLOOR

main58301-12060iAE70,KE70,TE7#..4D197903-198102

sub58311-12150

sub58236-14010

sub58303-12030

sub58305-10011

sub58313-12080

sub58345-14010

sub58364-12010

sub61645-12050

sub90189-04002

sub93560-54014

main58301-12080iAE70,KE70,TE7#..HT197903-198101

sub58311-12150

sub58236-14010

sub58303-12040

sub58305-10011

sub58313-12130

sub58345-14010

sub58364-12010

sub61645-12050

sub90189-04002

sub93560-54014

main58301-12100iAE70,KE70,TE7#..CP,LB197903-198102

sub58311-12150

sub58236-14010

sub58305-10011

sub58313-12090

sub58314-12090

sub58345-14010

sub58364-12010

sub90189-04002

sub93560-54012

sub93560-54014

main58301-12110iAE70,KE70,TE7#..4D198102-198208

sub58311-12150

sub58236-14010

sub58303-12030

sub58305-10011

sub58313-12080

sub58345-14010

sub58364-12010

sub61645-12050

sub90189-04002

sub93560-54014

main58301-12140iCE70198202-198208

sub58311-12150

sub58236-14010

sub58303-12010

sub58305-10011

sub58313-12060

sub58345-14010

sub58364-12010

sub61645-12050

sub90189-04002

sub93560-54012

sub93560-54014

main58301-12150iAE70,KE70,TE7#..CP,LB198102-198208

sub58311-12150

sub58236-14010

sub58305-10011

sub58313-12090

sub58314-12090

sub58345-14010

sub58364-12010

sub90189-04002

sub93560-54012

sub93560-54014

main58301-12160iAE70,KE70,TE7#..HT198101-198208

sub58311-12150

sub58236-14010

sub58303-12040

sub58305-10011

sub58313-12130

sub58345-14010

sub58364-12010

sub61645-12050

sub90189-04002

sub93560-54014

58305BRACKET SUB-ASSY, SPARE WHEEL CLAMP

main58305-10011iAE70,CE70,KE70,TE7#197903-198304

58307PANEL SUB-ASSY, BODY LOWER BACK

main58307-12380iAE70,KE70,TE7#..HT197903-198304

main58307-12420iAE70,KE70,TE7#..4D197903-198304

main58307-12480iAE70,KE70,TE7#..CP197903-198304

main58307-12500iAE70,KE70,TE7#..LB197903-198304

main58307-12700iCE70198202-198301

58311PAN, REAR FLOOR

main58311-12150iAE70,CE70,KE70,TE71198208-198304

58313FEXTENSION, REAR FLOOR PAN TO QUARTER PANEL, RH

main58313-12060iAE70,KE70,TE7#..4D197903-197911

sub58313-12080

main58313-12070iAE70,KE70,TE7#..HT197903-198101

main58313-12080iAE70,CE70,KE70,TE7#..4D197911-198304

main58313-12090iAE70,KE70,TE7#..CP,LB197903-198304

main58313-12130iAE70,KE70,TE7#..HT198101-198304

58314FEXTENSION, REAR FLOOR PAN TO QUARTER PANEL, LH

main58303-12010iAE70,KE70,TE7#..4D197903-197911

sub58303-12030

main58303-12020iAE70,KE70,TE7#..HT197903-198101

main58303-12030iAE70,CE70,KE70,TE7#..4D197911-198304

main58303-12040iAE70,KE70,TE7#..HT198101-198304

main58314-12090iAE70,KE70,TE7#..CP,LB197903-198304

58346BRACKET, REAR FLOOR HEAT INSULATOR

main58345-14010iAE70,CE70,KE70,TE71198208-198304

sub58345-14020

58364BBRACKET, FUEL TANK SUPPORT

main58364-12010iAE70,CE70,KE70,TE71198208-198304

58376CBRACKET, LOWER BACK PANEL WEIGHT

main58376-12020iCE70198202-198304

58379AWEIGHT, LOWER BACK PANEL DAMPER

main58379-12010iCE70198202-198304

58381DEFLECTOR, REAR BUMPER STONE

main58308-12040iAE70,KE70..4D197903-198108

main58308-12050iAE70,CE70,KE70,TE7#..(DX,GT,SE,SX,XL)..4D197903-198304

W/URETHANE BUMPER

main58308-12060iAE70,CE70,KE70..4D198108-198304

main58308-12070iAE70,KE70..2D197903-198108

main58308-12080iAE70,KE70,TE7#..2D197903-198304

W/URETHANE BUMPER

main58308-12100iAE70,KE70..2D198108-198304

58708CARRIER SUB-ASSY, JACK

main58791-12050iAE70,CE70,KE70,TE7#..HT,SED197903-198304

6101

64602ACOVER, LUGGAGE COMPARTMENT DOOR STRIKER

main64749-12010iAE70,CE70,KE70,TE7#..HT,SED197903-198304

9011906182

main90119-06182

9095001005

main90950-01005

9095001027

main90950-01027

9095001038

main90950-01038

9095001060

main90950-01060

9095001086

main90950-01086

9095001132

main90950-01132

9095001133

main90950-01133

9095001241

main90950-01241

9165140614

main91651-40614

9165140616

main91651-40616

9165160616

main91651-60616

49 parts on this diagram · 1 diagram in section
