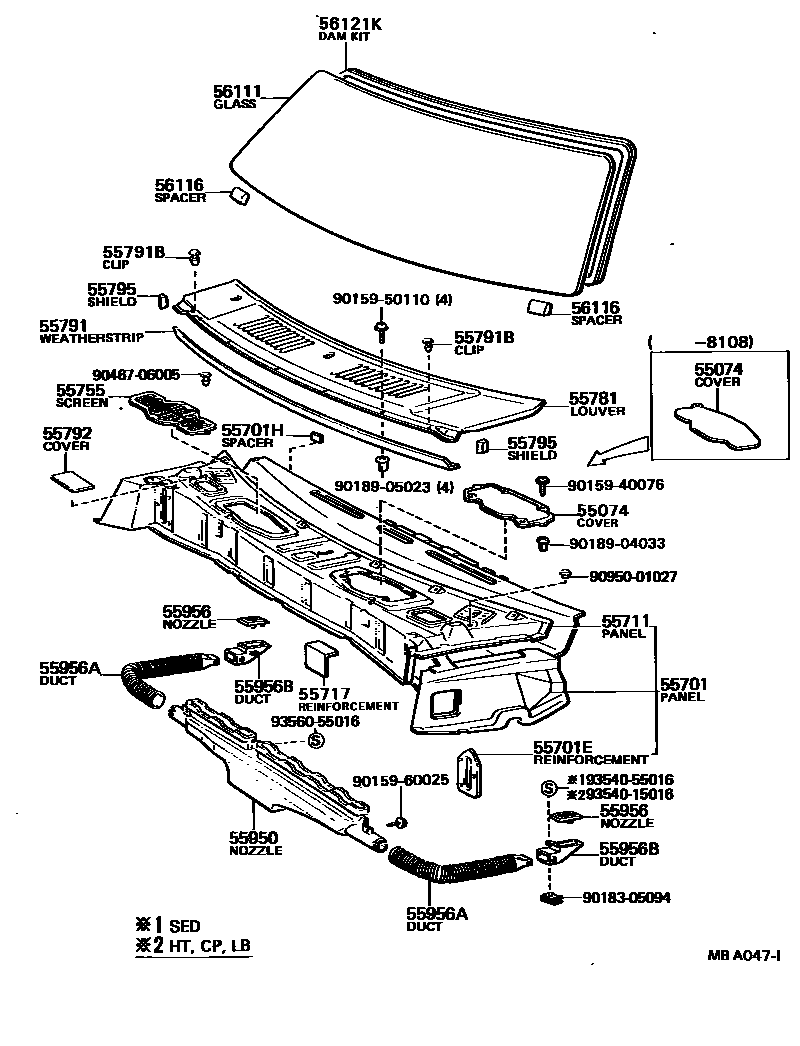

COWL PANEL & WINDSHIELD GLASS

55074COVER SUB-ASSY, COWL INNER HEATER AIR

main55074-12010iAE70,KE70,TE7#198011-198108

main55074-12011iAE70,CE70,KE70,TE71198108-198304

main55791-12050iAE70,KE70,TE7#197903-198011

sub55074-12010

55701PANEL SUB-ASSY, COWL

main55700-12090iAE70,KE70,TE7#..4D197903-198108

sub55700-12091

sub55074-12011

sub90159-40009

sub90189-04033

main55700-12091iAE70,CE70,KE70,TE71..4D198108-198205

sub55700-12092

sub90159-50110

sub90189-05023

main55700-12092iAE70,CE70,KE70,TE71..4D198205-198304

main55700-12110iAE70,KE70,TE7#..2D197903-198008

sub55700-12111

sub85230-12160

main55700-12111iAE70,KE70,TE7#..2D198008-198108

sub55700-12112

sub55074-12011

sub90159-40009

sub90189-04033

main55700-12112iAE70,KE70,TE71..2D198108-198205

sub55700-12113

sub90159-50110

sub90189-05023

main55700-12113iAE70,KE70,TE71..2D198205-198304

55701EREINFORCEMENT, HOOD HINGE MOUNTING

main55725-12070iAE70,CE70,KE70,TE7#197903-198304

RH

main55726-12070iAE70,CE70,KE70,TE7#197903-198304

LH

55701HSPACER, INSTRUMENT PANEL SAEFTY PAD

main55457-12010iAE70,KE70,TE7#197903-198106

main55457-12020iAE70,CE70,KE70,TE7#198106-198304

55711PANEL, COWL TOP, OUTER

main55711-12090iAE70,KE70,TE7#..4D197903-198108

sub55711-12091

sub55074-12011

sub90159-40009

sub90189-04033

main55711-12091iAE70,CE70,KE70,TE71..4D198108-198205

sub55711-12092

sub90159-50110

sub90189-05023

main55711-12092iAE70,CE70,KE70,TE71..4D198205-198304

main55711-12110iAE70,KE70,TE7#..2D197903-198008

sub55711-12111

sub85230-12160

main55711-12111iAE70,KE70,TE7#..2D198008-198108

sub55711-12112

sub55074-12011

sub90159-40009

sub90189-04033

main55711-12112iAE70,KE70,TE71..2D198108-198205

sub55711-12113

sub90159-50110

sub90189-05023

main55711-12113iAE70,KE70,TE71..2D198205-198304

55717REINFORCEMENT, COWL TOP OUTSIDE

main55717-12050iAE70,CE70,KE70,TE7#197903-198304

55755SCREEN, HEATER AIR DUCT

main55756-12040iAE70,CE70,KE70,TE7#197903-198304

55781LOUVER, COWL VENTILATOR

main55781-12040iAE70,KE70,TE7#..4D197903-198108

main55781-12050iAE70,KE70,TE7#..2D197903-198108

main55781-12051iAE70,KE70,TE71..2D198108-198304

main55781-12080iAE70,CE70,KE70,TE71..4D198108-198304

55791WEATHERSTRIP, HOOD TO COWL TOP

main53383-12030iAE70,KE70,TE7#197903-198108

main53383-12040iAE70,CE70,KE70,TE71198108-198304

55791BCLIP(FOR HOOD TO COWL TOP WEATHERSTRIP)

main90467-06005iAE70,CE70,KE70,TE7#197903-198304

55792COVER, WIPER MOTOR SERVICE HOLE

main55793-12030iAE70,CE70,KE70,TE7#197903-198304

55795SHIELD, COWL TOP TO LOUVER, SIDE

main55751-12030iAE70,KE70,TE7#198003-198108

main55751-12040iAE70,CE70,KE70,TE71198108-198304

main55751-14010iAE70,KE70,TE7#197903-198003

55950NOZZLE ASSY, DEFROSTER

main55950-12020iAE70,KE70,TE7#..2D197903-198304

main55950-12030iAE70,CE70,KE70,TE7#..4D197903-198304

55956NOZZLE, SIDE DEFROSTER

main55961-12080-01iAE70,CE70,KE70,TE7#..4D197903-198304

RH,BLACK,BLACK,TRIM2#

sub55961-12080

main55961-12080-04iAE70,CE70,KE70,TE7#..4D197903-198304

RH,BLUE,BLUE,TRIM8#

sub55961-12080

main55961-12080-05iAE70,KE70,TE71..4D197903-197908

RH,BEIGE,BEIGE,TRIM4#

sub55961-12080

main55961-12080-06iAE70,CE70,KE70,TE71..4D198108-198304

RH,DARK BROWN,BROWN,TRIM4#

sub55961-12080

main55961-12080-15iAE70,KE70,TE7#..4D197908-198108

RH,BEIGE,BEIGE,TRIM4#

sub55961-12080

main55961-12090-01iAE70,KE70,TE7#..2D197903-198304

RH,BLACK,BLACK,TRIM2#

main55961-12090-04iAE70,KE70,TE7#..2D197903-198304

RH,BLUE,BLUE,TRIM8#

main55961-12090-06iAE70,KE70,TE7#..2D197903-198304

RH,DARK BROWN,BROWN,TRIM4#

main55962-12070-01iAE70,CE70,KE70,TE7#..4D197903-198304

LH,BLACK,BLACK,TRIM2#

sub55962-12070

main55962-12070-04iAE70,CE70,KE70,TE7#..4D197903-198304

LH,BLUE,BLUE,TRIM8#

sub55962-12070

main55962-12070-05iAE70,KE70,TE71..4D197903-197908

LH,BEIGE,BEIGE,TRIM4#

sub55962-12070

main55962-12070-06iAE70,CE70,KE70,TE71..4D198108-198304

LH,DARK BROWN,BROWN,TRIM4#

sub55962-12070

main55962-12070-15iAE70,KE70,TE7#..4D197908-198108

LH,BEIGE,BEIGE,TRIM4#

sub55962-12070

main55962-12080-01iAE70,KE70,TE7#..2D197903-198304

LH,BLACK,BLACK,TRIM2#

main55962-12080-04iAE70,KE70,TE7#..2D197903-198304

LH,BLUE,BLUE,TRIM8#

main55962-12080-06iAE70,KE70,TE7#..2D197903-198304

LH,DARK BROWN,BROWN,TRIM4#

55956ADUCT, SIDE DEFROSTER NOZZLE, NO.1

main55973-12030iAE70,CE70,KE70,TE7#..4D197903-198304

main55973-12040iAE70,KE70,TE7#..2D197903-198304

55956BDUCT, SIDE DEFROSTER NOZZLE, NO.2

main55971-12050iAE70,CE70,KE70,TE7#..4D197903-198304

RH

main55971-12060iAE70,KE70,TE7#..2D197903-198304

RH

main55972-12030iAE70,CE70,KE70,TE7#..4D197903-198304

LH

main55972-12040iAE70,KE70,TE7#..2D197903-198304

LH

56111GLASS, WINDSHIELD

main56111-12320iAE70,CE70,KE70,TE7#..4D197903-198304

*TZT,T=5.0

sub56111-12340

main56111-12340iTE71..4D197903-198304

*TL,T=5.3

main56111-12360iAE70,KE70,TE7#..2D197903-198304

*TT,T=5.0

sub56111-12450

main56111-12370iTE71..2D197903-198304

*TL,T=5.3

sub56111-12450

main56111-12470iAE70..HT..(3FC,5F)..SE198202-198202

BRONZE,*TT,T=5.0

sub56111-12450

main56111-12630iAE70..(3FC,5F)..SE..4D198210-198304

BRONZE,*TT,T=5.0

sub56111-12340

56116SPACER, WINDSHIELD GLASS

main56116-24010iAE70,CE70,KE70,TE7#197903-198304

56121KDAM KIT, WINDSHIELD GLASS

main04562-30020iAE70,CE70,KE70,TE7#197903-198304

sub04562-30030

9015940076

main90159-40076

9015950110

main90159-50110

9015960025

main90159-60025

9018305094

main90183-05094

9018904033

main90189-04033

9018905023

main90189-05023

9046706005

main90467-06005

9095001027

main90950-01027

9354015016

main93540-15016

9354055016

main93540-55016

9356055016

main93560-55016

30 parts on this diagram · 1 diagram in section
