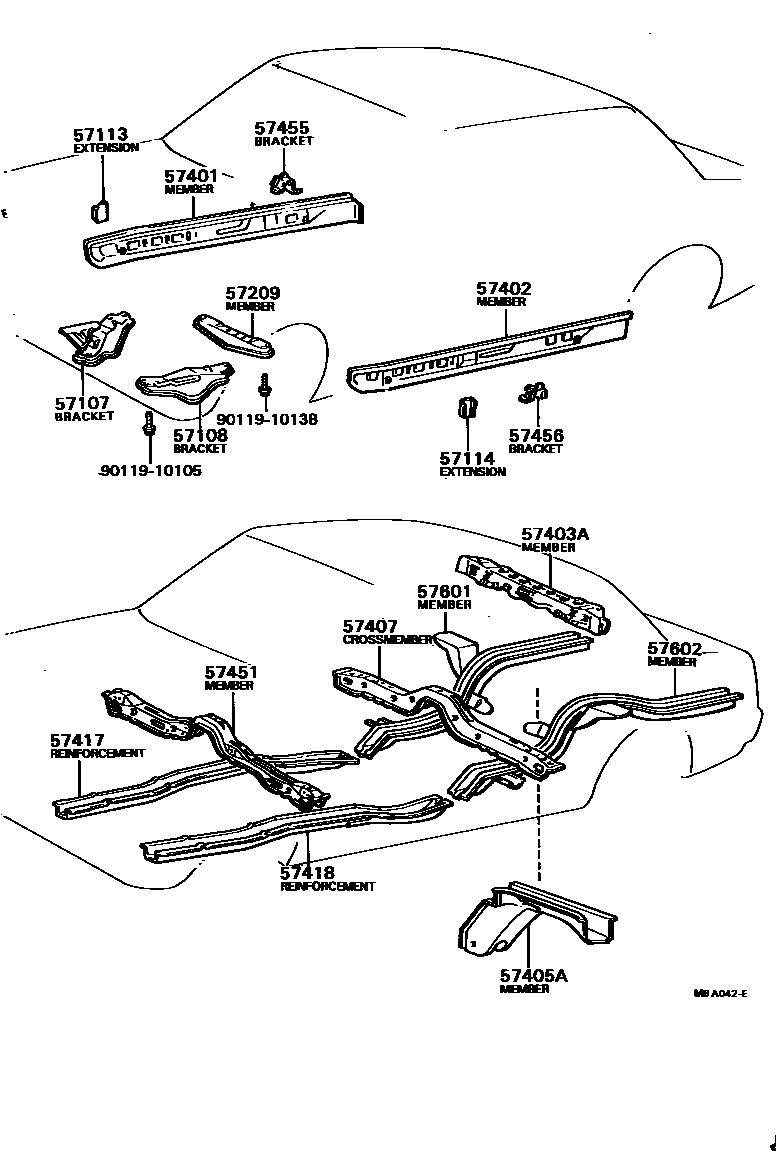

FLOOR SIDE MEMBER

57107BRACKET SUB-ASSY, STRUT BAR, RH

main57107-12020iAE70,KE70,TE71¥2,730197903-198304

sub57107-12030¥4,050

main57107-12030iAE70,KE70,TE7#..GT,SR,SX,TRR,TRS¥4,050197908-198304

57108BRACKET SUB-ASSY, STRUT BAR, LH

main57108-12020iAE70,KE70,TE71¥2,730197903-198304

sub57108-12030¥5,000

main57108-12030iAE70,KE70,TE7#..GT,SR,SX,TRR,TRS¥5,000197908-198304

57113EXTENSION, FRONT SIDE MEMBER, RH

main57113-12010iAE70,KE70,TE7#197903-197911

sub57113-12020¥270

main57113-12020iAE70,KE70,TE7#¥270197911-198108

sub57113-12040¥300

main57113-12040iAE70,CE70,KE70,TE71¥300198108-198304

57114EXTENSION, FRONT SIDE MEMBER, LH

main57114-12010iAE70,KE70,TE7#197903-197911

main57114-12020iAE70,KE70,TE7#¥270197911-198108

sub57114-12040¥300

main57114-12040iAE70,CE70,KE70,TE71¥300198108-198304

57209MEMBER SUB-ASSY, ENGINE REAR SUPPORT

main57209-12080iKE70..MTM¥2,730197903-198008

sub57209-12160¥2,730

main57209-12090iKE70..2FC¥2,730197903-198008

sub57209-12170

main57209-12100iTE7#..MTM..(GT,SE,ST,TRR,XL)¥2,730197903-198008

sub57209-12140¥2,710

main57209-12110iTE70..3FC¥2,730197908-198008

sub57209-12150¥2,730

main57209-12120iAE70..MTM197903-198304

main57209-12130iAE70..3FC¥2,730197903-198107

sub57209-12131

main57209-12131iAE70..3FC198107-198304

main57209-12140iTE71¥2,710198008-198304

main57209-12150iTE70..3FC¥2,730198008-198107

sub57209-12151

main57209-12151iTE70..3FC198107-198108

main57209-12160iKE70..MTM¥2,730198008-198304

main57209-12170iKE70..2FC198008-198108

main57209-12200iKE70..3FC¥2,730198108-198304

main57209-12230iCE70..5F198202-198304

main57209-12240iCE70..4FC¥4,280198202-198304

57401MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH

main57401-12090iAE70,KE70,TE7#..4D¥9,200197910-198010

sub57401-12120¥9,600

main57401-12110iAE70,KE70,TE7#..2D¥9,200197910-198010

sub57401-12140

main57401-12120iAE70,CE70,KE70,TE7#..4D¥9,600198010-198304

main57401-12140iAE70,KE70,TE7#..2D198010-198304

main57401-12901iAE70,KE70,TE7#..4D¥9,200197903-197910

sub57401-12090¥9,200

main57401-12902iAE70,KE70,TE7#..2D¥9,200197903-197910

sub57401-12110¥9,200

57402MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH

main57402-12090iAE70,KE70,TE7#..4D¥9,200197910-198010

sub57402-12120¥9,600

main57402-12110iAE70,KE70,TE7#..2D¥9,200197910-198010

sub57402-12140

main57402-12120iAE70,CE70,KE70,TE7#..4D¥9,600198010-198304

main57402-12140iAE70,KE70,TE7#..2D198010-198304

main57402-12901iAE70,KE70,TE7#..4D¥9,200197903-197910

sub57402-12090¥9,200

main57402-12902iAE70,KE70,TE7#..2D¥9,200197903-197910

sub57402-12110¥9,200

57403AMEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.3

main57403-12020iAE70,KE70,TE71..HT..(GT,SE)198108-198304

57405AMEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.2

main57405-12900iAE70,CE70,KE70,TE7#¥14,200197903-198304

57407CROSSMEMBER SUB-ASSY, CENTER FLOOR, NO.1

main57407-12010iAE70,CE70,KE70,TE7#¥5,600197903-198304

57417REINFORCEMENT, FRONT FLOOR UNDER, RH

main57505-12020iAE70,CE70,KE70,TE7#¥3,550197903-198304

57418REINFORCEMENT, FRONT FLOOR UNDER, LH

main57506-12040iAE70,CE70,KE70,TE7#¥3,650197903-198304

57451MEMBER, FRONT FLOOR CROSS

main57408-12020iAE70,CE70,KE70,TE71198108-198304

main57451-12050iAE70,KE70,TE7#197903-198108

57455BRACKET, FRONT SEAT MOUNTING, OUTSIDE RH

main57455-12020iAE70,CE70,KE70,TE7#¥400197903-198304

57456BRACKET, FRONT SEAT MOUNTING, OUTSIDE LH

main57456-12020iAE70,CE70,KE70,TE7#¥400197903-198304

57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH

main57601-12900iAE70,KE70,TE7#¥22,700197903-198108

sub57601-12903¥22,700

main57601-12903iAE70,KE70,TE7#..4D¥22,700197909-198108

sub57601-12907¥22,700

main57601-12907iAE70,CE70,KE70,TE71¥22,700198108-198304

sub57601-12909

57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH

main57602-12900iAE70,KE70,TE7#¥22,700197903-198108

sub57602-12903¥22,700

main57602-12903iAE70,KE70,TE7#..4D¥22,700197909-198108

sub57602-12907¥22,700

main57602-12907iAE70,CE70,KE70,TE71¥22,700198108-198304

sub57602-12909

9011910105

main90119-10105¥250

9011910138

main90119-10138¥260

19 parts on this diagram · 1 diagram in section
