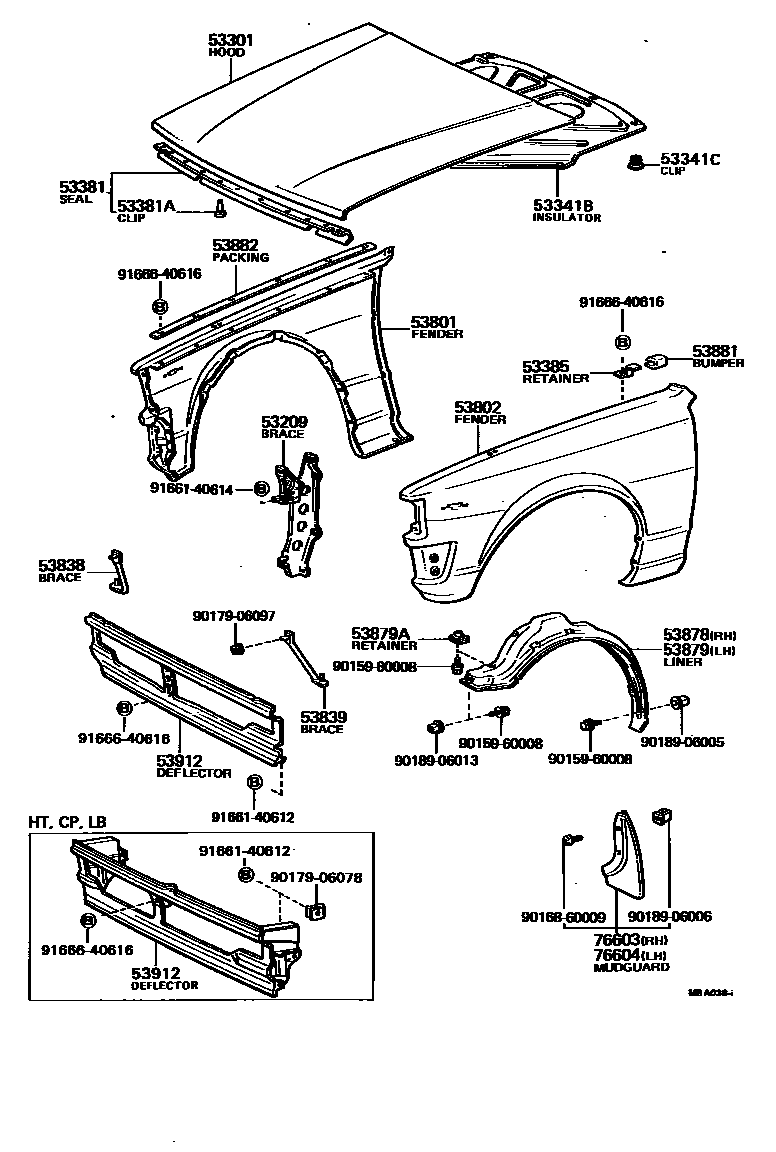

HOOD & FRONT FENDER

0001 1 0002 1

53209BRACE SUB-ASSY, HOOD LOCK

main53208-12080iAE70,TE7#..4D197903-198108

main53208-12090iKE70..4D197903-198108

main53208-12100iAE70,TE7#..2D197903-198108

main53208-12101iKE70..3FC..2D198108-198304

main53208-12110iKE70..2D197903-198108

main53208-12111iKE70..MTM..2D198108-198304

main53208-12200iKE70..3FC..4D198108-198304

sub53208-12270

main53208-12210iKE70..MTM..4D198108-198304

sub53208-12280

53301HOOD SUB-ASSY

main53301-12220iAE70,KE70,TE7#..4D197903-198108

main53301-12230iAE70,KE70,TE7#..2D197903-198108

main53301-12231iAE70,KE70,TE71..2D198108-198304

main53301-12330iAE70,CE70,KE70,TE71..4D198108-198304

sub53301-12450

53341BINSULATOR, HOOD

main53341-12010iTE70197908-198108

main53341-12020iCE70198202-198304

53341CCLIP(FOR HOOD INSULATOR)

main90467-12018iCE70198202-198304

main90467-22002iTE70197908-198108

53381SEAL, HOOD TO RADIATOR SUPPORT

main53381-12100iAE70,KE70,TE71197903-197904

main53381-12110iAE70,CE70,KE70,TE7#197904-198304

53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)

main90467-08008iAE70,KE70,TE7#197903-197912

main90467-08011iAE70,CE70,KE70,TE7#197912-198304

53385RETAINER, HOOD, BUMPER

main53385-14010iAE70,CE70,KE70,TE7#197903-198304

LH

main53386-14010iAE70,CE70,KE70,TE7#197903-198304

RH

53801FENDER SUB-ASSY, FRONT RH

main53801-12880iAE70,KE70,TE7#..4D197903-198108

main53801-1A010iAE70,KE70,TE7#..2D197903-198304

main53801-1A530iAE70,CE70,KE70,TE71..4D198108-198304

53802FENDER SUB-ASSY, FRONT LH

main53802-12890iAE70,KE70,TE7#..4D197903-198108

main53802-1A020iAE70,KE70,TE7#..2D197903-198304

main53802-1A580iAE70,CE70,KE70,TE71..4D198108-198304

53838BRACE, FRONT FENDER, RH

main53851-12010iAE70,KE70,TE7#..4D197903-198108

main53851-12030iAE70,KE70,TE7#..2D197903-198108

main53851-12040iAE70,CE70,KE70,TE71198108-198304

53839BRACE, FRONT FENDER, LH

main53852-12010iAE70,KE70,TE7#..4D197903-198108

main53852-12030iAE70,KE70,TE7#..2D197903-198108

main53852-12040iAE70,CE70,KE70,TE71198108-198304

53878LINER, FRONT FENDER, RH

main53875-12040iAE70,CE70,KE70,TE7#..4D197903-198304

main53875-12050iAE70,KE70,TE7#..2D197903-198304

53879LINER, FRONT FENDER, LH

main53876-12040iAE70,CE70,KE70,TE7#..4D197903-198304

main53876-12050iAE70,KE70,TE7#..2D197903-198304

53879ARETAINER, FRONT FENDER LINER

main53879-22010iAE70,CE70,KE70,TE7#197903-198304

53881BUMPER, FENDER TO HOOD

main53384-14010iAE70,KE70,TE7#197903-198104

main53384-16010iAE70,CE70,KE70,TE7#198104-198304

53882PACKING, FRONT FENDER MAIN

main53882-12040iAE70,CE70,KE70,TE7#197903-198304

53912DEFLECTOR, FRONT BUMPER STONE

main53901-12040iAE70,KE70..2D197903-198108

main53901-12041iAE70,KE70,TE71..2D198108-198304

main53901-12050iAE70,KE70,TE7#..2D197903-198108

W/URETHANE BUMPER

main53901-12080iAE70,CE70,KE70,TE71..4D198108-198304

sub53901-12110

main53911-12140iAE70,KE70..4D197903-198108

main53911-12150iAE70,KE70,TE7#..(DX,GT,SE,XL)..4D197903-198108

W/URETHANE BUMPER

76603MUDGUARD SUB-ASSY, FRONT FENDER, RH

main76621-19045iAE70,CE70,KE70,TE7#..(GT,SE,SX,XL)..4D197903-198304

main76621-19055iAE70,KE70,TE7#..(GT,SE,SR,ST,SX,TRR,TRS,XL)..2D197903-198304

76604MUDGUARD SUB-ASSY, FRONT FENDER, LH

main76622-19045iAE70,CE70,KE70,TE7#..(GT,SE,SX,XL)..4D197903-198304

main76622-19055iAE70,KE70,TE7#..(GT,SE,SR,ST,SX,TRR,TRS,XL)..2D197903-198304

9015960008

main90159-60008

9016860009

main90168-60009

9017906078

main90179-06078

9017906097

main90179-06097

9018906005

main90189-06005

9018906006

main90189-06006

9018906013

main90189-06013

9166140612

main91661-40612

9166140614

main91661-40614

9166640616

main91666-40616

29 parts on this diagram · 2 diagrams in section
