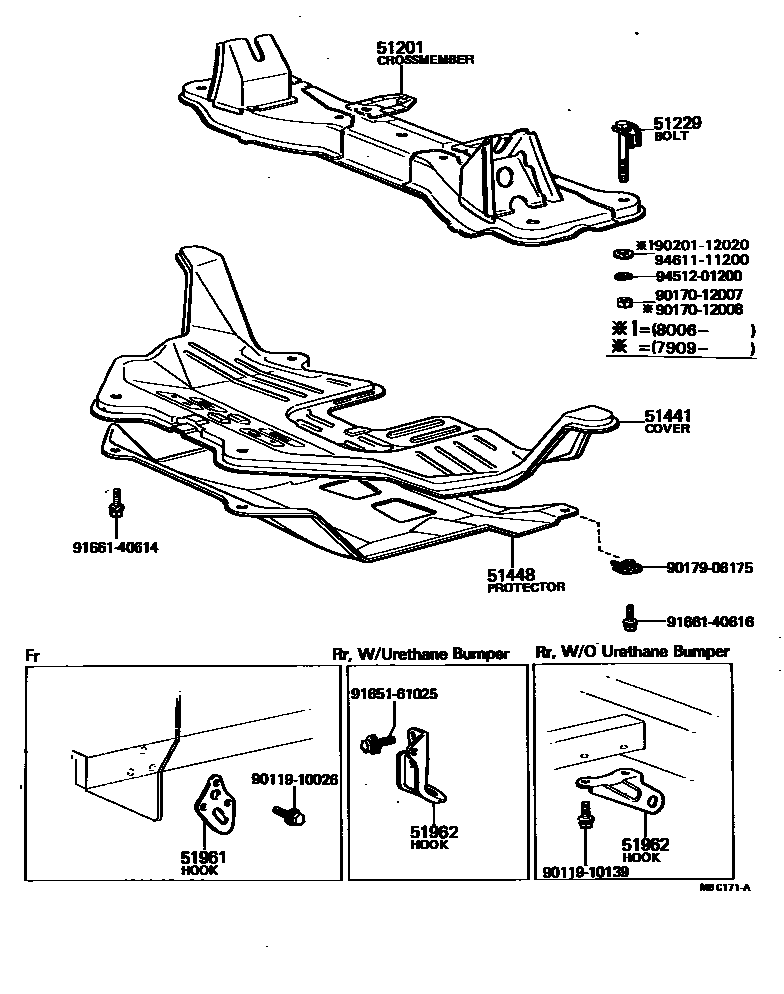

SUSPENSION CROSSMEMBER & UNDER COVER

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-12070iTE7#197903-198008

sub51201-12130

main51201-12080iKE70197903-198108

sub51201-12H03

main51201-12081iKE70198108-198304

sub51201-12141

main51201-12090iAE70197903-198108

main51201-12130iTE7#198008-198304

sub51201-12120

main51201-12160iAE70198108-198304

main51201-12170iAE70198108-198304

W/POWER STEERING

main51201-12180iCE70198202-198304

51229BOLT, SUSPENSION MEMBER SET

main51296-12010iAE70,KE70,TE71197903-197908

sub51296-12011

sub90170-12007

main51296-12011iAE70,CE70,KE70,TE7#197908-198304

51441COVER, ENGINE UNDER, NO.1

main51405-12010iKE70197903-198008

sub51405-12040

main51405-12020iTE7#197903-198008

sub51405-12050

main51405-12030iAE70197903-198304

sub51405-12050

main51405-12040iKE70198008-198304

sub51405-12050

main51405-12050iTE7#198008-198304

main51441-12100iCE70198202-198304

51448PROTECTOR, OIL PAN

main51447-12040iAE70,KE70,TE7#197903-198304

main51447-12050iCE70198202-198304

sub51447-12080

51961HOOK, NO.1

main51963-12050iAE70,CE70,KE70,TE7#197903-198304

51962HOOK, NO.2

main51967-12010iAE70,KE70197903-198108

W/O URETHANE BUMPER

main51967-12020iAE70,CE70,KE70,TE7#..DX,GT,SE,SR,SX,TRR,TRS,XL197903-198304

RH,W/URETHANE BUMPER

main51968-12010iAE70,CE70,KE70,TE7#..DX,GT,SE,SR,SX,TRR,TRS,XL197903-198304

LH,W/URETHANE BUMPER

9011910026

main90119-10026

9011910139

main90119-10139

9017012007

main90170-12007

9017012008

main90170-12008

9017906175

main90179-06175

9020112020

main90201-12020

9165161025

main91651-61025

9166140614

main91661-40614

9166140616

main91661-40616

9451201200

main94512-01200

9461111200

main94611-11200

17 parts on this diagram · 1 diagram in section
