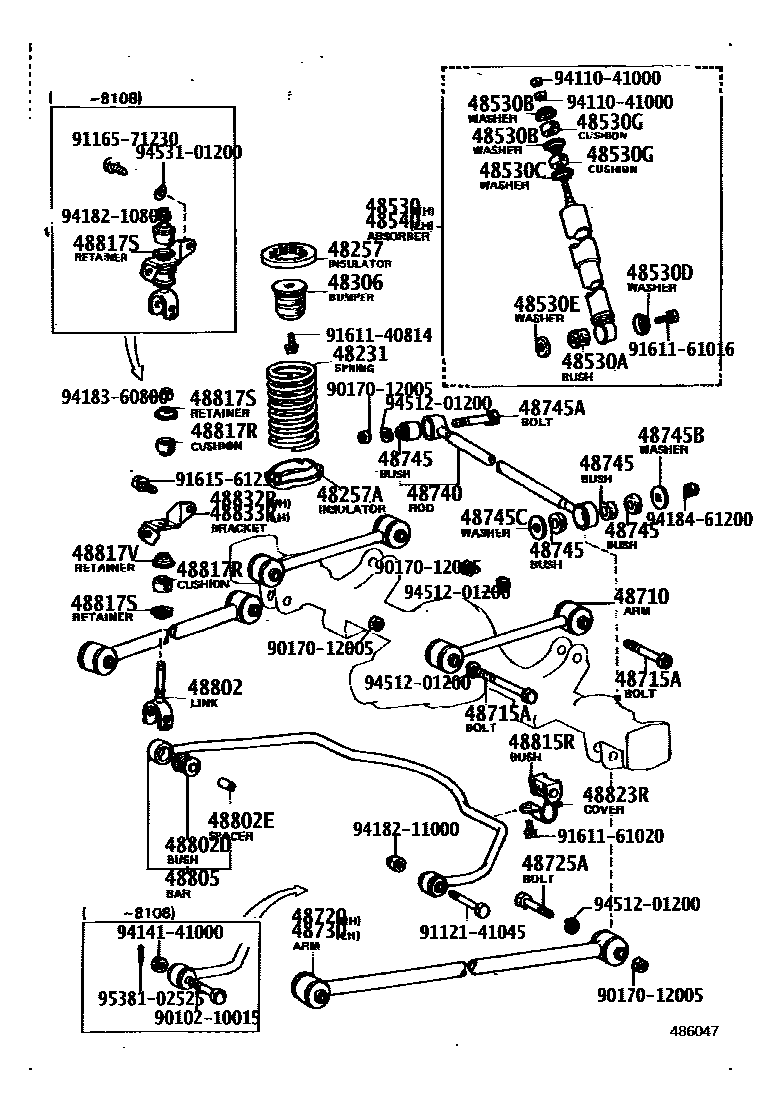

REAR SPRING & SHOCK ABSORBER

48231SPRING, COIL, REAR

main48231-12010iKE70..CP,LB197903-198304

main48231-12050iTE71..(CP,LB,SED)..(GT,TRR)197903-198304

main48231-12130iKE70..HT,SED197903-198304

sub48231-12230

main48231-12150iAE70,TE70..(CP,LB)..(SE,ST,XL)197903-198304

main48231-12170iTE71..HT197903-198304

main48231-12180iTE71..TRS198108-198304

48257INSULATOR, REAR COIL SPRING

main48257-12020iAE70,CE70,KE70,TE7#197903-198304

48257AINSULATOR, REAR COIL SPRING, LOWER

main48258-12010iAE70,CE70,KE70,TE7#197903-198304

48306BUMPER SUB-ASSY, REAR SPRING

main48306-14030iAE70,CE70,KE70,TE7#197903-198304

48530ABSORBER ASSY, SHOCK, REAR RH

main48531-19586iAE70,KE70,TE70..DX,SE,SPD,ST,XL197903-198304

sub48531-19666

main48531-19595iAE70,TE70..SR197903-198108

sub48531-12220

main48531-19596iAE70,KE70..SR,SX198108-198304

sub48531-19666

main48531-19605iTE71197903-198108

main48531-19606iCE70,TE71..GT,SE,SPD,TRR,XL198108-198304

sub48531-19666

main48531-19855iTE71..TRS198108-198304

sub48531-19666

48530ABUSH(FOR REAR SHOCK ABSORBER)

main90385-16001iAE70,CE70,KE70,TE7#197903-198304

48530BWASHER, REAR SHOCK ABSORBER CUSHION, NO.1

main90948-02002iAE70,CE70,KE70,TE7#197903-198304

48530CWASHER, REAR SHOCK ABSORBER CUSHION, NO.2

main90948-02007iAE70,CE70,KE70,TE7#197903-198304

48530DWASHER, REAR SHOCK ABSORBER CUSHION, NO.3

main90948-02047iAE70,CE70,KE70,TE71198108-198304

RH

main90948-03012iAE70,KE70,TE7#197903-198108

main90948-03012iAE70,CE70,KE70,TE71198108-198304

LH

48530EWASHER, REAR SHOCK ABSORBER CUSHION, NO.4

main90948-03004iAE70,CE70,KE70,TE7#197903-198304

48530GCUSHION, REAR SHOCK ABSORBER, NO.1

main90948-01003iAE70,KE70,TE7#197903-198010

main90948-01003iAE70,CE70,KE70,TE7#198105-198304

UPR

main90948-01018iAE70,KE70,TE7#198010-198105

main90948-01018iAE70,CE70,KE70,TE7#198105-198304

LWR

48540ABSORBER ASSY, SHOCK, REAR LH

main48531-19586iAE70,KE70,TE70..DX,SE,SPD,ST,XL197903-198304

sub48531-19666

main48531-19595iAE70,TE70..SR197903-198108

sub48531-12220

main48531-19596iAE70,KE70..SR,SX198108-198304

sub48531-19666

main48531-19605iTE71197903-198108

main48531-19606iCE70,TE71..GT,SE,SPD,TRR,XL198108-198304

sub48531-19666

main48531-19855iTE71..TRS198108-198304

sub48531-19666

48710ARM ASSY, UPPER CONTROL

main48710-12010iAE70,KE70..LB..(DX,SE,XL)197903-198304

main48710-12020iTE71;AE70,KE70,TE70..CP,LB197903-198304

sub48710-12110

main48710-12031iAE70,KE70..(HT,SED)..(DX,SE,SPD,XL)198108-198304

48715ABOLT, HEXAGON(FOR UPPER CONTROL ARM)

main90101-12044iAE70,CE70,KE70,TE7#197903-198304

L=77

main90101-12045iAE70,CE70,KE70,TE7#197903-198304

L=149

48720ARM ASSY, LOWER CONTROL, RH

main48720-12020iAE70,CE70,KE70,TE7#197903-198304

48725ABOLT(FOR LOWER CONTROL ARM)

main90101-12044iAE70,CE70,KE70,TE7#197903-198304

48730ARM ASSY, LOWER CONTROL, LH

main48720-12020iAE70,CE70,KE70,TE7#197903-198304

48740ROD ASSY, REAR LATERAL CONTROL

main48740-12010iAE70,KE70,TE7#197903-198108

main48740-12021iAE70,CE70,KE70,TE71198108-198304

48745BUSH, LATERAL CONTROL ROD

main48706-14010iAE70,CE70,KE70,TE7#197903-198304

ROD X BODY

main90385-20001iAE70,CE70,KE70,TE7#197903-198304

L=15,ROD X HOUSING

main90386-20001iAE70,CE70,KE70,TE7#197903-198304

L=12,ROD X HOUSING

48745ABOLT, HEXAGON(FOR LATERAL CONTROL ROD)

main90101-12032iAE70,CE70,KE70,TE7#197903-198304

48745BWASHER, LATERAL CONTROL ROD CUSHION

main90201-12010iAE70,CE70,KE70,TE7#197903-198304

48745CWASHER, LATERAL CONTROL ROD CUSHION

main94612-12000iAE70,CE70,KE70,TE7#197903-198304

48802LINK SUB-ASSY, STABILIZER

main48802-14020iAE70,TE7#..GT,SR,TRR197903-198108

main48802-14040iAE70,KE70,TE71..GT,SR,SX,TRR,TRS198108-198304

48802DBUSH, STABILIZER LINK

main90385-11021iCE70;AE70,KE70,TE7#..GT,SR,SX,TRR,TRS197903-198304

48802ESPACER(FOR REAR STABILIZER BAR)

main90560-10275iCE70;AE70,KE70,TE7#..GT,SR,SX,TRR,TRS197903-198304

48805BAR SUB-ASSY, REAR STABILIZER

main48805-14020iAE70,TE70..SR197903-198108

D=13

sub48805-14090

main48805-14030iTE71197903-198108

D=14

sub48805-14100

main48805-14090iAE70,KE70,TE71..GT,SR,SX,TRR198108-198304

D=13

main48805-14100iCE70,TE71..SE,SPD,TRS,XL198108-198304

D=14

48815RBUSH, STABILIZER(FOR REAR)

main48815-14050iAE70,TE70..SR197903-198304

main48815-14060iTE71197903-198304

48817RCUSHION, STABILIZER(FOR REAR)

main48817-12010iAE70,KE70,TE71..GT,SR,SX,TRR,TRS198108-198304

main48817-30010iAE70,TE7#..GT,SR,TRR197903-198108

48817SRETAINER, CUSHION, NO.1(FOR STABILIZER REAR BAR)

main90948-02015iAE70,TE7#..GT,SR,TRR197903-198108

T=1.2

main90948-02024iAE70,KE70,TE71..GT,SR,SX,TRR,TRS198108-198304

T=1.2

main90948-02032iAE70,TE7#..GT,SR,TRR197903-198108

T=1.6

48817VRETAINER, CUSHION, NO.2(FOR STABILIZER REAR BAR)

main90948-02025iAE70,KE70,TE71..GT,SR,SX,TRR,TRS198108-198304

T=1.0

48823RCOVER, STABILIZER LINK(FOR REAR)

main48832-22020iCE70;AE70,KE70,TE7#..GT,SR,SX,TRR,TRS197903-198304

48832RBRACKET, REAR STABILIZER BAR, NO.1 RH

main48832-12010iAE70,TE7#..GT,SR,TRR197903-198108

main48832-12011iCE70;AE70,KE70,TE71..GT,SR,SX,TRR,TRS198108-198304

48833RBRACKET, REAR STABILIZER BAR, NO.1 LH

main48833-12010iAE70,TE7#..GT,SR,TRR197903-198108

main48833-12011iCE70;AE70,KE70,TE71..GT,SR,SX,TRR,TRS198108-198304

9010210015

main90102-10015

9017012005

main90170-12005

9112141045

main91121-41045

9116571230

main91165-71230

9161140814

main91611-40814

9161161016

main91611-61016

9161161020

main91611-61020

9161561230

main91615-61230

9411041000

main94110-41000

9414141000

main94141-41000

9418210800

main94182-10800

9418211000

main94182-11000

9418360800

main94183-60800

9418461200

main94184-61200

9451201200

main94512-01200

9453101200

main94531-01200

9538102525

main95381-02525
