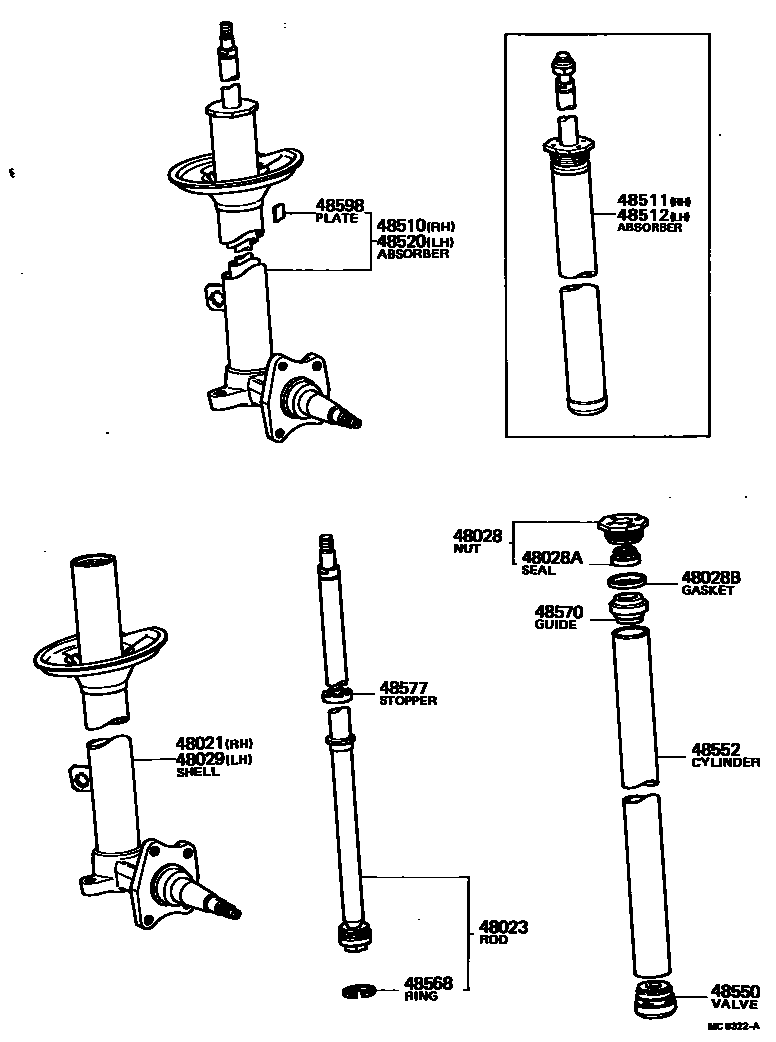

FRONT SPRING & SHOCK ABSORBER

0001 1 0002 1

48021SHELL SUB-ASSY, W/STEERING KNUCKLE, RH

main48021-12130iAE70,KE70197903-198108

main48021-12140iTE7#197903-198108

main48021-12150iAE70,KE70198108-198304

main48021-12160iCE70,TE71198108-198304

48023ROD SUB-ASSY, SHOCK ABSORBER PISTON (FOR FRONT)

main48023-12100iAE70,KE70..DX,SE,SPD,ST,XL197903-198108

main48023-12120iAE70..SR197903-198108

main48023-12130iTE71¥8,900197903-197908

sub48023-12131

main48023-12131iTE71197908-198108

main48023-12151iTE70..SE,ST,XL197908-198108

main48023-12161iTE70..SR197908-198108

main48023-12170iAE70,KE70..DX,SE,SPD,XL¥8,900198108-198304

main48023-12190iAE70,KE70..SR,SX198108-198304

main48023-12210iCE70,TE71..GT,SE,SPD,TRR,XL198108-198304

main48023-12220iTE71..TRS198108-198304

48028NUT SUB-ASSY, SHOCK ABSORBER RING

main48028-10020iAE70,KE70¥2,420197903-198304

sub48028-17010¥2,420

main48028-14011iCE70,TE7#¥2,430197903-198304

sub48028-14012¥2,430

48028ASEAL, OIL(FOR SHOCK ABSORBER RING NUT)

main90316-20006iAE70,KE70¥220197903-198304

main90316-22001iCE70,TE7#¥270197903-198304

48028BGASKET(FOR SHOCK ABSORBER RING NUT)

main90430-36002iAE70,KE70¥250197903-198304

sub90430-37003¥250

main90430-43206iCE70,TE7#¥370197903-198304

48029SHELL SUB-ASSY, W/STEERING KNUCKLE, LH

main48029-12010iAE70,KE70197903-198108

main48029-12020iTE7#197903-198108

main48029-12030iAE70,KE70198108-198304

main48029-12040iCE70,TE71198108-198304

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-12130iAE70,KE70..DX,SE,SPD,ST,XL¥32,800197903-198108

main48510-12150iAE70..SR197903-198108

main48510-12160iTE71¥35,800197903-197908

sub48510-12161

main48510-12161iTE71197908-198108

main48510-12181iTE70..SE,ST,XL¥35,900197908-198108

sub48510-12161

main48510-12191iTE70..SR197908-198108

main48510-12200iAE70,KE70..DX,SE,SPD,XL¥34,800198108-198304

sub48510-12201¥35,000

main48510-12220iAE70,KE70..SR,SX¥34,800198108-198304

sub48510-12200¥34,800

main48510-12240iTE71..TRS198108-198304

main48510-12250iCE70,TE71..GT,SE,SPD,TRR,XL¥35,900198108-198304

48511ABSORBER, SHOCK FRONT, RH(FOR CARTRIDGE TYPE)

main48511-12060iAE70,KE70..DX,SE,SPD,ST,XL¥14,600197903-198108

sub48511-12140¥14,600

main48511-12080iAE70..SR¥14,600197903-198108

sub48511-12140¥14,600

main48511-12090iTE71¥14,600197903-198108

main48511-12110iTE70..SE,ST,XL¥10,900197908-198108

main48511-12120iTE70..SR197908-198108

sub48511-12110¥10,900

48512ABSORBER, SHOCK FRONT, LH(FOR CARTRIDGE TYPE)

main48511-12060iAE70,KE70..DX,SE,SPD,ST,XL¥14,600197903-198108

sub48511-12140¥14,600

main48511-12080iAE70..SR¥14,600197903-198108

sub48511-12140¥14,600

main48511-12090iTE71¥14,600197903-198108

main48511-12110iTE70..SE,ST,XL¥10,900197908-198108

main48511-12120iTE70..SR197908-198108

sub48511-12110¥10,900

48520ABSORBER ASSY, SHOCK, FRONT LH

main48520-12010iAE70,KE70..DX,SE,SPD,ST,XL¥32,800197903-198108

main48520-12020iAE70..SR197903-198108

main48520-12040iTE71¥35,800197903-197908

sub48520-12041¥35,900

main48520-12041iTE71¥35,900197908-198108

main48520-12061iTE70..SE,ST,XL¥35,900197908-198108

sub48520-12041¥35,900

main48520-12071iTE70..SR197908-198108

main48520-12080iAE70,KE70..DX,SE,SPD,XL¥34,800198108-198304

sub48520-12081¥35,000

main48520-12100iAE70,KE70..SR,SX¥34,800198108-198304

sub48520-12080¥34,800

main48520-12120iTE71..TRS198108-198304

sub48520-12130¥35,900

main48520-12130iCE70,TE71..GT,SE,SPD,TRR,XL¥35,900198108-198304

48550VALVE ASSY, SHOCK ABSORBER BASE

main48550-12100iAE70,KE70¥3,000197903-198108

sub48550-12019¥3,330

main48550-12150iTE70197908-198108

main48550-12170iCE70,TE71¥3,000198108-198304

sub48550-14060¥3,320

main48550-12180iAE70,KE70..SR,SX198108-198304

main48550-12190iAE70,KE70..DX,SE,SPD,XL¥3,000198108-198304

main48550-22050iTE71197908-198108

48552CYLINDER, SHOCK ABSORBER(FOR FRONT)

main48552-12030iCE70,TE7#¥1,270197903-198304

main48552-12040iAE70,KE70197903-198304

48568RING, SHOCK ABSORBER PISTON

main48568-12010iAE70,KE70¥250197903-198108

main48568-12020iAE70,KE70¥760198108-198304

main48568-14010iTE71¥220197903-197908

main48568-22020iCE70,TE7#¥760197908-198304

48570GUIDE ASSY, SHOCK ABSORBER ROD

main48022-10020iAE70,KE70¥1,970197903-198304

main48022-14010iCE70,TE7#¥2,320197903-198304

sub48022-22040¥2,290

sub90430-42001¥310

48577STOPPER, SHOCK ABSORBER REBOUND

main48577-10010iAE70,KE70¥310197903-198304

main48579-14011iCE70,TE7#¥300197903-198304

48598PLATE, ABSORBER NAME

main48598-12150iAE70,KE70..DX,SE,SPD,ST,XL197903-198108

RH

main48598-12160iAE70,KE70..DX,SE,SPD,ST,XL197903-198108

LH

main48598-12170iAE70..SR197903-198108

RH

main48598-12180iAE70..SR197903-198108

LH

main48598-12210iTE71197903-197908

RH

main48598-12211iTE71197908-198108

RH

main48598-12220iTE71197903-197908

LH

main48598-12221iTE71197908-198108

LH

main48598-12251iTE70..SE,ST,XL197908-198108

RH

main48598-12261iTE70..SE,ST,XL197908-198108

LH

main48598-12271iTE70..SR197908-198108

RH

main48598-12281iTE70..SR197908-198108

LH

main48598-12290iAE70,KE70..DX,SE,SPD,XL198108-198304

RH

main48598-12300iAE70,KE70..DX,SE,SPD,XL198108-198304

LH

main48598-12330iAE70,KE70..SR,SX198108-198304

RH

main48598-12340iAE70,KE70..SE,SR198108-198304

LH

main48598-12370iTE71..TRS198108-198304

RH

main48598-12380iTE71..TRS198108-198304

LH

main48598-12390iCE70,TE71..GT,SE,SPD,TRR,XL198108-198304

RH

main48598-12400iCE70,TE71..GT,SE,SPD,TRR,XL198108-198304

LH

16 parts on this diagram · 2 diagrams in section
