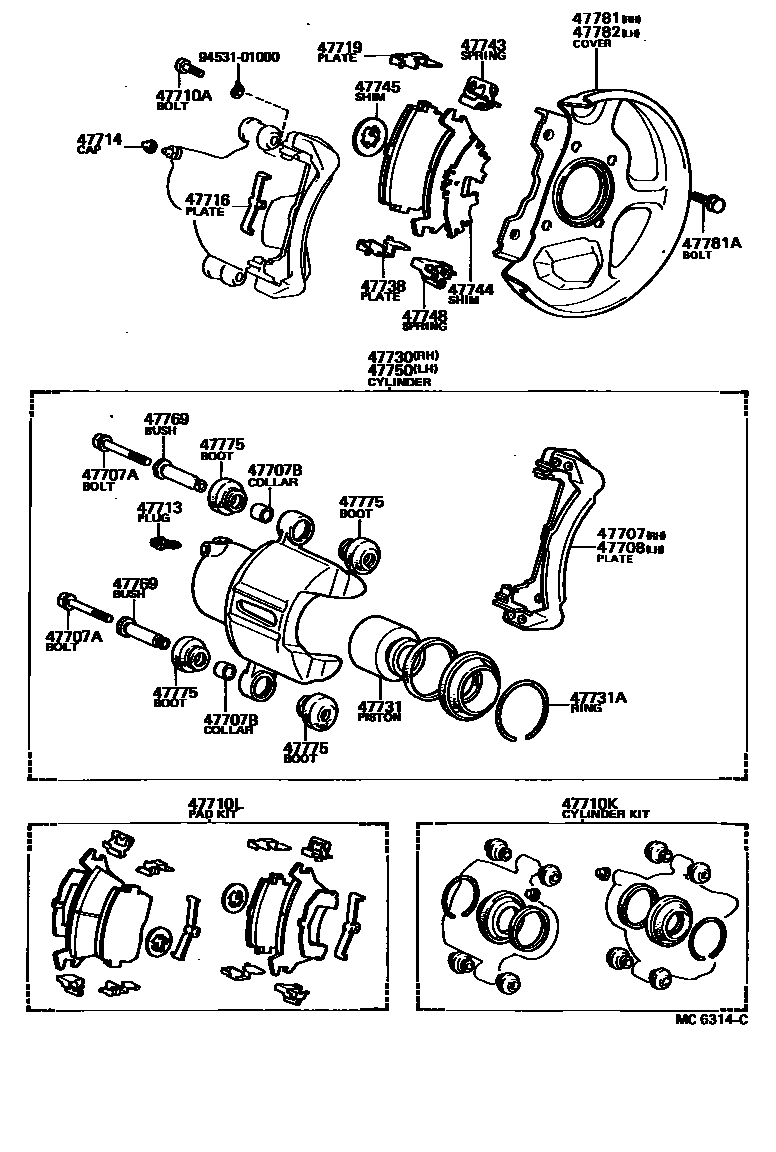

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1 0003 1

47707PLATE SUB-ASSY, DISC BRAKE TORQUE, FRONT RH

main47707-12020iAE70,KE70197903-198304

sub47707-12070

main47707-12030iCE70,TE7#197903-198304

47707ABOLT, HEXAGON(FOR FRONT DISC BRAKE TORQUE PLATE)

main90101-08031iAE70,KE70197903-197905

sub90119-08217

main90119-08199iCE70,TE7#197903-198304

main90119-08217iAE70,KE70197905-198304

47707BCOLLAR(FOR FRONT DISC BRAKE TORQUE PLATE)

main90387-13002iAE70,KE70197903-198304

47708PLATE SUB-ASSY, DISC BRAKE TORQUE, FRONT LH

main47707-12020iAE70,KE70197903-198304

sub47707-12070

main47708-12020iCE70,TE7#197903-198304

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90101-10020iAE70,KE70197903-198304

main90101-12332iCE70,TE7#197903-198304

47710KCYLINDER KIT, DISC BRAKE, FRONT

main04479-12060iCE70,TE7#197903-198304

sub04479-12100

main04479-16010iAE70,KE70197903-198304

47710LPAD KIT, DISC BRAKE, FRONT

main04491-12110iAE70,KE70197903-198304

sub04491-12112

main04491-12120iTE7#197903-198108

sub04491-12160

main04491-12160iCE70,TE71198108-198304

sub04491-12161

47713PLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-20010iAE70,CE70,KE70,TE7#197903-198304

47714CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010iAE70,CE70,KE70,TE7#197903-198304

47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)

main47716-10010iAE70,KE70197903-198304

sub47716-10020

main47716-14020iCE70,TE7#197903-198304

47719PLATE, FRONT DISC BRAKE PAD GUIDE

main47719-10030iAE70,KE70197903-198304

sub47736-10010

main47736-12010iCE70,TE7#197903-198304

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-12090iAE70,KE70197903-198304

sub47730-12260

main47730-12100iCE70,TE7#197903-198304

sub47730-12240

47731PISTON, FRONT DISC BRAKE

main47731-12040iAE70,KE70197903-198304

main47731-12050iCE70,TE7#197903-198304

47731ARING, SET(FOR FRONT DISC BRAKE PISTON)

main90522-54038iCE70,TE7#197903-198304

sub90522-58001

main90522-56001iAE70,KE70197903-198304

47738PLATE, DISC BRAKE PAD GUIDE, NO.2

main47738-10010iAE70,KE70197903-198304

sub47738-10020

47743SPRING, ANTI-RATTLE, NO.2(FOR FRONT DISC BRAKE)

main47743-10010iAE70,KE70197903-198304

sub47743-10020

main47743-12010iCE70,TE7#197903-198304

LH

main47748-12050iCE70,TE7#197903-198304

RH

47744SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE)

main47744-12040iCE70,TE7#197903-198304

main47744-12060iAE70,KE70197903-198304

47745SHIM, ANTI-SQUEAL, NO.2(FOR FRONT DISC BRAKE)

main47745-10010iAE70,KE70197903-198304

sub47745-10020

47748SPRING, ANTI-RATTLE, NO.1(FOR FRONT DISC BRAKE)

main47743-12020iCE70,TE7#197903-198304

RH=UPR,LH=LWR

main47748-10030iAE70,KE70197903-198304

sub47748-10040

main47748-12060iCE70,TE7#197903-198304

RH=LWR,LH=UPR

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-12090iAE70,KE70197903-198304

sub47750-12260

main47750-12100iCE70,TE7#197903-198304

sub47750-12240

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-10020iAE70,KE70197903-198304

main47769-12010iTE7#197903-198108

sub47769-28H02

main47769-14010iCE70,TE71198108-198304

sub47769-28H00

sub47769-28H01

47775BOOT, BUSH DUST(FOR FRONT DISC BRAKE)

main47775-12010iTE7#197903-198108

main47775-14010iCE70,TE71198108-198304

main47775-16010iAE70,KE70197903-198304

47781COVER, DISC BRAKE DUST, FRONT RH

main47703-12060iAE70,KE70197903-198304

main47703-12070iCE70,TE7#197903-198304

47781ABOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)

main90119-10082iAE70,KE70197903-198111

sub90119-10804

main90119-10157iAE70,KE70198111-198304

main91111-71020iCE70,TE7#197903-198304

47782COVER, DISC BRAKE DUST, FRONT LH

main47704-12060iAE70,KE70197903-198304

main47704-12070iCE70,TE7#197903-198304

9453101000

main94531-01000

26 parts on this diagram · 3 diagrams in section
